CARBURETOR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

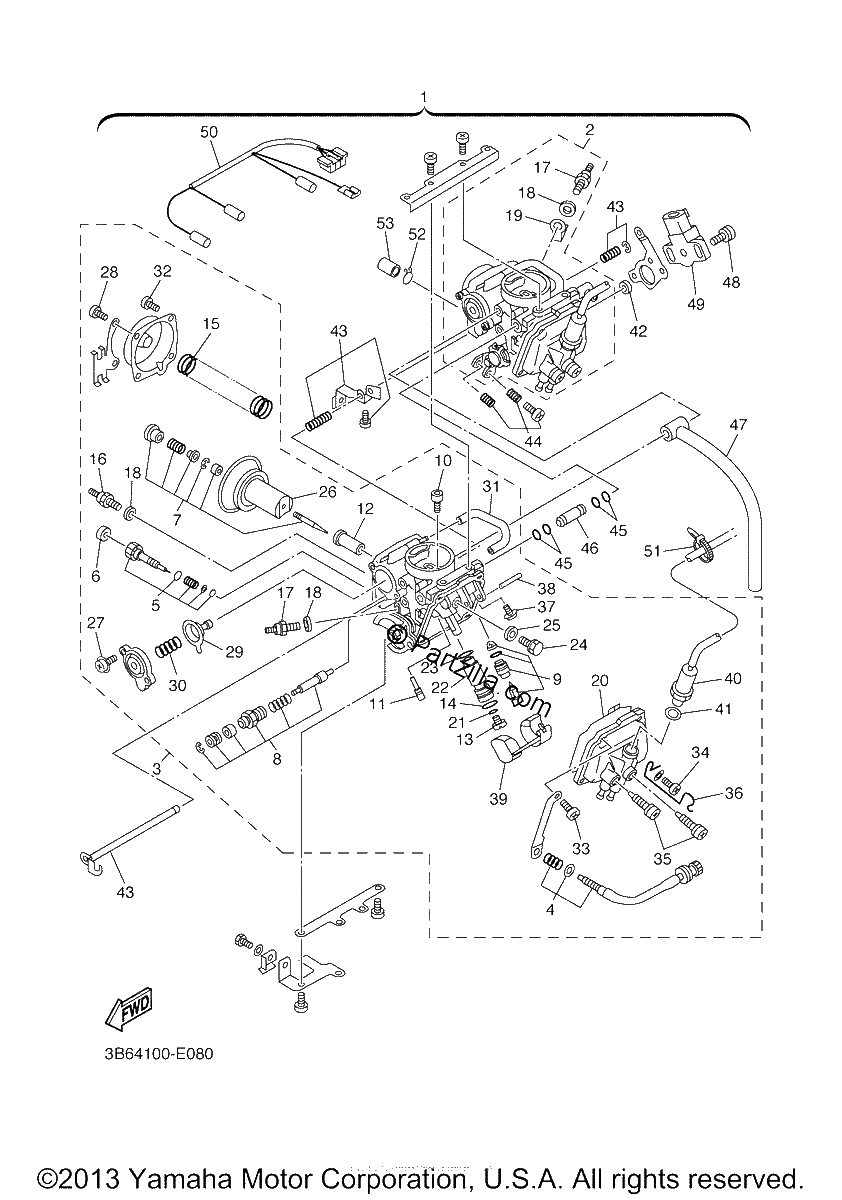

Diagrama de CARBURETOR

Repuestos

#0
5SC-1410H-10-00
FUEL CUT SOLENOID VALVE | UR (#1) REAR
$341.40¢170 700
1
#0
5SC-14906-20-00
CARBURETOR ASSY
$2254.99¢1 127 494
1
#1
5SC-14900-20-00
CARBURETOR ASSY | FOR CALIFORNIA
$2361.24¢1 180 619
1
#2
5SC-14901-20-00
CARBURETOR ASSY 1 | (#1) REAR
$1232.49¢616 244
1
#3
5SC-14902-20-00
CARBURETOR ASSY 2 | (#2) FRONT
$1342.49¢671 244
1
#4
4TR-14103-00-00
THROTTLE SCREW SET | (#2) FRONT
$105.55¢52 775
1
#5
4TR-14105-00-00
PILOT SCREW SET
$29.39¢14 694
1
#6
3F9-14118-00-00
CAP
$8.97¢4 488
1
#7
5BN-1490J-00-00
NEEDLE SET
$35.92¢17 963
1
#8
4DN-1410A-01-00
STARTER SET
$83.26¢41 631
1
#9
3CF-14107-10-00
NEEDLE VALVE SET
$37.81¢18 906
1
#10
1HX-14231-20-00
JET,PILOT AIR (#100)
$13.90¢6 950
1
#11
4KM-14142-20-00
JET, PILOT (#20)
$9.70¢4 850
1
#12
3DM-1414M-34-00
NOZZLE, MAIN
$36.88¢18 438
1
#13
3G2-1414E-36-00
JET, MAIN (#91.3)
$12.38¢6 188
1
#14
8F2-14147-00-00
O-RING
$3.38¢1 688
1
#15
4VR-14933-00-00
SPRING, DIAPHRAGM
$14.24¢7 119
1
#16
5FU-83790-00-00
HEATER ASSY (15W)
$32.84¢16 419
1
#17
5FU-83790-10-00
HEATER ASSY (20W)
$43.49¢21 744
1
#18
90201-08016-00
WASHER, PLATE | FOR CALIFORNIA
$7.43¢3 713
1
#19
4DH-82103-00-00
TERMINAL 1 | (#1) REAR
$12.94¢6 469
1
#20
1HX-14147-00-00
O-RING
$18.90¢9 450
1
#21
1AE-14227-00-00
O-RING
$10.39¢5 194
1
#22
5SC-14261-00-00
HOLDER
$42.55¢21 275
1
#23
1AE-14237-00-00
GASKET
$7.60¢3 800
1
#24
1HX-14565-00-00
SCREW
$20.20¢10 100
1
#25
137-14153-00-00
WASHER, MAIN JET
$7.69¢3 844
1
#26
4TR-14940-00-00
DIAPHRAGM ASSY
$210.89¢105 444
1
#27
98517-04012-00
SCREW, PAN HEAD
$3.89¢1 944
1
#28
3KW-14486-00-00
SCREW, ROD | (#2) FRONT
$7.70¢3 850
1
#29
22V-14940-00-00
DIAPHRAGM ASSY
$85.59¢42 794
1
#30
5SC-14275-00-00
SPRING
$4.15¢2 075
1
#31
4TR-14348-00-00
PIPE 1
$51.69¢25 844
1
#32
98507-04008-00
SCREW, PAN HEAD | UR (#2) FRONT
$1.72¢862
1
#33
98707-04014-00
SCREW, FLAT HEAD | UR (#2) FRONT
$8.18¢4 088
1
#34
4VR-24453-00-00
SCREW
$7.95¢3 975
1
#35
5LW-14191-00-00
PLUG, DRAIN
$11.31¢5 656
1
#36
4TR-14937-00-00
CLIP | (#2) FRONT
$22.31¢11 156
1
#37
1FN-14565-00-00
SCREW
$7.65¢3 825
1
#38
353-14186-00-00
PIN, FLOAT
$8.03¢4 013
1
#39
1HX-14985-00-00
FLOAT
$87.00¢43 500
1
#39
5GK-1491A-00-00
CAP
$10.66¢5 331
1
#40
5SC-1410H-00-00
FUEL CUT SOLENOID VALVE | UR (#2) FRONT
$335.72¢167 862
1
#41
256-14956-01-00
WASHER
$7.70¢3 850
1
#42
4HM-14239-00-00
SEAL
$16.32¢8 163
1
#43
4TR-1490L-00-00
STARTER LEVER SET, 1
$116.88¢58 438
1
#44
3KW-1490K-00-00
STOP SCREW SET
$28.08¢14 038
1
#45
36Y-14147-00-00
O-RING
$6.03¢3 013
1
#46
1WG-14251-00-00
NIPPLE
$44.49¢22 244
1
#47
4TR-14987-00-00
HOSE
$64.94¢32 469
1
#48
4KM-24453-00-00
SCREW
$5.96¢2 981
1
#49
4NK-85885-00-00
THROTTLE POSITION SENSOR ASS
$396.97¢198 487
1
#50
5SC-81517-00-00
WIRE, SUB LEAD
$42.69¢21 344
1
#51
35H-14139-00-00
CLIP, PIPE
$5.58¢2 788
1
#52
55X-14937-00-00
CLIP
$7.88¢3 938
1
