SEAT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

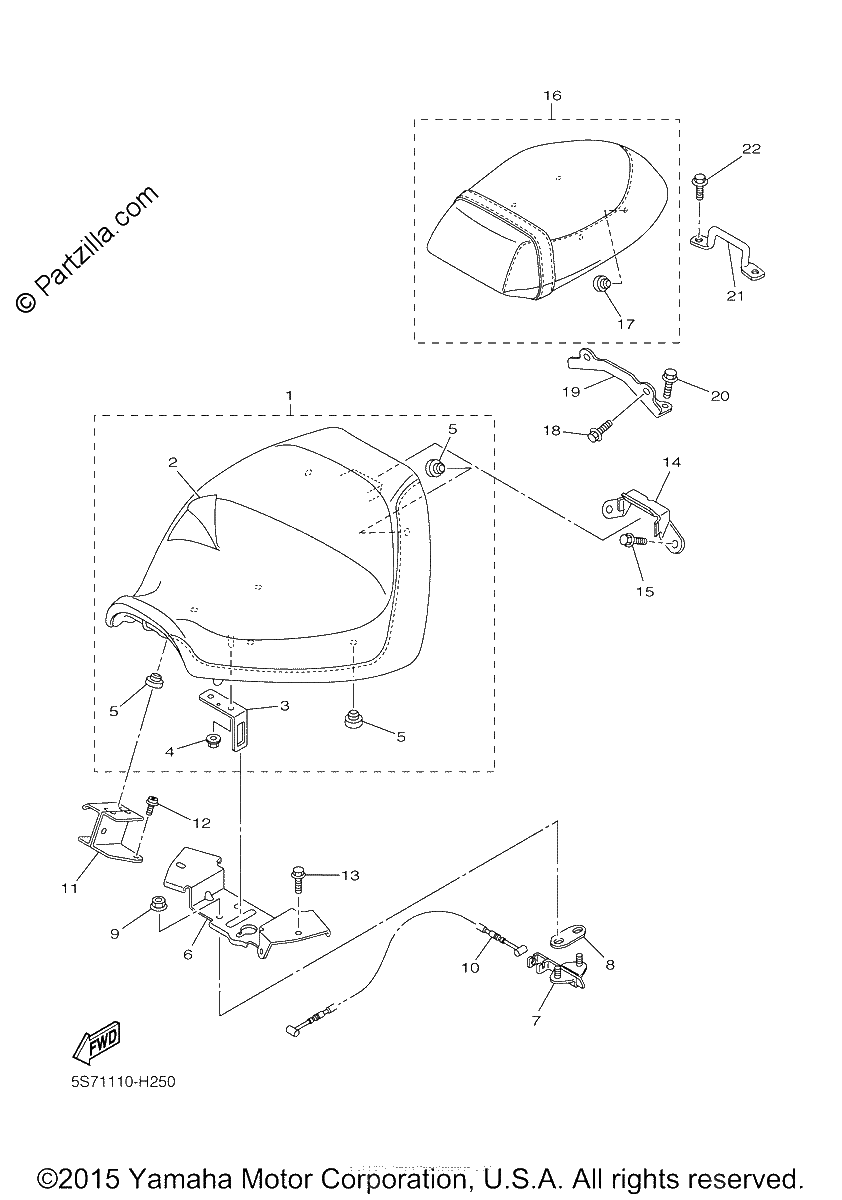

Diagrama de SEAT

Repuestos

#1
5S7-24710-01-00
SINGLE SEAT ASSY
$297.82¢148 908
1
#2
5S7-2470F-00-00
SEAT COVER COMP.
$150.88¢75 440
1
#3
4NK-24728-00-00
BRACKET, SEAT
$10.55¢5 273
1
#4
95780-06500-00
NUT, FLANGE
$2.16¢1 081
1
#5
22W-24741-00-00
PAD, SEAT
$8.45¢4 226
1
#6
5S7-21341-00-00
BRACKET, SEAT 1
$29.55¢14 777
1
#7
4BP-24780-00-00
SEAT LOCK ASSY
$104.11¢52 055
1
#8
4BP-24792-00-00
PLATE
$9.79¢4 893
1
#9
95780-06500-00
NUT, FLANGE
$2.16¢1 081
1
#10
5S7-2478E-00-00
CABLE, SEAT LOCK
$17.39¢8 694
1
#11
5S7-2475J-00-00
BRACKET, SEAT LEVER 2
$8.45¢4 226
1
#12
90110-06245-00
BOLT, HEXAGON SOCKET HEAD
$6.87¢3 433
1
#13
95817-06012-00
BOLT, FLANGE (replaces 95827-06012-00)
$1.64¢822
1
#14
5S7-2475N-00-00
BRACKET
$13.67¢6 837
1
#15
95022-08012-00
BOLT, FLANGE
$10.41¢5 204
1
#16
5S7-24750-01-00
TANDEM SEAT ASSY
$261.49¢130 743
1
#17
22W-24741-00-00
PAD, SEAT
$8.45¢4 226
1
#18
95022-08012-00
BOLT, FLANGE
$10.41¢5 204
1
#19
1D7-2475H-00-00
BRACKET, SEAT LEVER 1
$17.39¢8 694
1
#20
95022-08012-00
BOLT, FLANGE
$10.41¢5 204
1
#21
5S7-2475R-00-00
BRACKET 6
$16.50¢8 251
1
#22
95022-08012-00
BOLT, FLANGE
$10.41¢5 204
1
