SEAT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

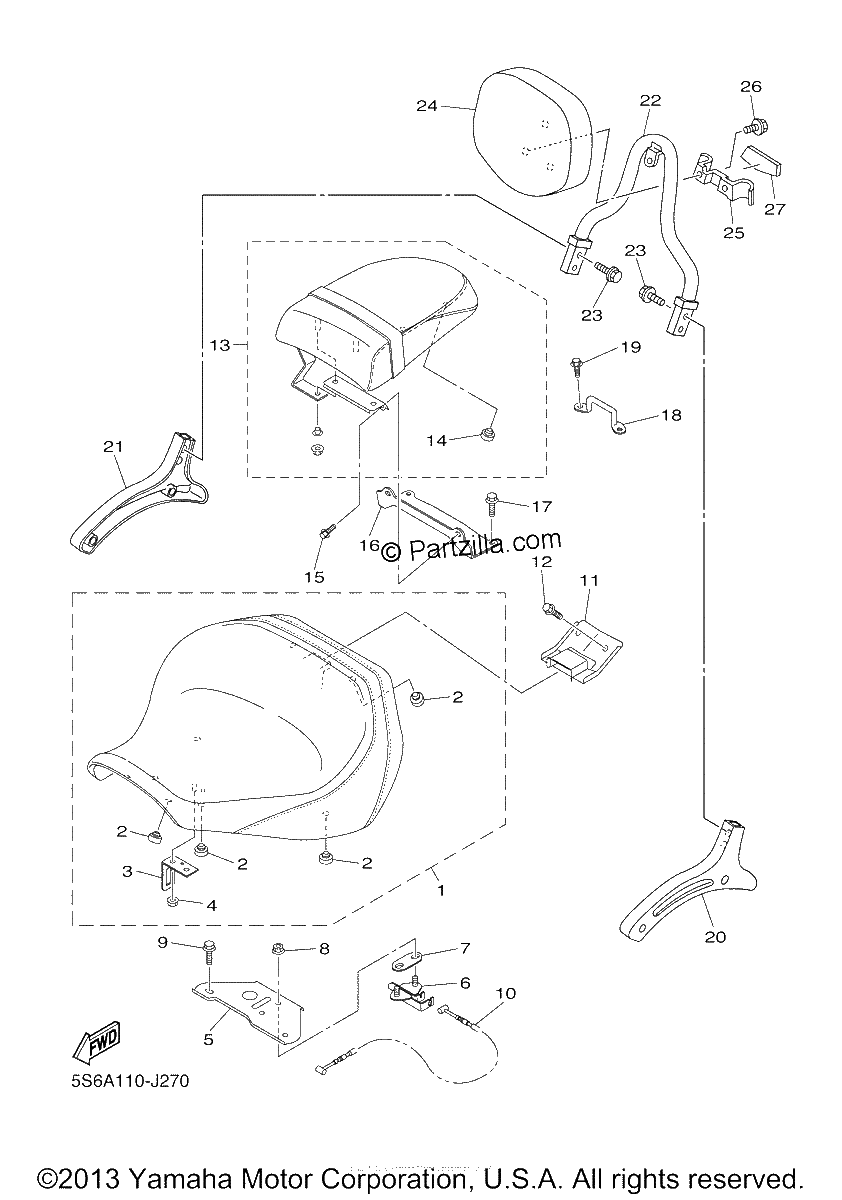

Diagrama de SEAT

Repuestos

#1
3D8-24710-10-00
SINGLE SEAT ASSY
$337.82¢168 913
1
#2
22W-24741-00-00
PAD, SEAT
$9.19¢4 594
1
#3
4NK-24728-00-00
BRACKET, SEAT
$11.46¢5 731
1
#4
95604-06200-00
NUT-U (replaces 95602-06200-00)
$2.80¢1 400
1
#5
3D8-21341-01-00
BRACKET, SEAT 1
$15.10¢7 550
1
#6
4BP-24780-00-00
SEAT LOCK ASSY
$113.16¢56 581
1
#7
4BP-24792-00-00
PLATE
$10.64¢5 319
1
#8
95702-06500-00
NUT, FLANGE
$2.44¢1 219
1
#9
95817-06014-00
BOLT, FLANGE (replaces 95802-06014-00)
$2.65¢1 325
1
#10
5PX-2478E-00-00
CABLE, SEAT LOCK
$21.20¢10 600
1
#11
3D8-2475N-00-00
BRACKET
$31.27¢15 638
1
#12
92012-08012-00
BOLT, BUTTON HEAD
$7.56¢3 781
1
#13
3D8-24750-01-00
TANDEM SEAT ASSY
$292.82¢146 413
1
#14
22W-24741-00-00
PAD, SEAT
$9.19¢4 594
1
#15
95022-08012-00
BOLT, FLANGE
$11.31¢5 656
1
#16
1D7-2475H-00-00
BRACKET, SEAT LEVER 1
$18.90¢9 450
1
#17
95022-08012-00
BOLT, FLANGE
$11.31¢5 656
1
#18
3D8-2475R-00-00
BRACKET 6
$18.56¢9 281
1
#19
95022-08012-00
BOLT, FLANGE
$11.31¢5 656
1
#20
5S6-2164A-00-00
GRIP 1
$334.07¢167 038
1
#21
5S6-2164E-00-00
GRIP 2
$334.07¢167 038
1
#22
5S6-2164F-00-00
STAY 1
$380.70¢190 350
1
#23
95024-08012-00
BOLT, FLANGE (SMALL HEAD)
$7.34¢3 669
1
#24
5GA-2840F-20-00
BACK REST ASSY
$267.24¢133 619
1
#25
5GA-2164G-00-00
STAY 2
$150.74¢75 369
1
#26
95024-06010-00
BOLT, FLANGE (SMALL HEAD)
$5.02¢2 512
1
#27
5GA-24786-01-00
EMBLEM
$54.59¢27 294
1
