CRANKSHAFT PISTON

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

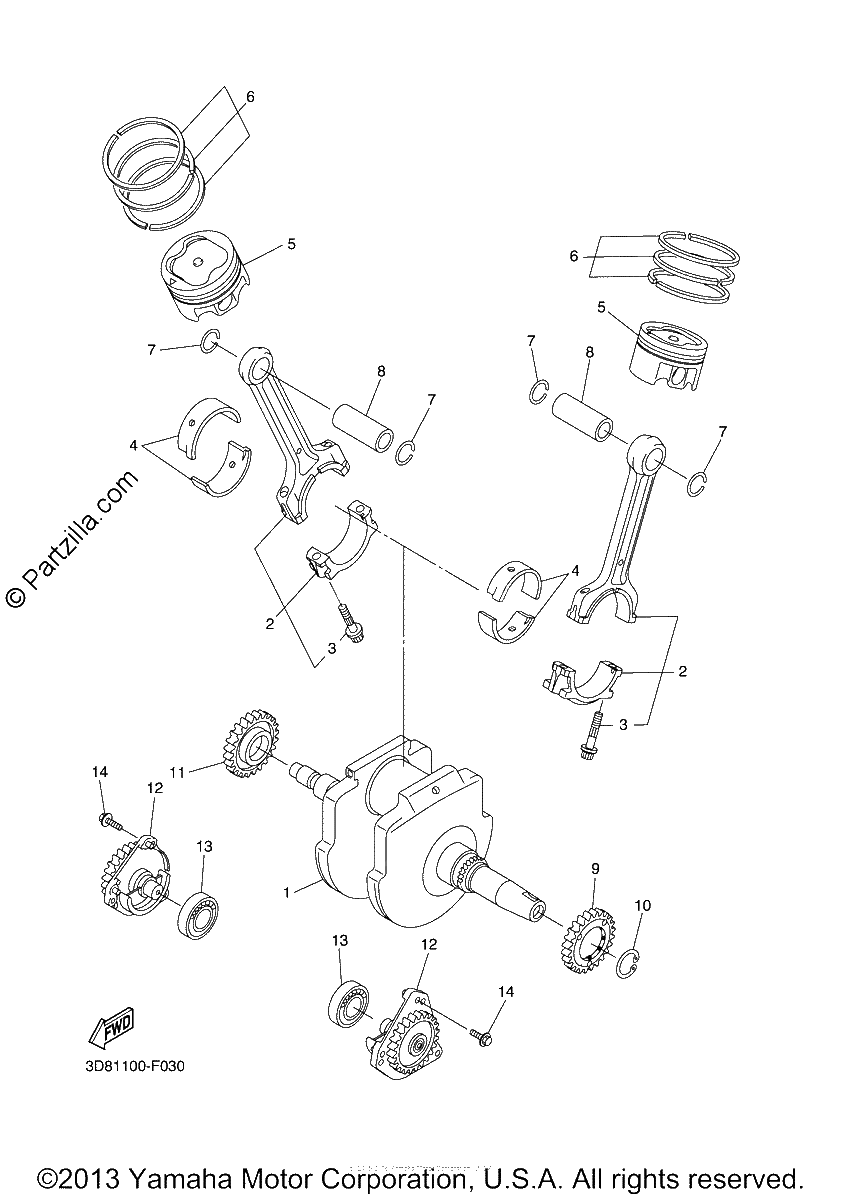

Diagrama de CRANKSHAFT PISTON

Repuestos

#0
5YU-11656-00-00
PLANE BEARING, CONNECTING ROD | UR BLUE
$17.69¢8 844
1
#0
5YU-11656-40-00
PLANE BEARING, CONNECTING ROD | UR YELLOW
$16.38¢8 188
1
#0
5YU-11656-20-00
PLANE BEARING, CONNECTING ROD | UR BROWN
$16.53¢8 263
1
#0
5YU-11656-10-00
PLANE BEARING, CONNECTING ROD | UR BLACK
$17.56¢8 780
1
#1
3D8-11400-01-00
CRANKSHAFT ASSY
$671.59¢335 794
1
#2
3D8-11650-00-00
CONNECTING ROD ASSY
$224.58¢112 292
1
#3
5YU-11654-00-00
BOLT, CONNECTING ROD
$7.82¢3 910
1
#4
5YU-11656-30-00
PLANE BEARING, CONNECTING ROD | UR GREEN
$17.12¢8 562
1
#5
3D8-11631-00-00
PISTON (STD)
$181.03¢90 516
1
#6
1D7-11610-00-00
PISTON RING SET (STD)
$51.32¢25 662
1
#7
93450-24154-00
CIRCLIP
$3.14¢1 570
1
#8
5VK-11633-00-00
PIN, PISTON
$40.01¢20 004
1
#9
3D8-11530-00-00
BALANCER WEIGHT GEAR COMP.
$200.30¢100 148
1
#10
99009-40400-00
CIRCLIP
$4.00¢2 001
1
#11
3D8-11543-00-00
GEAR,1
$122.84¢61 421
1
#12
3D8-11500-00-00
BALANCER ASSY
$319.16¢159 580
1
#13
93306-20458-00
BEARING
$40.78¢20 390
1
#14
90109-06015-00
BOLT
$4.38¢2 191
1
