CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

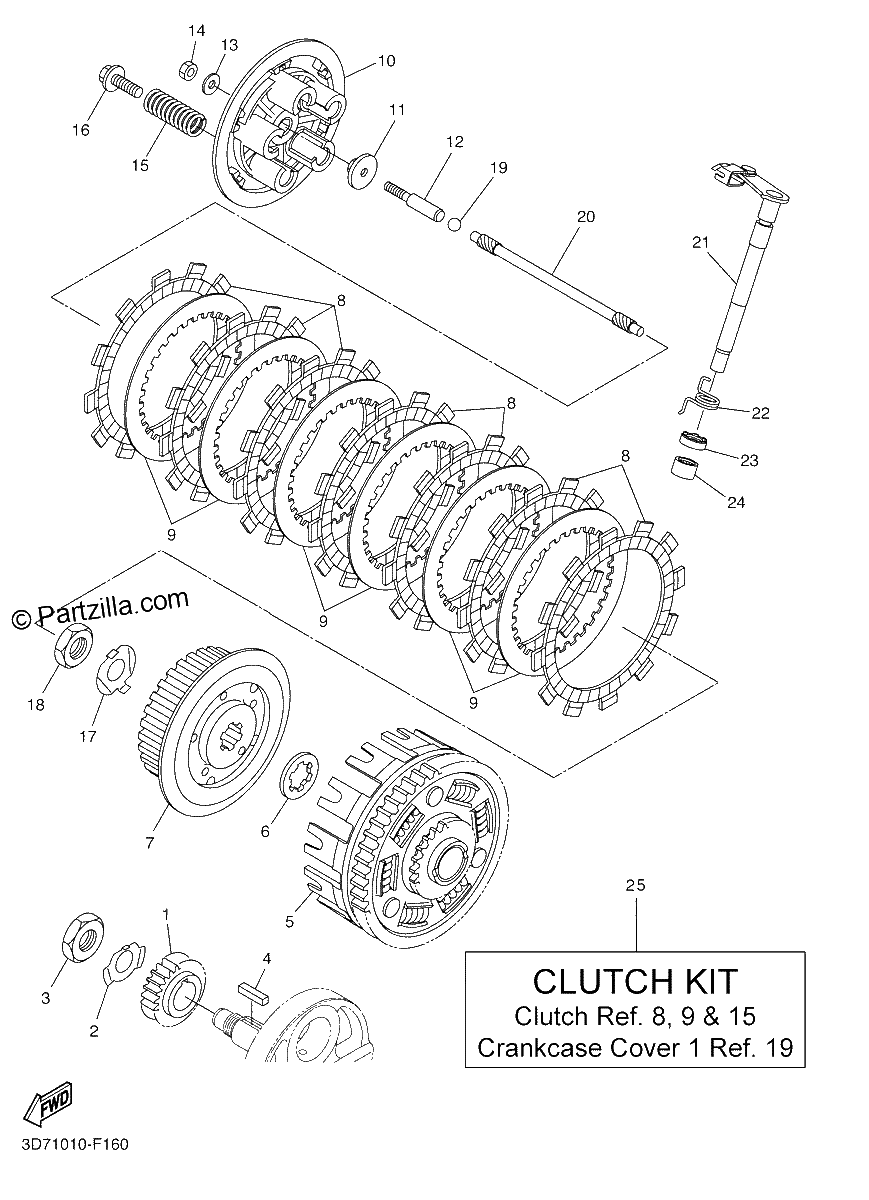

Diagrama de CLUTCH

Repuestos

#1
3D7-16111-00-00
GEAR, PRIMARY DRIVE
$80.40¢40 200
1
#2
90215-16001-00
WASHER, LOCK
$5.34¢2 669
1
#3
90170-16343-00
NUT
$16.27¢8 137
1
#4
90282-05009-00
KEY, STRAIGHT
$6.51¢3 256
1
#5
3D7-16150-00-00
PRIMARY DRIVEN GEAR COMP.
$588.52¢294 263
1
#6
30X-16154-00-00
PLATE, THRUST 1
$28.15¢14 075
1
#7
3D7-16371-00-00
BOSS, CLUTCH
$147.60¢73 800
1
#8
3XJ-16321-00-00
PLATE, FRICTION
$23.64¢11 819
1
#9
3XJ-16324-01-00
PLATE, CLUTCH 1
$14.60¢7 300
1
#10
3D7-16351-00-00
PLATE, PRESSURE 1
$78.22¢39 113
1
#11
1W1-16358-01-00
PLATE, PUSH
$23.89¢11 944
1
#12
3D7-16356-00-00
ROD, PUSH 1
$17.80¢8 900
1
#13
92902-06200-00
WASHER
$0.96¢481
1
#14
95302-06600-00
NUT, HEXAGON
$5.05¢2 525
1
#15
90501-23391-00
SPRING, COMPRESSION
$6.76¢3 381
1
#16
90159-06010-00
SCREW, WITH WASHER
$7.80¢3 900
1
#17
90215-16289-00
WASHER, LOCK
$7.30¢3 650
1
#18
90170-16326-00
NUT
$13.11¢6 556
1
#19
93511-32027-00
BALL
$7.34¢3 669
1
#20
3D7-16357-00-00
ROD, PUSH 2
$37.79¢18 894
1
#21
3D7-16380-00-00
PUSH LEVER ASSY
$102.94¢51 469
1
#22
90508-18052-00
SPRING, TORSION
$6.50¢3 250
1
#23
93102-12004-00
OIL SEAL
$11.31¢5 656
1
#24
93317-11295-00
BEARING
$47.73¢23 863
1
#25
2CF-W001G-00-00
Clutch Plate Kit
$187.25¢93 625
1
