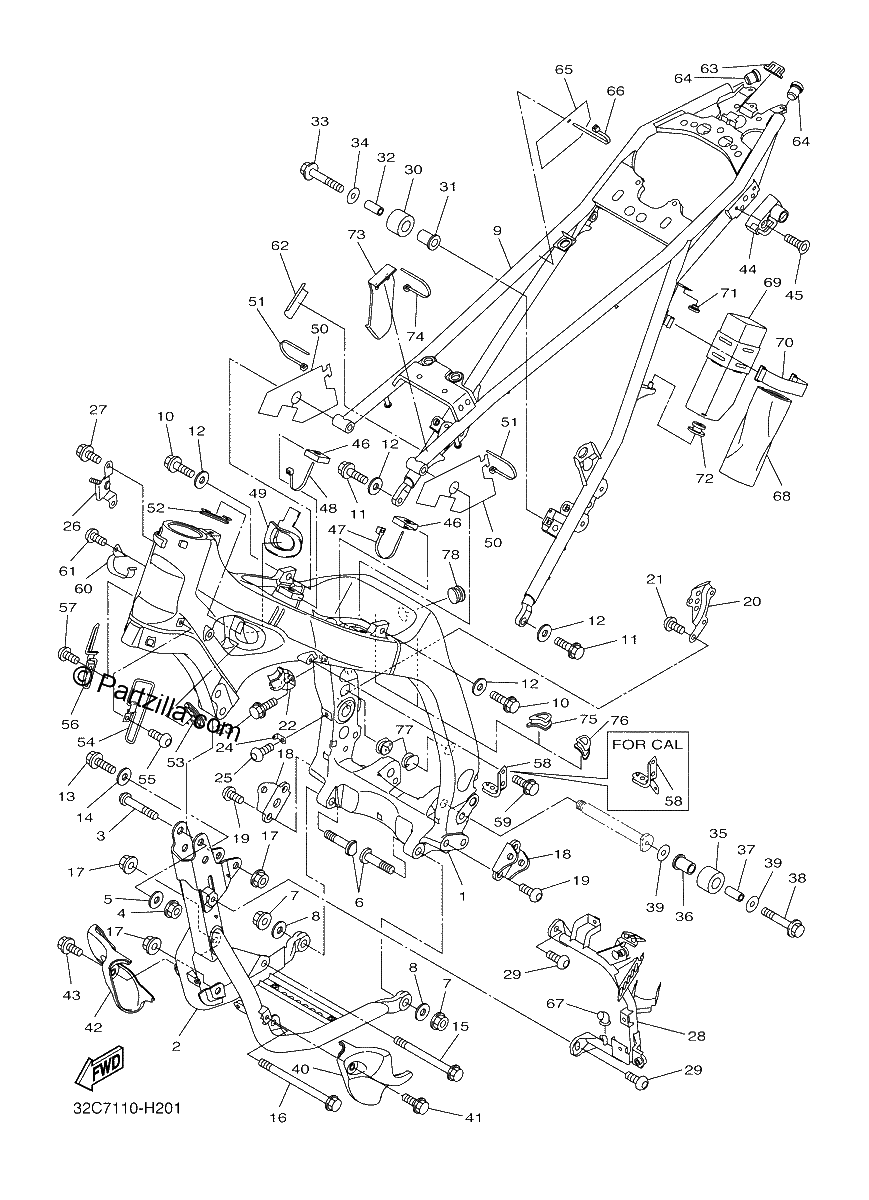

FRAME
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRAME COMP.
$2784.14¢1 392 069
#2
DOWNTUBE COMP.
$503.72¢251 861
#3
bolt
$9.06¢4 531
#4
NUT,SPEC'L SHAPE (replaces 90179-12248-00)
$5.82¢2 909
#5
WASHER, plate
$6.53¢3 266
#6
BOLT, ENGINE MOUNTIN
$10.07¢5 037
#7
NUT,SPEC'L SHAPE (replaces 90179-12248-00)
$5.82¢2 909
#8
WASHER, plate
$6.53¢3 266
#9
REAR FRAME COMP.
$1010.84¢505 419
#10
BOLT, FLANGE
$4.94¢2 472
#11
Bolt, Flange
$6.83¢3 415
#12
WASHER
$6.14¢3 070
#13
BOLT, WASHER BASED
$10.81¢5 405
#14
WASHER, plate
$2.44¢1 219
#15
Bolt, Flange
$8.80¢4 399
#16
Bolt, Flange
$12.49¢6 244
#17
NUT,SPEC'L SHAPE
$8.49¢4 244
#18
BRACKET, FOOTREST
$17.50¢8 752
#19
SCREW
$5.97¢2 984
#20
BRACKET, MASTER CYLI
$16.47¢8 234
#21
BOLT, BUTTON HEAD
$6.96¢3 479
#22
BRACKET, STOP SWITCH
$24.38¢12 190
#23
BOLT, FLANGE
$5.97¢2 984
#24
Bolt, Flange
$4.05¢2 024
#25
BOLT, BUTTON HEAD
$2.68¢1 340
#26
BRACKET, RADIATOR
$16.85¢8 424
#27
BOLT, FLANGE
$3.29¢1 644
#28
STAY, SIDE COVER 1
$199.25¢99 624
#29
BOLT,HEX. SOCKET BUTTON
$7.30¢3 651
#30
TENSIONER
$24.31¢12 156
#31
Bush
$7.38¢3 691
#32
Collar
$6.92¢3 461
#33
BOLT, FLANGE
$6.75¢3 375
#34
WASHER, PLATE
$5.21¢2 605
#35
TENSIONER
$34.55¢17 273
#36
Bush
$7.38¢3 691
#37
Collar
$6.92¢3 461
#38
BOLT, FLANGE
$6.75¢3 375
#39
WASHER, PLATE
$5.21¢2 605
#40
GUARD, ENGINE 1
$16.84¢8 418
#41
BOLT,WITH WASHER
$5.75¢2 875
#42
GUARD, ENGINE 2
$16.84¢8 418
#43
BOLT,WITH WASHER
$5.75¢2 875
#44
HELMET HANGER ASSY
$80.04¢40 020
#45
SCREW, COUNTERSUNK
$5.34¢2 668
#46
Damper
$3.93¢1 967
#47
BAND
$6.95¢3 473
#48
BAND
$7.68¢3 841
#49
Cover
$17.04¢8 522
#50
COVER 2
$7.50¢3 749
#51
CLAMP
$2.55¢1 277
#52
COVER 3
$7.67¢3 835
#53
COVER 4
$8.31¢4 157
#54
GUIDE, CABLE
$23.30¢11 650
#55
BOLT, BUTTON HEAD
$3.36¢1 679
#56
GUIDE, WIRE
$23.34¢11 673
#57
BOLT, BUTTON HEAD
$3.36¢1 679
#58
HOLDER, CABLE
$294.03¢147 016
#59
BOLT,FLANGE(4MY)
$2.71¢1 357
#60
HOLDER, CLUTCH CABLE
$11.43¢5 716
#61
BOLT, BUTTON HEAD
$3.36¢1 679
#62
LABEL, BRAKE FLUID
$11.36¢5 681
#63
Damper
$6.99¢3 496
#64
PLUG,SPEC'L SHAPE
$10.87¢5 434
#65
COVER, REAR FENDER 1 This item has been discontinued and may not be available. Contact us for more information.
No Disponible
#66
BAND
$7.68¢3 841
#67
GROMMET This item has been discontinued and may not be available. Contact us for more information.
$8.80¢4 399
#68
Tool Kit
$65.25¢32 625
#69
TOOL BOX COMP.
$26.59¢13 294
#70
BAND, BATTERY
$17.58¢8 792
#71
PLUG,SPEC'L SHAPE
$6.36¢3 180
#72
Grommet
$7.44¢3 720
#73
Cover
$8.96¢4 479
#74
BAND
$7.68¢3 841
#75
COVER 5
$8.73¢4 364
#76
COVER 6
$8.76¢4 382
#77
COVER 8
$4.69¢2 346
#78
PLUG
$6.87¢3 433
