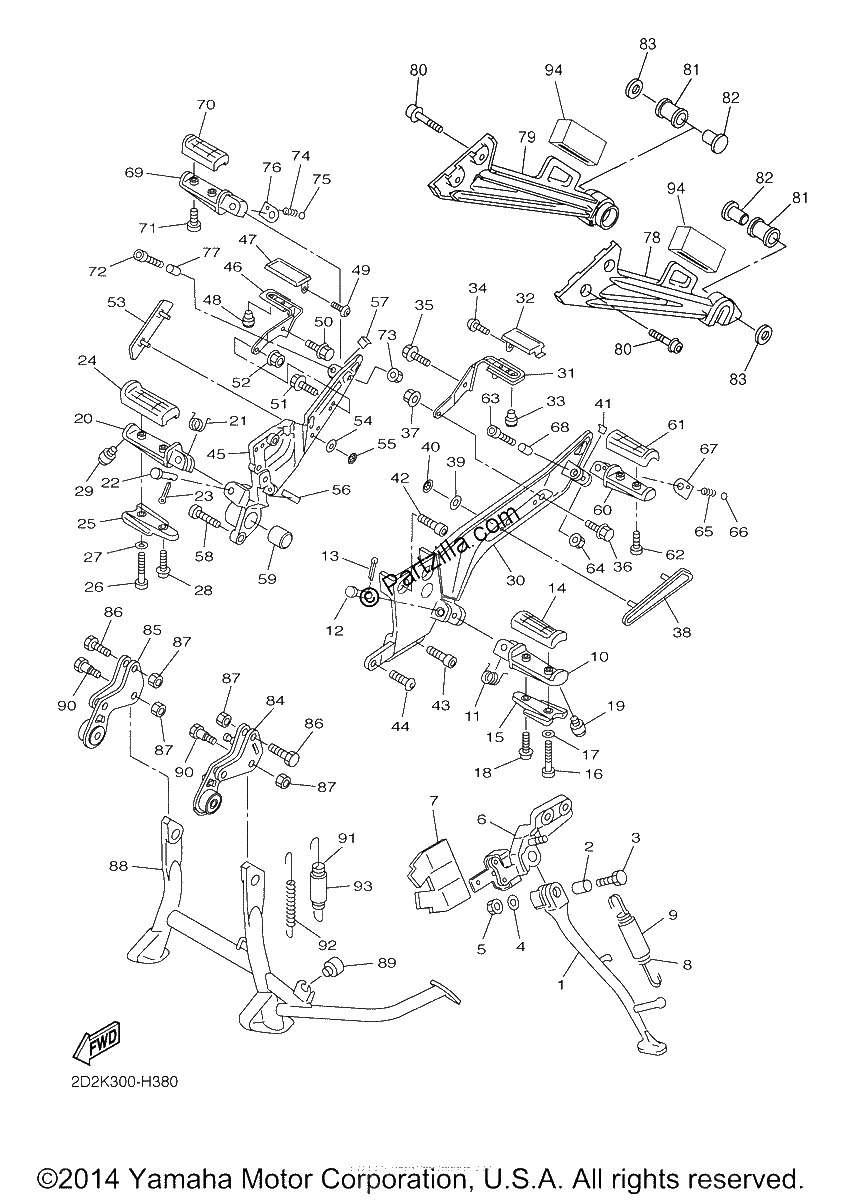

STAND FOOTREST
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
STAND, SIDE
$205.55¢102 776
#2
COLLAR
$13.10¢6 549
#3
bolt
$8.50¢4 249
#4
WASHER (replaces 92902-10200-00)
$3.14¢1 570
#5
NUT, U
$6.76¢3 381
#6
BRACKET, SIDE STAND
$259.23¢129 616
#7
PROTECTOR
$6.19¢3 093
#8
SPRING, TENSION
$10.44¢5 221
#9
HOSE (L60)
$4.30¢2 151
#10
FOOTREST
$55.67¢27 836
#11
SPRING, TORSION
$3.04¢1 518
#12
PIN
$4.45¢2 225
#13
PIN,COTTER (replaces 91401-25015-00)
$3.32¢1 662
#14
COVER, FOOTREST
$27.65¢13 823
#15
ARM 1
$75.81¢37 904
#16
SCREW, WITH WASHER
$7.30¢3 651
#17
WASHER, PLATE
$0.89¢443
#18
SCREW, WITH WASHER
$2.64¢1 322
#19
BOLT
$27.54¢13 771
#20
FOOTREST
$55.48¢27 738
#21
SPRING, TORSION
$2.74¢1 368
#22
PIN
$4.45¢2 225
#23
PIN,COTTER (replaces 91401-25015-00)
$3.32¢1 662
#24
COVER, FOOTREST
$27.65¢13 823
#25
ARM 1
$75.81¢37 904
#26
SCREW, WITH WASHER
$7.30¢3 651
#27
WASHER, PLATE
$0.89¢443
#28
SCREW, WITH WASHER
$2.64¢1 322
#29
BOLT
$27.54¢13 771
#30
BRACKET 2
$211.90¢105 949
#31
STOPPER
$37.75¢18 877
#32
PLATE
$5.65¢2 823
#33
PLUG
$9.12¢4 560
#34
BOLT, BUTTON HEAD
$0.47¢236
#35
BOLT, FLANGE
$7.57¢3 783
#36
BOLT
$6.80¢3 398
#37
NUT, FLANGE
$0.91¢454
#38
COVER, FOOTREST
$18.17¢9 085
#39
WASHER, PLATE
$2.77¢1 386
#39
COVER, FOOTREST
$18.17¢9 085
#40
NUT, SPRING
$7.96¢3 979
#41
SEAL
$8.26¢4 129
#42
BOLT
$7.57¢3 783
#43
BOLT
$6.92¢3 461
#44
SCREW
$7.52¢3 760
#45
BRACKET 3
$169.75¢84 876
#46
STOPPER, 3
$37.67¢18 837
#47
PLATE
$5.65¢2 823
#48
PLUG
$9.12¢4 560
#49
BOLT, BUTTON HEAD
$0.47¢236
#50
BOLT, FLANGE
$7.57¢3 783
#51
BOLT
$6.80¢3 398
#52
NUT, FLANGE
$0.91¢454
#54
WASHER, PLATE
$2.77¢1 386
#55
NUT, SPRING
$7.96¢3 979
#56
LABEL
$3.62¢1 811
#57
SEAL
$8.26¢4 129
#58
BOLT, HEXAGON
$6.16¢3 082
#59
BUSH, SOLID
$28.81¢14 404
#60
FOOTREST, REAR 1
$36.25¢18 124
#61
COVER, FOOTREST
$27.65¢13 823
#62
SCREW, PAN HEAD
$5.76¢2 881
#63
BOLT, HEXAGON SOCKET HEAD
$6.75¢3 375
#64
NUT-U (replaces 95602-06200-00)
$2.58¢1 288
#65
SPRING, COMPRESSION
$1.78¢891
#66
BALL
$6.87¢3 433
#67
WASHER, special
$6.46¢3 231
#68
COLLAR
$4.23¢2 116
#69
FOOTREST, REAR 2
$36.25¢18 124
#70
COVER, FOOTREST
$27.65¢13 823
#71
SCREW, PAN HEAD
$5.76¢2 881
#72
BOLT, HEXAGON SOCKET HEAD
$6.75¢3 375
#73
NUT-U (replaces 95602-06200-00)
$2.58¢1 288
#74
SPRING, COMPRESSION
$1.78¢891
#75
BALL
$6.87¢3 433
#76
WASHER, special
$6.46¢3 231
#77
COLLAR
$4.23¢2 116
#78
STAY, MUFFLER 1
$177.43¢88 717
#79
STAY, MUFFLER 2
$173.67¢86 837
#80
BOLT, HEXAGON
$6.16¢3 082
#81
DAMPER, FOOTREST 2
$17.19¢8 596
#82
COLLAR
$12.79¢6 394
#83
WASHER, PLATE
$6.87¢3 433
#84
BRACKET, MAIN STAND
$125.14¢62 571
#85
BRACKET, MAIN STAND 2
$92.63¢46 316
#86
BOLT
$2.40¢1 202
#87
NUT,SELF-LOCKING
$3.65¢1 823
#88
STAND, MAIN
$261.75¢130 876
#89
STOPPER, MAIN STAND
$17.32¢8 660
#90
BOLT
$19.89¢9 948
#91
SPRING, TENSION
$26.93¢13 467
#92
SPRING, TENSION
$12.74¢6 371
#93
HOSE (L60)
$7.27¢3 634
#94
SIDE CASE BRACKET RUBBER SET | SET OF 2
No Disponible
