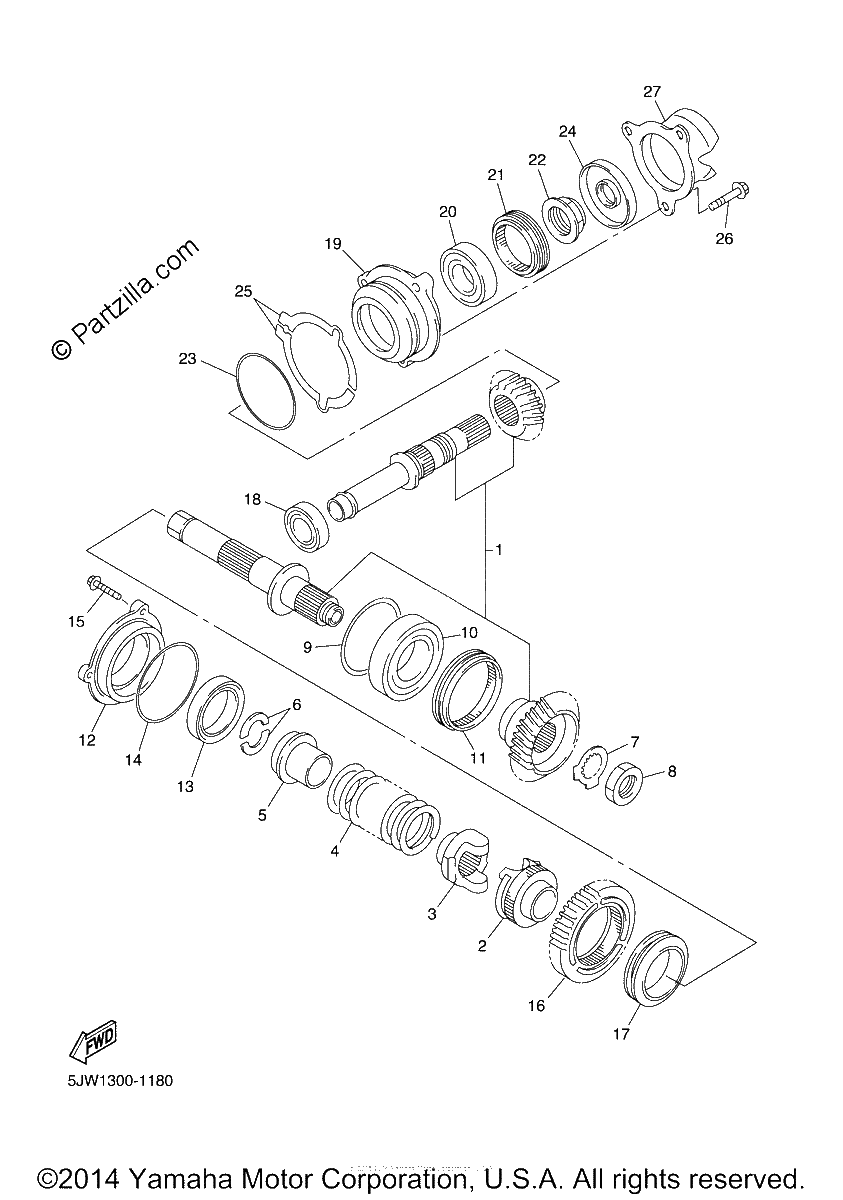

MIDDLE DRIVE GEAR
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#0
SHIM, PINION (0.50T) | UR
$5.40¢2 702
#0
SHIM, PINION (0.10T) | UR
$6.84¢3 421
#0
SHIM, PINION (0.40T) | UR
$5.11¢2 553
#0
SHIM, PINION (0.15T) | UR
$2.09¢1 047
#0
SHIM, PINION (0.20T) | UR
$4.86¢2 432
#0
SHIM, PINION (0.40T) | UR
$5.40¢2 702
#0
SHIM, PINION (0.50T) | UR
$5.17¢2 588
#0
SHIM, PINION (0.15T) | UR
$6.75¢3 375
#1
MIDDLE GEAR COMP.
$507.05¢253 523
#2
CAM, DRIVE
$150.49¢75 245
#3
CAM, DRIVEN
$97.69¢48 846
#4
SPRING, TRANSMISSION SHIFT
$38.08¢19 038
#5
HOLDER
$69.23¢34 615
#6
WASHER
$22.93¢11 466
#7
WASHER, LOCK
$4.15¢2 076
#8
NUT
$22.70¢11 350
#9
SHIM, PINION (0.30T) | UR
$3.47¢1 737
#10
BEARING
$99.37¢49 686
#11
NUT
$40.05¢20 027
#12
HOUSING, BEARING
$54.53¢27 267
#13
BEARING
$119.60¢59 800
#14
O-RING
$9.33¢4 663
#15
BOLT, HEXAGON SOCKET (replaces 90110-06390-00)
$2.71¢1 357
#16
GEAR, MIDDLE DRIVEN (35T)
$152.71¢76 354
#17
COLLAR
$40.31¢20 154
#18
BEARING
$35.20¢17 601
#19
HOUSING, BEARING
$63.93¢31 964
#20
BEARING
$47.43¢23 713
#21
NUT
$48.64¢24 322
#22
NUT
$19.49¢9 746
#23
O-RING
$10.09¢5 043
#24
OIL SEAL
$19.55¢9 775
#25
SHIM, PINION (0.30T) | UR
$4.70¢2 352
#26
BOLT,FLANGE (replaces 90105-08108-00)
$7.30¢3 651
#27
CAP, HOUSING
$22.74¢11 368
