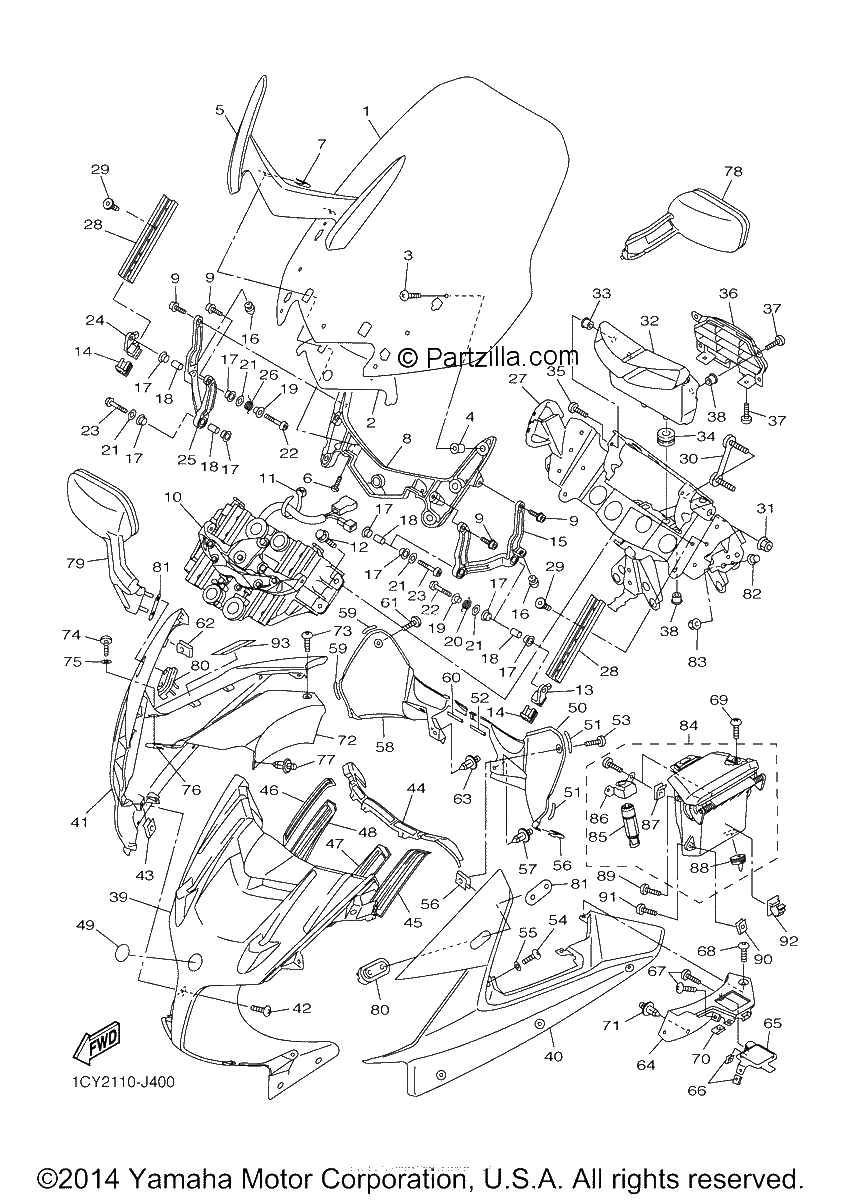

COWLING 1
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
WINDSHIELD
$509.55¢254 777
#2
SEAT 1
$9.34¢4 669
#3
SCREW, ROUND HEAD
$3.13¢1 564
#4
NUT
$6.23¢3 117
#5
WASHER, LEG SHIELD | Use for Color SILVER 3 ( S3 / 0791 )
$127.01¢63 503
#6
BOLT, BUTTON HEAD
$2.99¢1 495
#7
NUT, SPRING
$2.86¢1 432
#8
STAY 2
$144.80¢72 398
#9
BOLT, HEXAGON SOCKET HEAD
$1.84¢920
#10
DRIVE UNIT ASSY
$953.34¢476 669
#11
CLAMP 1
$7.23¢3 617
#12
BOLT, FLANGE (replaces 95827-06012-00)
$1.64¢822
#13
HINGE 1
$46.00¢23 000
#14
PLATE 1
$7.60¢3 801
#15
LINK 1
$68.45¢34 224
#16
DAMPER 2
$6.36¢3 180
#17
SPACER
$7.08¢3 542
#18
COLLAR
$6.83¢3 415
#19
COLLAR
$5.65¢2 823
#20
SPRING, TORSION
$6.76¢3 381
#21
WASHER, PLATE
$6.87¢3 433
#22
BOLT, BUTTON HEAD
$1.89¢943
#23
BOLT, BUTTON HEAD
$3.16¢1 581
#24
HINGE 2
$51.32¢25 662
#25
LINK 2
$68.45¢34 224
#26
SPRING, TORSION
$8.10¢4 048
#27
STAY 1
$632.50¢316 250
#28
STAY, GUIDE 1
$24.05¢12 023
#29
BOLT, HEXAGON SOCKET HEAD
$5.98¢2 990
#30
PLATE
$22.72¢11 362
#31
NUT, FLANGE
$1.89¢943
#32
DUCT 1
$60.57¢30 285
#33
NUT
$6.23¢3 117
#34
GROMMET
$6.38¢3 191
#35
SCREW, BIND
$1.32¢661
#36
GRILL, AIR OUTLET 1
$43.98¢21 988
#37
SCREW, BINDING
$4.28¢2 139
#38
NUT
$6.23¢3 117
#39
BOLT,HEX. SOCKET BUT
$5.44¢2 720
#39
BODY, COWLING | Use for Color SILVER 3 ( S3 / 0791 )
$276.17¢138 086
#40
UPPER COWLING ASSY 1 | Use for Color SILVER 3 ( S3 / 0791 )
$228.31¢114 155
#41
UPPER COWLING ASSY 2 | Use for Color SILVER 3 ( S3 / 0791 )
$183.55¢91 776
#42
SCREW, BINDING
$5.34¢2 668
#43
NUT, SPRING
$2.60¢1 299
#44
SEAL 1
$173.91¢86 957
#45
SEAL 2
$23.10¢11 552
#46
SEAL 3
$23.10¢11 552
#47
SEAL 4
No Disponible
#48
SEAL 5
$23.10¢11 552
#49
TUNING FORK MARK
No Disponible
#50
PANEL, CONSOLE 1
$55.75¢27 876
#51
SEAL 1
$4.23¢2 116
#52
SEAL 2
$10.19¢5 094
#54
BOLT, HEX. SOCKET BUTTON
$6.88¢3 439
#55
WASHER, PLATE
$7.05¢3 525
#56
NUT, SPRING
$2.60¢1 299
#57
RIVET
$5.93¢2 967
#58
PANEL, CONSOLE 2
$60.88¢30 440
#59
SEAL 1
$4.23¢2 116
#60
SEAL 2
$10.19¢5 094
#61
BOLT,HEX. SOCKET BUT
$5.44¢2 720
#62
NUT, SPRING
$2.60¢1 299
#63
RIVET
$5.93¢2 967
#64
PANEL, INNER 3
$44.88¢22 442
#65
CAP
$32.98¢16 491
#66
NUT, SPRING
$2.60¢1 299
#67
SCREW, BINDING
$3.29¢1 644
#68
BOLT,HEX. SOCKET BUT
$5.44¢2 720
#69
SCREW, BINDING
$3.29¢1 644
#70
NUT, SPRING
$2.60¢1 299
#71
RIVET
$5.93¢2 967
#72
PANEL, INNER 4
$44.37¢22 184
#73
BOLT,HEX. SOCKET BUT
$5.44¢2 720
#74
BOLT, HEX. SOCKET BUTTON
$6.88¢3 439
#75
WASHER, PLATE
$7.05¢3 525
#76
NUT, SPRING
$2.60¢1 299
#77
RIVET
$5.93¢2 967
#78
REAR VIEW MIRROR ASSY (LEFT) | Use for Color SILVER 3 ( S3 / 0791 )
$258.84¢129 421
#79
REAR VIEW MIRROR ASSY (RIGHT) | Use for Color SILVER 3 ( S3 / 0791 )
$250.12¢125 062
#80
PLATE, MIRROR FITTING 1
$12.60¢6 302
#81
PLATE, MIRROR FITTING 2
$7.04¢3 519
#82
COLLAR
$9.12¢4 560
#83
NUT, FLANGE
$2.24¢1 121
#84
BOX SUB ASSY | Use for Color SILVER 3 ( S3 / 0791 )
$382.65¢191 325
#85
LOCK ASSY
$222.21¢111 107
#86
BRACKET
$11.52¢5 761
#87
NUT, SPRING
$2.92¢1 461
#88
GROMMET
$7.92¢3 962
#89
SCREW, TAPPING
$2.08¢1 041
#90
NUT, SPRING
$2.60¢1 299
#91
SCREW
$3.90¢1 949
#92
CLAMP
$4.22¢2 110
#93
LABEL, NOTICE WINDSHIELD 1
$7.06¢3 530
