HANDLE SWITCH LEVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

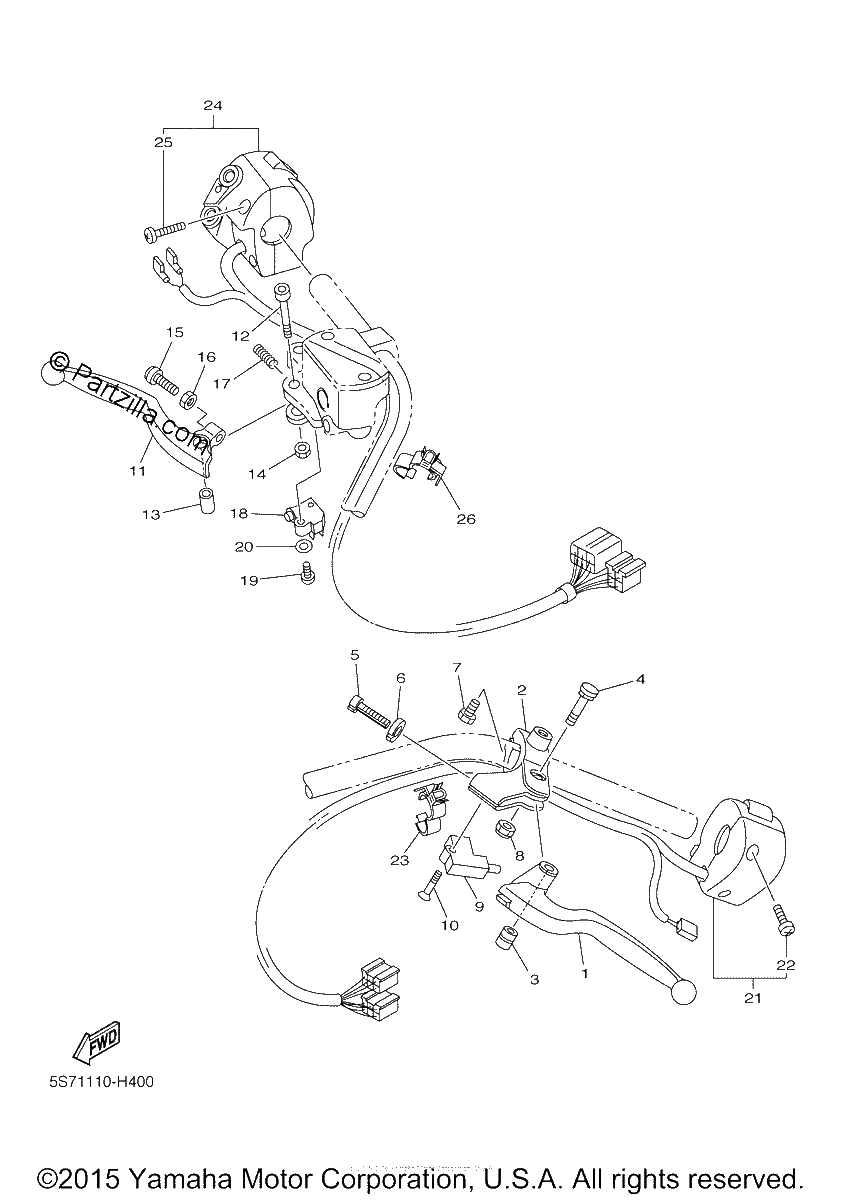

Diagrama de HANDLE SWITCH LEVER

Repuestos

#1
5BN-83912-00-00
LEVER 1
$49.59¢24 794
1
#2
5BN-82911-20-00
HOLDER, LEVER 1
$52.45¢26 226
1
#3
4TR-83913-00-00
COLLAR, LEVER 1
$7.30¢3 651
1
#4
4TR-83945-10-00
BOLT, LEVER
$15.02¢7 510
1
#5
90123-08046-00
BOLT
$10.06¢5 031
1
#6
90179-08148-00
NUT
$4.27¢2 133
1
#7
97017-06020-00
BOLT, HEXAGON (replaces 97027-06020-00)
$2.78¢1 392
1
#8
95617-06100-00
NUT,U (replaces 95602-06100-00)
$2.63¢1 317
1
#9
3YX-82917-01-00
SWITCH
$43.52¢21 758
1
#10
98707-03020-00
SCREW, FLAT HEAD
$7.30¢3 651
1
#11
5S7-83922-00-00
LEVER 2
$33.05¢16 525
1
#12
90110-06265-00
BOLT, HEXAGON SOCKET HEAD
$2.74¢1 368
1
#13
36Y-83913-01-00
COLLAR, LEVER 1
$9.79¢4 893
1
#14
95617-06100-00
NUT,U (replaces 95602-06100-00)
$2.63¢1 317
1
#15
90154-06028-00
SCREW, BINDING
$5.95¢2 973
1
#16
90170-06020-00
Nut
$5.88¢2 938
1
#17
90501-10312-00
SPRING,COMPRESSION
$6.75¢3 375
1
#18
J45-82503-01-00
FRONT STOP SWITCH ASSY
$37.32¢18 659
1
#19
98580-04014-00
SCREW, PAN HEAD
$3.06¢1 529
1
#20
92992-04600-00
WASHER, PLATE
No Disponible
1
#21
5S7-83973-00-00
SWITCH, HANDLE 3
$178.19¢89 096
1
#22
98517-05030-00
SCREW, PAN HEAD (replaces 98507-05030-00)
$8.69¢4 347
1
#23
90464-15192-00
CLAMP
$6.75¢3 375
1
#24
5S7-83972-00-00
SWITCH, HANDLE 4
$260.35¢130 174
1
#25
98517-05030-00
SCREW, PAN HEAD (replaces 98507-05030-00)
$8.69¢4 347
1
#26
90464-15192-00
CLAMP
$6.75¢3 375
1
