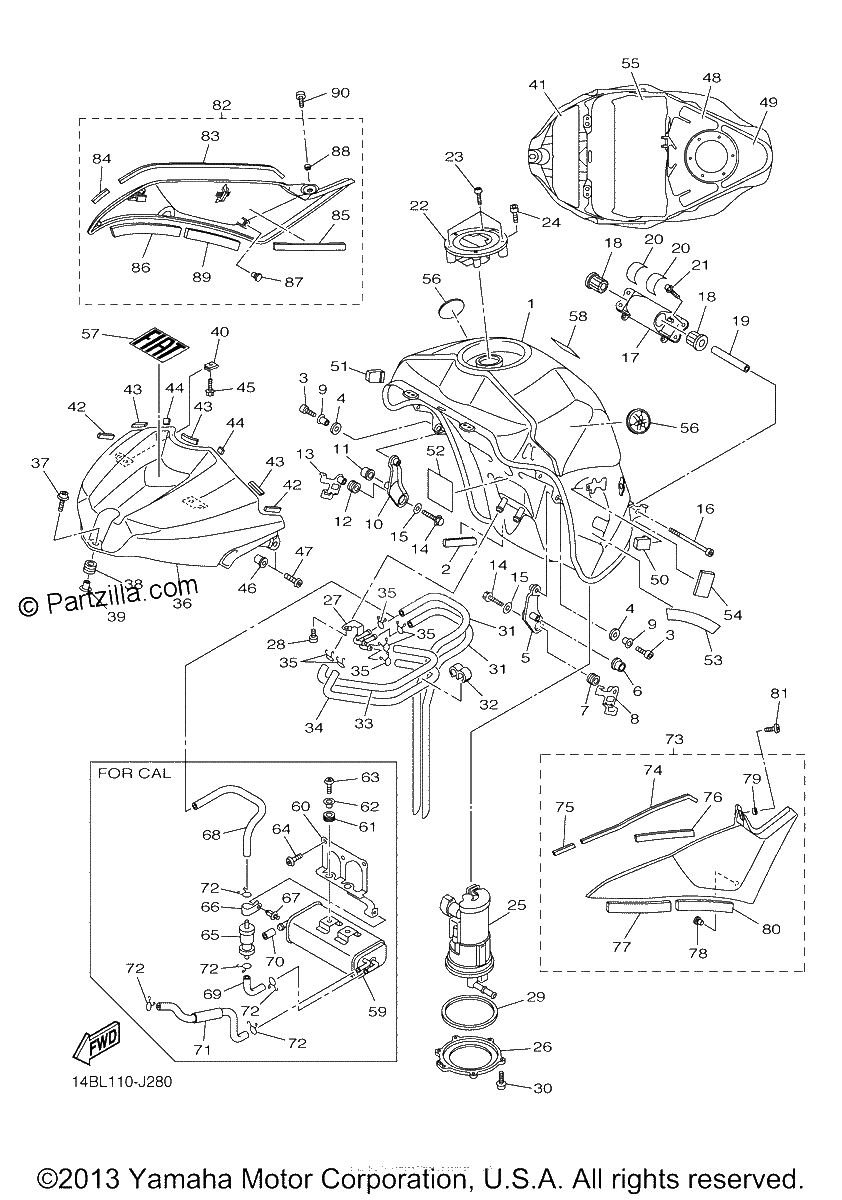

FUEL TANK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#0
PIPE 3 | FOR CALIFORNIA
$29.13¢14 565
#1
FUEL TANK COMP. | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
No Disponible
#2
MOLD, FUEL TANK
$19.53¢9 763
#3
BOLT
$5.37¢2 685
#4
DAMPER, LOCATING 3
$7.15¢3 577
#5
BRACKET, FUEL TANK 1
$49.31¢24 656
#6
DAMPER, LOCATING 1
$7.04¢3 519
#7
GROMMET
$10.76¢5 382
#8
HOLDER, CABLE
$14.92¢7 458
#9
COLLAR
$5.97¢2 984
#10
BRACKET, FUEL TANK 2
No Disponible
#11
DAMPER, LOCATING 1
$7.04¢3 519
#12
GROMMET
$10.76¢5 382
#13
HOLDER, CLUTCH CABLE
$14.60¢7 302
#14
BOLT, FLANGE
$1.54¢771
#15
WASHER, PLATE (replaces 90201-06063-00)
$6.89¢3 444
#16
BOLT, HEXAGON SOCKET HEAD
$6.16¢3 082
#17
BRACKET, TANK FITTING
$61.21¢30 607
#18
DAMPER, LOCATING 3
$7.04¢3 519
#19
COLLAR
$4.77¢2 386
#20
SEAL 2
No Disponible
#21
BOLT, HEXAGON SOCKET
$8.39¢4 198
#22
CAP ASSY
$248.96¢124 482
#23
BOLT, HEXAGON SOCKET HEAD
$8.20¢4 100
#24
BOLT
$5.39¢2 697
#25
FUEL PUMP COMP.
$517.70¢258 848
#26
BRACKET, FUEL PUMP
$40.32¢20 160
#27
CLAMP 1
$28.04¢14 018
#28
BOLT
$5.69¢2 846
#29
O-RING
$40.92¢20 458
#30
BOLT, HEXAGON SOCKET HEAD
$6.88¢3 439
#31
PIPE 2 | FOR CALIFORNIA
$49.93¢24 967
#32
CLAMP
$6.77¢3 387
#33
PIPE 3
$11.81¢5 905
#34
PIPE 4
No Disponible
#35
Clip
$2.74¢1 368
#36
COVER, TOP | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$591.09¢295 544
#37
BOLT, HEXAGON SOCKET HEAD
$6.83¢3 415
#38
GROMMET
$6.83¢3 415
#39
COLLAR
$7.64¢3 818
#39
DAMPER, PLATE 3
$7.74¢3 870
#40
NUT, SPRING
$8.14¢4 071
#41
DAMPER, PLATE 1
$10.05¢5 026
#42
DAMPER, LOCATING 2
$7.08¢3 542
#43
DAMPER, LOCATING 1
$7.23¢3 617
#44
DAMPER, LOCATING 1
$7.31¢3 657
#45
BOLT, WITH WASHER (replaces 90119-05016-00)
$6.75¢3 375
#46
NUT
$6.23¢3 117
#47
SCREW, BIND
$1.32¢661
#48
DAMPER, PLATE 4
$51.66¢25 829
#49
DAMPER, PLATE 5
$39.01¢19 504
#50
DAMPER, SIDE COVER
$7.04¢3 519
#51
DAMPER, SIDE COVER
$7.04¢3 519
#52
DAMPER
$7.31¢3 657
#54
SEAL
$9.36¢4 681
#55
DAMPER, PLATE
$9.98¢4 991
#56
EMBLEM 3D
$48.51¢24 254
#57
EMBLEM 1
No Disponible
#58
LABEL, CAUTION
$7.22¢3 611
#59
CANISTER ASSY | FOR CALIFORNIA
$333.30¢166 652
#60
BRACKET, CANISTOR | FOR CALIFORNIA
$56.37¢28 187
#61
GROMMET
$6.83¢3 415
#62
COLLAR | FOR CALIFORNIA
$6.22¢3 111
#63
BOLT, BUTTON HEAD
$6.82¢3 410
#64
BOLT, HEX. SOCKET BUTTON
$4.74¢2 369
#65
ROLL OVER VALVE ASSY | FOR CAL
$57.60¢28 802
#66
Clamp
$2.16¢1 081
#67
RIVET
$2.50¢1 248
#68
PIPE 5 | FOR CALIFORNIA
$27.44¢13 719
#69
PIPE 6 | FOR CALIFORNIA
$11.87¢5 934
#70
HOSE (L70)
$6.38¢3 191
#71
PIPE | FOR CALIFORNIA
$25.60¢12 800
#72
Clip
$2.74¢1 368
#73
TANK SIDE COVER ASSY 1
$134.15¢67 074
#74
DAMPER, PLATE 1
$7.23¢3 617
#75
DAMPER, PLATE 2
$7.31¢3 657
#76
DAMPER, PLATE
$1.32¢661
#77
DAMPER, PLATE 2
$6.03¢3 013
#78
PLUG
$6.22¢3 111
#79
SPACER
$4.22¢2 110
#80
DAMPER, PLATE
$3.58¢1 788
#81
SCREW, BIND
$1.35¢673
#82
TANK SIDE COVER ASSY 2
$146.75¢73 376
#83
DAMPER, PLATE 1
$7.23¢3 617
#84
DAMPER, PLATE 2
$7.31¢3 657
#85
DAMPER, PLATE
$1.32¢661
#86
DAMPER, PLATE 2
$6.03¢3 013
#87
PLUG
$6.22¢3 111
#88
SPACER
$4.22¢2 110
#89
DAMPER, PLATE
$3.58¢1 788
#90
SCREW, BIND
$1.35¢673
