SADDLEBAG

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

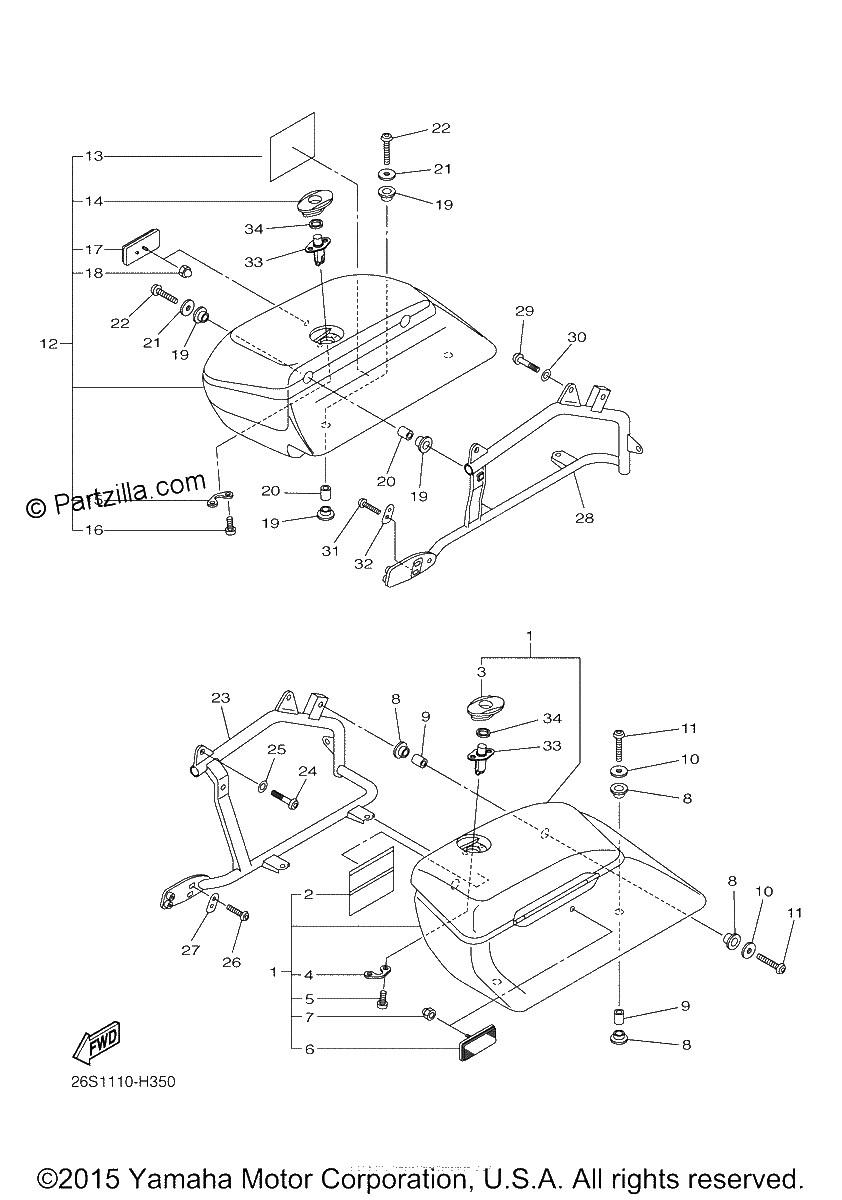

Diagrama de SADDLEBAG

Repuestos

#1
26S-F8430-00-00
SADDLEBAG COMP. 1
No Disponible
1
#2
5S6-F8446-00-00
LABEL, CAUTION
No Disponible
1
#3
5S6-F8493-00-00
COVER LOCK ASSY 2
No Disponible
1
#4
2C5-F848T-00-00
PLATE, LOCK 1
No Disponible
1
#5
92014-05010-00
BOLT, BUTTON HEAD
$7.57¢3 783
1
#6
3Y6-85130-02-00
Rear Reflector
$24.91¢12 455
1
#7
90176-05001-00
NUT, CROWN
$6.03¢3 013
1
#8
90480-20004-00
GROMMET
$3.16¢1 581
1
#9
90387-08077-00
COLLAR
$7.14¢3 571
1
#10
90201-065G8-00
WASHER, PLATE
$6.75¢3 375
1
#11
92012-06025-00
BOLT, BUTTON HEAD
$3.16¢1 581
1
#12
26S-F8440-00-00
SADDBAG COMP. 2
No Disponible
1
#13
5S6-F8446-00-00
LABEL, CAUTION
No Disponible
1
#14
5S6-F849K-00-00
COVER LOCK ASSY 2
No Disponible
1
#15
2C5-F848T-00-00
PLATE, LOCK 1
No Disponible
1
#16
92014-05010-00
BOLT, BUTTON HEAD
$7.57¢3 783
1
#17
3Y6-85130-02-00
Rear Reflector
$24.91¢12 455
1
#18
90176-05001-00
NUT, CROWN
$6.03¢3 013
1
#19
90480-20004-00
GROMMET
$3.16¢1 581
1
#20
90387-08077-00
COLLAR
$7.14¢3 571
1
#21
90201-065G8-00
WASHER, PLATE
$6.75¢3 375
1
#22
92012-06025-00
BOLT, BUTTON HEAD
$3.16¢1 581
1
#23
26S-28473-00-00
FRAME, SADDLEBAG 1
$207.28¢103 638
1
#24
92012-08080-00
BOLT, BUTTON HEAD
$5.37¢2 685
1
#25
92902-08200-00
WASHER
$0.25¢127
1
#26
90111-08046-00
BOLT, HEX. SOCKET HEAD
$6.99¢3 496
1
#27
5S6-28417-00-00
PLATE
$10.80¢5 399
1
#28
26S-28474-00-00
FRAME, SADDLEBAG 2
$205.69¢102 845
1
#29
92012-08080-00
BOLT, BUTTON HEAD
$5.37¢2 685
1
#30
92902-08200-00
WASHER
$0.25¢127
1
#31
90111-08046-00
BOLT, HEX. SOCKET HEAD
$6.99¢3 496
1
#32
5S6-28417-00-00
PLATE
$10.80¢5 399
1
#33
5S6-28408-00-00
LOCK ASSY 1
$148.78¢74 388
1
#34
5S6-28428-00-00
SEAL 1
$13.60¢6 802
1
