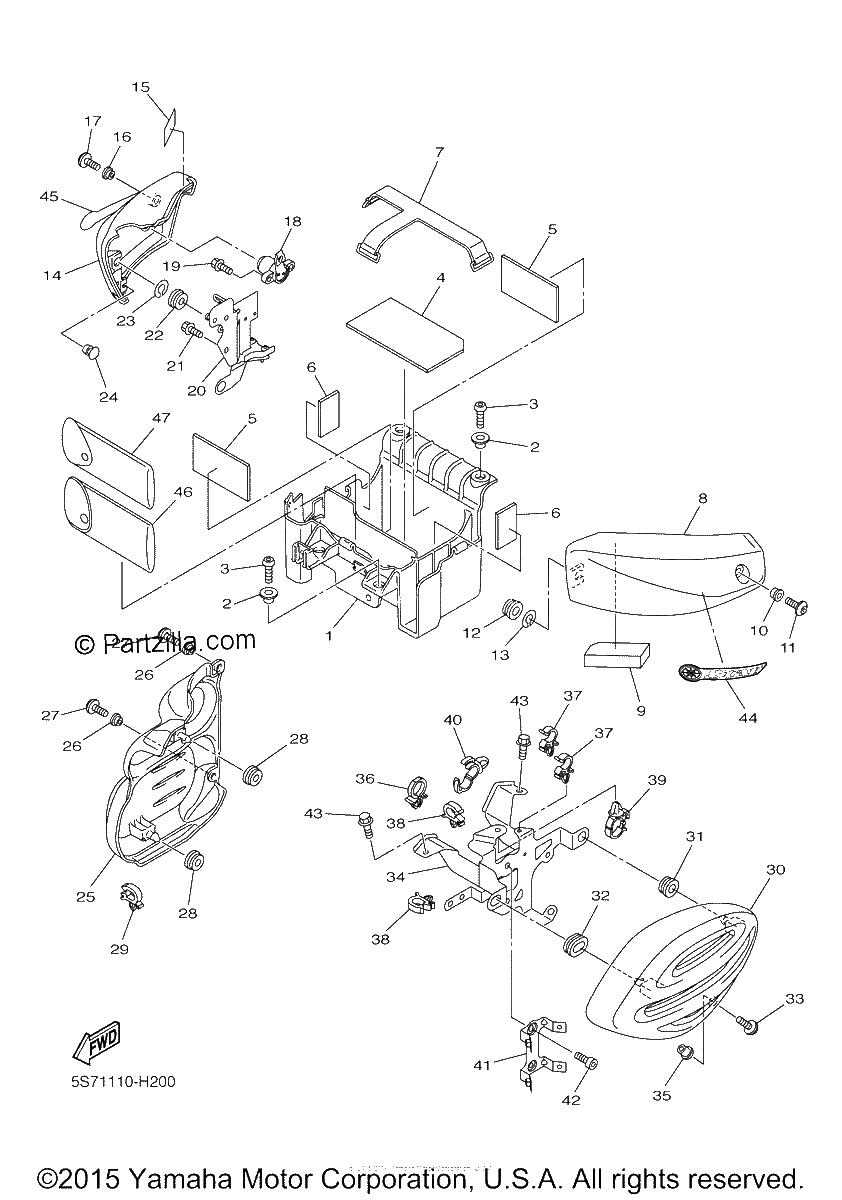

SIDE COVER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
BOX, BATTERY
$39.33¢19 665
#2
COLLAR
$5.92¢2 961
#3
BOLT, BUTTON HEAD
$6.88¢3 439
#4
SEAT, BATTERY
$7.50¢3 749
#5
DAMPER, PLATE 1
$7.23¢3 617
#6
DAMPER
$6.99¢3 496
#7
BAND, BATTERY
$11.09¢5 543
#8
COVER, SIDE 1 | Use for Color Black Metallic X ( SMX / 0903 )
$124.14¢62 071
#9
DAMPER
$1.23¢615
#10
COLLAR
$7.07¢3 536
#11
BOLT, HEX. SOCKET BUTTON
$3.78¢1 892
#12
GROMMET
$7.30¢3 651
#13
WASHER, SPECIAL 1
No Disponible
#14
COVER, SIDE 2 | Use for Color Black Metallic X ( SMX / 0903 )
$68.26¢34 132
#15
SEAL 1
$3.90¢1 949
#16
COLLAR
$7.07¢3 536
#17
SCREW
$5.06¢2 530
#18
ROTOR SET
$136.30¢68 149
#19
BOLT, WASHER BASED
$7.30¢3 651
#20
BRACKET 4
$72.45¢36 225
#21
BOLT, WASHER BASED
$7.30¢3 651
#22
GROMMET
$7.30¢3 651
#23
WASHER, SPECIAL 1
No Disponible
#24
PLUG
$6.22¢3 111
#25
COVER, SIDE 4
$39.13¢19 567
#26
COLLAR
$4.97¢2 484
#27
BOLT, HEX. SOCKET BUTTON
$3.78¢1 892
#28
GROMMET
$4.25¢2 128
#29
CLAMP
$1.55¢776
#30
COVER, SIDE 3
$155.86¢77 930
#31
GROMMET
$4.25¢2 128
#32
Grommet
$4.31¢2 156
#33
SCREW
$3.90¢1 949
#34
BRACKET 3
$73.47¢36 737
#35
NUT
$5.37¢2 685
#36
CLAMP
$2.53¢1 265
#37
CLAMP
$2.02¢1 012
#38
CLAMP
$1.55¢776
#39
CLAMP
$2.37¢1 185
#40
CLAMP
$3.16¢1 581
#41
BRACKET, COIL
$30.53¢15 266
#42
BOLT (4MY) (replaces 90110-06065-00)
$7.58¢3 789
#43
BOLT, FLANGE SMALL HEAD)
$7.51¢3 755
#44
EMBLEM 1
$17.32¢8 660
#45
EMBLEM, 2
$13.13¢6 567
#46
TOOL KIT
$46.85¢23 426
#47
TOOL KIT, 2
$32.11¢16 054
