FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

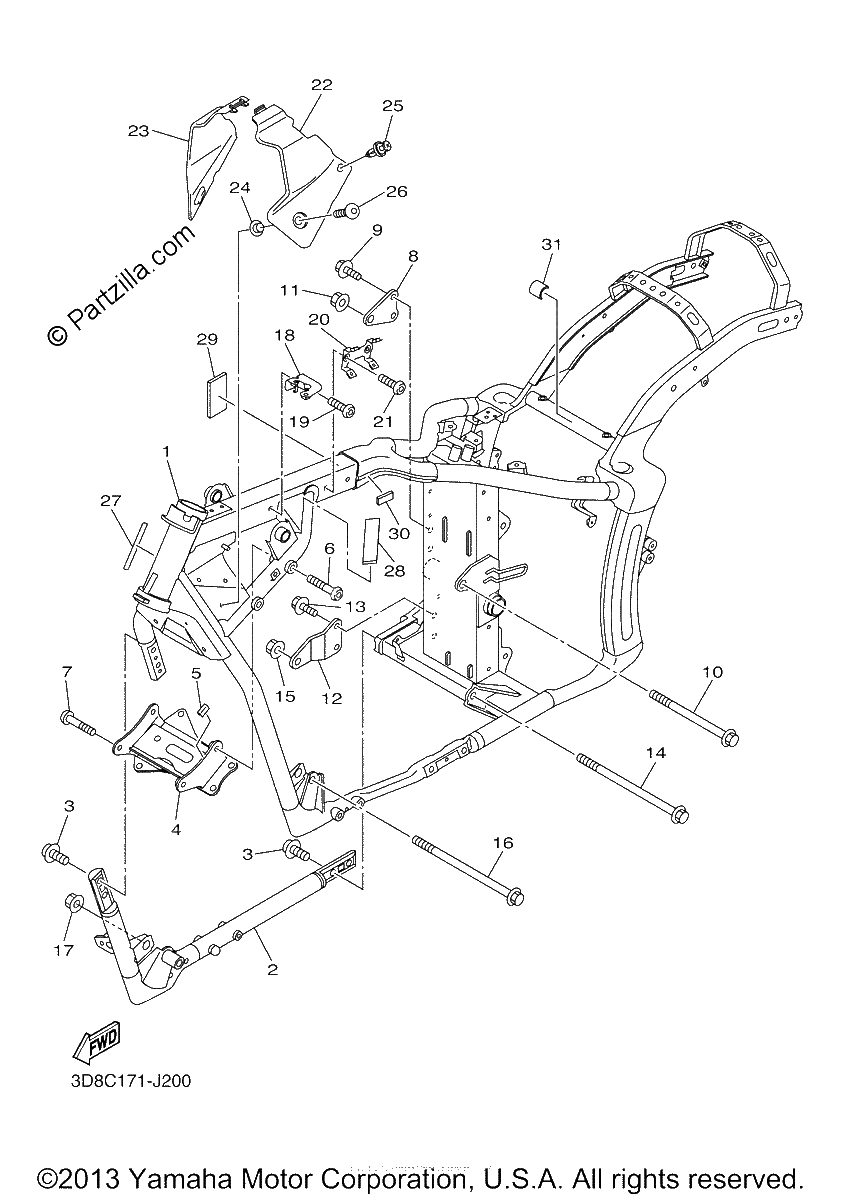

Diagrama de FRAME

Repuestos

#1
3D8-21110-30-00
FRAME COMP.
No Disponible
1
#2
3D8-21150-10-00
DOWN TUBE COMP.2
No Disponible
1
#3
90110-10017-00
BOLT, HEXAGON SOCKET
$6.47¢3 238
1
#4
3D8-21317-10-00
STAY, ENGINE 3
$209.56¢104 781
1
#5
3MA-27491-00-00
PROTECTOR
$9.89¢4 944
1
#6
90111-10028-00
BOLT, HEX. SOCKET BUTTON
$5.15¢2 575
1
#7
90111-10030-00
BOLT,HEX. SOCKET BUTTON
$4.46¢2 231
1
#8
3D8-21314-00-00
STAY, ENGINE 5
$18.23¢9 113
1
#9
95817-10020-00
BOLT, FLANGE
$6.25¢3 125
1
#10
90105-12043-00
BOLT, FLANGE
$15.70¢7 850
1
#11
90185-12002-00
NUT, SELF-LOCKING
$11.96¢5 981
1
#12
3D8-21316-00-00
STAY, ENGINE 2
$22.14¢11 069
1
#13
95817-10020-00
BOLT, FLANGE
$6.25¢3 125
1
#14
90105-12044-00
BOLT, FLANGE
$23.57¢11 788
1
#15
90185-12002-00
NUT, SELF-LOCKING
$11.96¢5 981
1
#16
90105-12045-00
BOLT, FLANGE
$22.48¢11 238
1
#17
90185-12002-00
NUT, SELF-LOCKING
$11.96¢5 981
1
#18
3D8-2119W-10-00
BRACKET, LH.
$13.81¢6 906
1
#19
92012-06012-00
BOLT, BUTTON HEAD
$2.97¢1 487
1
#20
3D8-21359-01-00
BRACKET, COIL
$33.19¢16 594
1
#21
91312-06014-00
bolt
$5.65¢2 825
1
#22
3D8-2171E-01-00
COVER, SIDE 5
$50.21¢25 106
1
#23
3D8-2171X-01-00
COVER, SIDE 6
$48.60¢24 300
1
#24
90387-06071-00
COLLAR
$8.24¢4 119
1
#25
90269-07076-00
RIVET,SPEC'L SHAPE
$7.13¢3 563
1
#26
90111-06061-00
BOLT, HEX. SOCKET BUTTON
$7.46¢3 731
1
#27
3D8-2117G-00-00
PROTECTOR
$6.65¢3 325
1
#28
4XY-2834E-00-00
DAMPER 3
$3.79¢1 894
1
#29
3D8-2113B-00-00
DAMPER
No Disponible
1
#30
5H0-8235Y-M0-00
DAMPER
$7.70¢3 850
1
#31
3MA-27491-00-00
PROTECTOR
$9.89¢4 944
1
