SIDE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

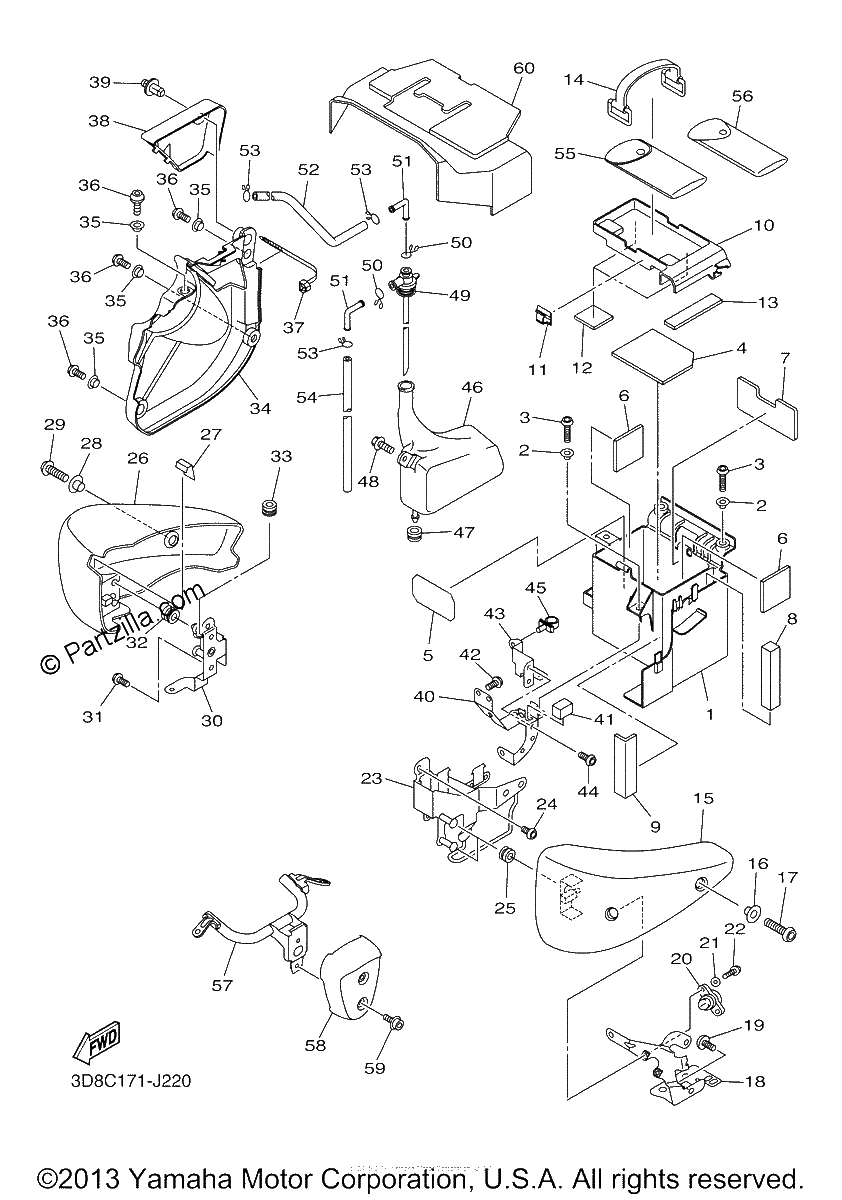

Diagrama de SIDE COVER

Repuestos

#0
3D8-21721-00-P8
COVER, SIDE 2 | UR FOR VPBC5
$85.06¢42 531
1
#0
3D8-21711-00-P8
COVER, SIDE 1 | UR FOR VPBC5
$69.23¢34 613
1
#1
3D8-2177G-02-00
BOX, BATTERY
$35.06¢17 531
1
#2
90387-06109-00
COLLAR
$6.44¢3 219
1
#3
92012-06020-00
BOLT, BUTTON HEAD
$7.48¢3 738
1
#4
51Y-82122-00-00
SEAT, BATTERY
$8.15¢4 075
1
#5
5PX-21652-00-00
PROTECTOR
$9.19¢4 594
1
#6
3D8-2174Y-00-00
DAMPER
$1.69¢844
1
#7
3D8-2174X-00-00
DAMPER
$4.15¢2 075
1
#8
3D8-21779-00-00
DAMPER, LOCATING 2
$1.80¢900
1
#9
3D8-2177M-00-00
DAMPER, LOCATING 3
$1.63¢813
1
#10
3D8-28173-10-00
BOX, TOOL
No Disponible
1
#11
90464-07002-00
CLAMP
$3.16¢1 581
1
#12
2GH-24185-00-00
DAMPER, LOCATING 5
$1.23¢613
1
#13
1AE-2834E-00-00
DAMPER 3
$7.60¢3 800
1
#14
22F-82131-00-00
BAND, BATTERY
$27.93¢13 963
1
#15
3D8-21711-00-P0
COVER, SIDE 1 | Use for Color Black Metallic X ( SMX / 0903 )
$123.06¢61 531
1
#16
90387-06173-00
COLLAR
$7.69¢3 844
1
#17
90149-06023-00
SCREW
$5.50¢2 750
1
#18
3D8-2175T-00-00
BRACKET 1
$43.56¢21 781
1
#19
97707-50012-00
SCREW, TRUSS HEAD TAPPING
$3.85¢1 925
1
#20
5PX-W2470-00-00
ROTOR SET
$148.15¢74 075
1
#21
90201-06034-00
WASHER, PLATE
$7.75¢3 875
1
#22
95024-06016-00
BOLT, WASHER BASED
$7.94¢3 969
1
#23
3D8-2172M-10-00
BRACKET 3
$51.73¢25 863
1
#24
92012-06012-00
BOLT, BUTTON HEAD
$2.97¢1 487
1
#25
90480-12550-00
GROMMET
$7.94¢3 969
1
#26
3D8-21721-00-P0
COVER, SIDE 2 | Use for Color Black Metallic X ( SMX / 0903 )
$94.66¢47 331
1
#27
3MA-27491-00-00
PROTECTOR
$9.89¢4 944
1
#28
90387-06173-00
COLLAR
$7.69¢3 844
1
#29
90111-06038-00
BOLT, HEX. SOCKET BUTTON
$4.11¢2 056
1
#30
3D8-2172N-00-00
BRACKET 4
$67.24¢33 619
1
#31
92012-06012-00
BOLT, BUTTON HEAD
$2.97¢1 487
1
#32
90480-12550-00
GROMMET
$7.94¢3 969
1
#33
90480-18495-00
GROMMET
$8.24¢4 119
1
#34
3D8-21741-10-00
COVER, SIDE 4
$47.27¢23 638
1
#35
90387-06184-00
COLLAR
$5.41¢2 706
1
#36
90111-06038-00
BOLT, HEX. SOCKET BUTTON
$4.11¢2 056
1
#37
90464-15195-00
CLAMP
$3.30¢1 650
1
#38
3D8-2176E-10-00
PLATE
$44.31¢22 156
1
#39
90467-08003-00
CLIP
$7.50¢3 750
1
#39
90269-07077-00
RIVET
$8.25¢4 125
1
#40
3D8-2172K-01-00
BRACKET 1
$46.54¢23 269
1
#41
3D8-21778-00-00
DAMPER, LOCATING 1
$0.72¢363
1
#42
92012-06012-00
BOLT, BUTTON HEAD
$2.97¢1 487
1
#43
3D8-2172L-00-00
BRACKET 2
$16.21¢8 106
1
#44
92012-06012-00
BOLT, BUTTON HEAD
$2.97¢1 487
1
#45
90464-12001-00
CLAMP
$2.75¢1 375
1
#46
3D8-21871-00-00
TANK, RECOVERY
$62.75¢31 375
1
#47
90480-13567-00
GROMMET
$4.63¢2 313
1
#48
90119-06137-00
BOLT, WITH WASHER
$7.43¢3 713
1
#49
3D8-21875-00-00
CAP
$18.13¢9 063
1
#50
90467-11M08-00
CLIP
$3.13¢1 563
1
#51
26H-21828-00-00
ELBOW
$26.14¢13 069
1
#52
3D8-21826-00-00
PIPE, BREATHER
$11.04¢5 519
1
#54
90445-092K1-00
HOSE (L420)
$13.09¢6 544
1
#55
3D8-28100-10-00
TOOL KIT
$36.85¢18 425
1
#56
3D8-28110-00-00
TOOL KIT, 2
$28.00¢14 000
1
#57
3D8-1541E-00-00
STAY, COVER
$72.91¢36 456
1
#58
5EL-14283-00-00
COVER, CARBURETOR 1
$80.38¢40 188
1
#59
90110-05057-00
BOLT, HEXAGON SOCKET HEAD
$6.14¢3 069
1
#60
3D8-24796-00-00
COVER
No Disponible
1
