CRANKSHAFT PISTON

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

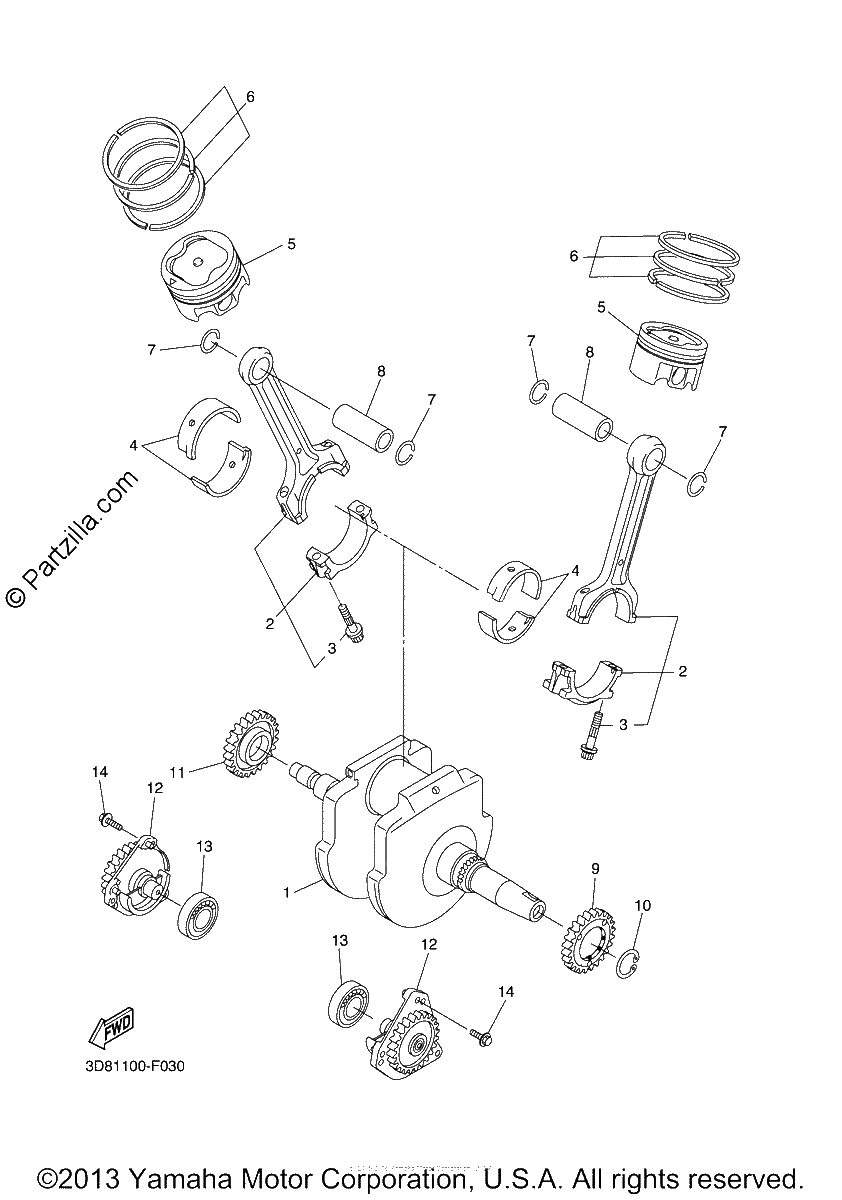

Diagrama de CRANKSHAFT PISTON

Repuestos

#0
5YU-11656-00-00
PLANE BEARING, CONNECTING ROD | UR BLUE
$19.23¢9 613
1
#0
5YU-11656-40-00
PLANE BEARING, CONNECTING ROD | UR YELLOW
$17.80¢8 900
1
#0
5YU-11656-20-00
PLANE BEARING, CONNECTING ROD | UR BROWN
$17.96¢8 981
1
#0
5YU-11656-10-00
PLANE BEARING, CONNECTING ROD | UR BLACK
$19.09¢9 544
1
#1
3D8-11400-01-00
CRANKSHAFT ASSY
$729.99¢364 994
1
#2
3D8-11650-00-00
CONNECTING ROD ASSY
$244.11¢122 056
1
#3
5YU-11654-00-00
BOLT, CONNECTING ROD
$8.50¢4 250
1
#4
5YU-11656-30-00
PLANE BEARING, CONNECTING ROD | UR GREEN
$18.61¢9 306
1
#5
3D8-11631-00-00
PISTON (STD)
$196.77¢98 387
1
#6
1D7-11610-00-00
PISTON RING SET (STD)
$55.79¢27 894
1
#7
93450-24154-00
CIRCLIP
$3.41¢1 706
1
#8
5VK-11633-00-00
PIN, PISTON
$43.49¢21 744
1
#9
3D8-11530-00-00
BALANCER WEIGHT GEAR COMP.
$217.71¢108 856
1
#10
99009-40400-00
CIRCLIP
$4.35¢2 175
1
#11
3D8-11543-00-00
GEAR,1
$133.52¢66 762
1
#12
3D8-11500-00-00
BALANCER ASSY
$346.91¢173 456
1
#13
93306-20458-00
BEARING
$44.33¢22 163
1
#14
90109-06015-00
BOLT
$4.76¢2 381
1
