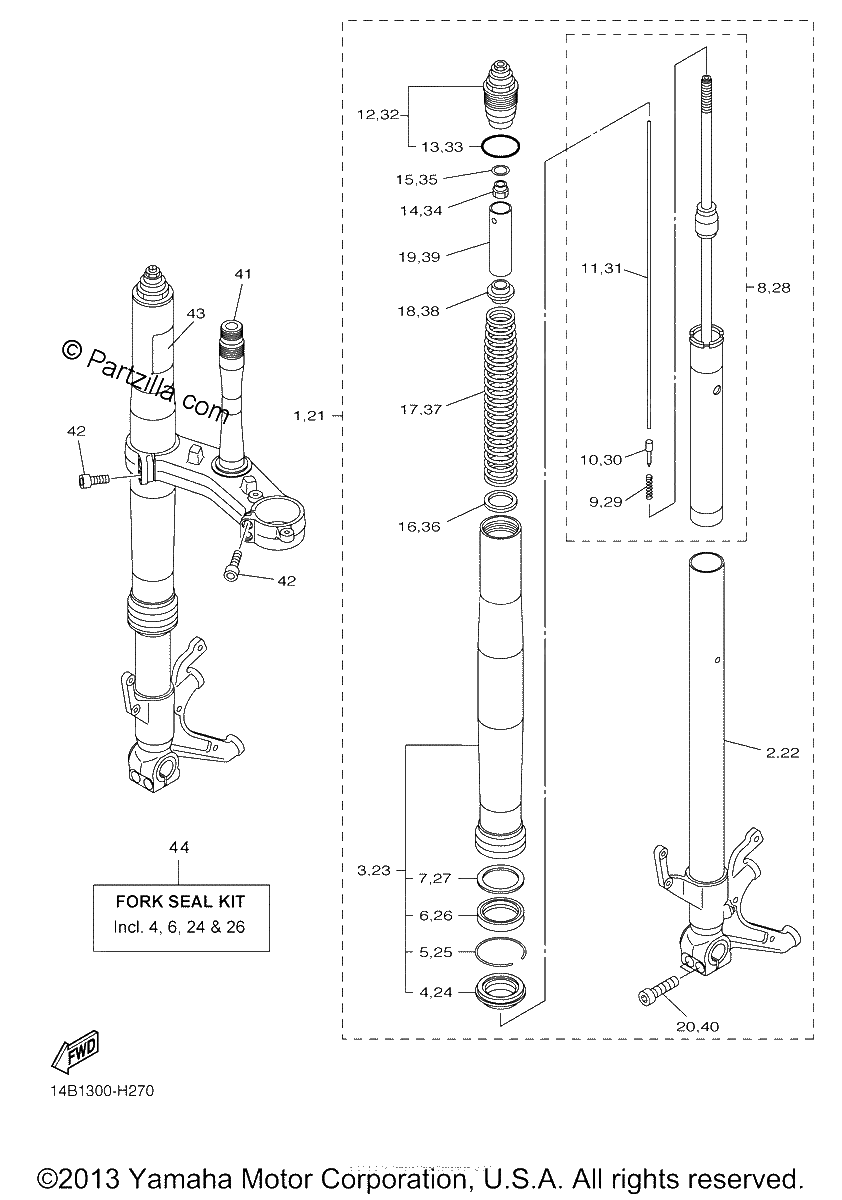

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#0
FRONT FORK ASSY (R.H) | UR FOR DPBMC
$1061.44¢530 719
#0
FRONT FORK ASSY (L.H) | UR FOR SMX
$830.29¢415 144
#0
OUTER TUBE COMP. | UR FOR SMX
$632.40¢316 198
#1
FRONT FORK ASSY (L.H) | UR FOR DPBMC
$1088.91¢544 456
#2
INNER TUBE COMP.1
$534.20¢267 099
#3
OUTER TUBE COMP. | UR FOR DPBMC
$392.24¢196 121
#4
SEAL, DUST | INCL. IN FORK SEAL KIT
$21.25¢10 626
#5
RING, SNAP
$9.56¢4 778
#6
OIL SEAL | INCL. IN FORK SEAL KIT
$25.60¢12 800
#7
GUIDE, COVER UPPER
$8.26¢4 129
#8
CYL. COMP., 2
$332.59¢166 296
#9
SPRING, VALVE
$7.31¢3 657
#10
VALVE
$10.21¢5 106
#11
PLUNGER
No Disponible
#12
BOLT, CAP
$316.77¢158 384
#13
O-RING
$6.87¢3 433
#14
NUT, SPECIAL
$13.06¢6 532
#15
PLATE, VALVE 2
$7.38¢3 691
#16
SEAT, SPRING LOWER
$4.05¢2 024
#17
SPRING, FRONT FORK
No Disponible
#18
SEAT, SPRING UPPER
$3.48¢1 742
#19
SPACER
$9.48¢4 738
#20
BOLT, HEXAGON SOCKET HEAD
$2.70¢1 351
#21
FRONT FORK ASSY (R.H) | UR FOR SMX
$863.64¢431 819
#22
INNER TUBE COMP.2
No Disponible
#23
OUTER TUBE COMP. | UR FOR DPBMC
$392.24¢196 121
#24
SEAL, DUST | INCL. IN FORK SEAL KIT
$21.25¢10 626
#25
RING, SNAP
$9.56¢4 778
#26
OIL SEAL | INCL. IN FORK SEAL KIT
$25.60¢12 800
#27
GUIDE, COVER UPPER
$8.26¢4 129
#28
CYL. COMP., 3
$496.36¢248 181
#29
SPRING, VALVE
$7.31¢3 657
#30
VALVE
$10.21¢5 106
#31
PLUNGER
No Disponible
#32
BOLT, CAP 2
$348.76¢174 380
#33
O-RING
$6.87¢3 433
#34
NUT, SPECIAL
$13.06¢6 532
#35
PLATE, VALVE 2
$7.38¢3 691
#36
SEAT, SPRING LOWER
$4.05¢2 024
#37
SPRING, FRONT FORK
No Disponible
#38
SEAT, SPRING UPPER
$3.48¢1 742
#39
SPACER
$9.48¢4 738
#40
BOLT, HEXAGON SOCKET HEAD
$2.70¢1 351
#41
UNDER BRACKET COMP.
$652.04¢326 019
#42
BOLT, HEXAGON SOCKET HEAD
$2.51¢1 254
#43
PROTECTOR
$13.42¢6 710
#44
FORK SEAL KIT
$41.76¢20 878
