STAND FOOTREST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

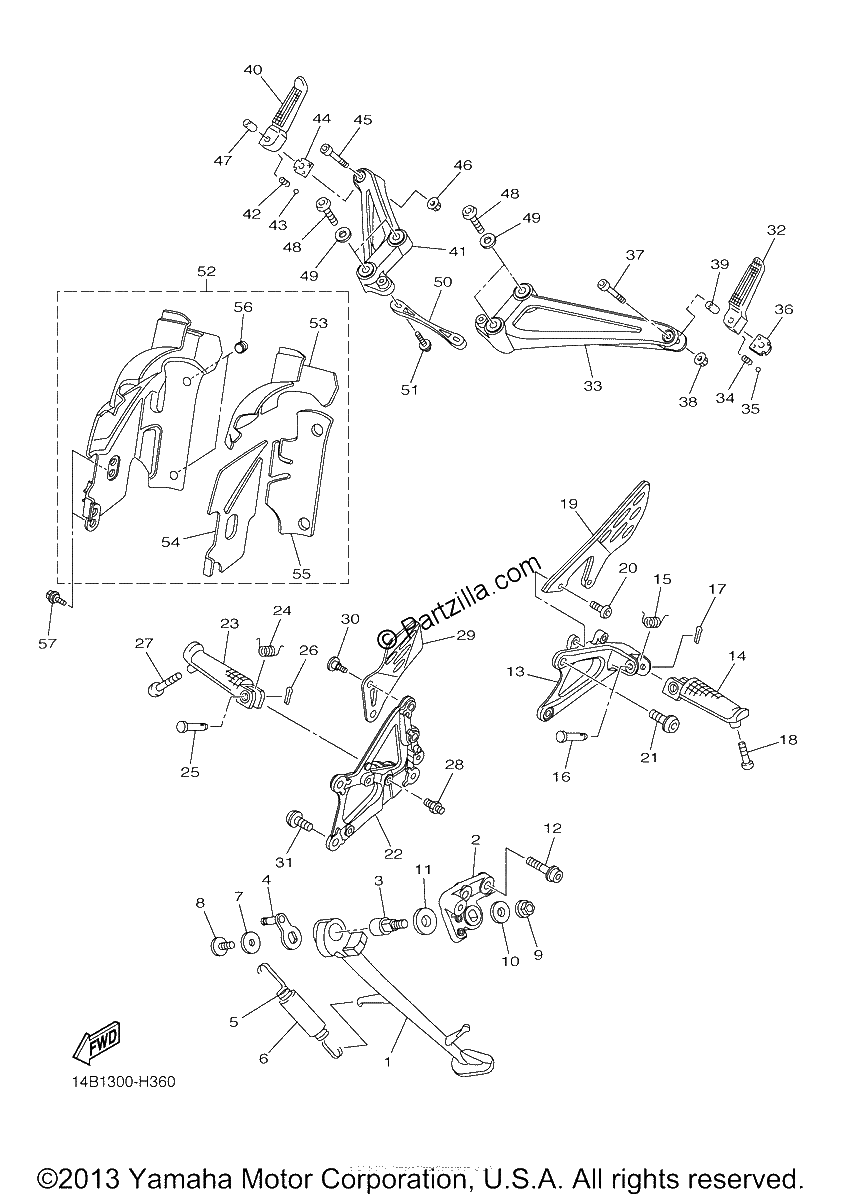

Diagrama de STAND FOOTREST

Repuestos

#1
14B-27311-00-00
STAND, SIDE
$209.61¢104 805
1
#2
14B-27321-00-00
BRACKET, SIDE STAND
$256.08¢128 041
1
#3
14B-27351-00-00
GUIDE, SIDE STAND
$41.91¢20 953
1
#4
14B-27352-00-00
HOOK, SIDE STAND
$13.17¢6 584
1
#5
90506-18008-00
SPRING, TENSION
$14.52¢7 262
1
#6
90445-19002-00
HOSE (L60)
$5.61¢2 806
1
#7
90201-081R9-00
WASHER, PLATE 8AT (replaces 90201-08753-00)
$6.92¢3 461
1
#8
90111-08073-00
BOLT,HEX. SOCKET BUTTON
$4.42¢2 208
1
#9
95607-10200-00
NUT,SELF-LOCKING
$3.65¢1 823
1
#10
90201-101J1-00
WASHER, PLATE
$6.75¢3 375
1
#11
90201-146F9-00
WASHER, PLATE
$5.47¢2 737
1
#12
90110-10026-00
BOLT, HEXAGON SOCKET
$10.61¢5 307
1
#13
14B-27442-00-00
BRACKET 2
$136.00¢68 000
1
#14
5JJ-27451-00-00
FOOTREST
$78.29¢39 146
1
#15
90508-18134-00
SPRING, TORSION
$6.76¢3 381
1
#16
91701-08038-00
PIN
$4.28¢2 139
1
#17
91490-25020-00
PIN,COTTER (replaces 91401-25015-00)
$3.32¢1 662
1
#18
90109-08177-00
BOLT
$6.52¢3 260
1
#19
14B-27445-00-00
PLATE 1
$68.26¢34 132
1
#20
92014-06012-00
BOLT,BUTTON HEAD
$2.71¢1 357
1
#21
90109-085G6-00
BOLT
$2.08¢1 041
1
#22
14B-27443-00-00
BRACKET 3
$138.95¢69 477
1
#23
5JJ-27461-00-00
FOOTREST
$91.72¢45 862
1
#24
90508-18135-00
SPRING, TORSION
$8.10¢4 048
1
#25
91701-08038-00
PIN
$4.28¢2 139
1
#26
91490-25020-00
PIN,COTTER (replaces 91401-25015-00)
$3.32¢1 662
1
#27
90109-08177-00
BOLT
$6.52¢3 260
1
#28
4C8-27813-09-00
PIN, PEDAL CRANK
$24.76¢12 380
1
#29
14B-27446-00-00
PLATE 2
$57.56¢28 779
1
#30
90109-066F0-00
BOLT
$6.99¢3 496
1
#31
90109-085G6-00
BOLT
$2.08¢1 041
1
#32
5JJ-27431-10-00
FOOTREST, REAR 1
$78.27¢39 134
1
#33
14B-2741L-00-00
BRACKET 4 | UR FOR DPBMC
$146.94¢73 468
1
#34
90501-12743-00
SPRING, COMPRESSION
$3.51¢1 754
1
#35
93501-04011-00
BALL
$6.87¢3 433
1
#36
5JJ-27437-01-00
WASHER, special
$6.46¢3 231
1
#37
91314-06035-00
BOLT, HEXAGON SOCKET HEAD
$6.75¢3 375
1
#38
95604-06200-00
NUT-U (replaces 95602-06200-00)
$2.58¢1 288
1
#39
14B-2749A-00-00
SEAT 3
$21.68¢10 839
1
#39
90387-06697-00
Collar
$14.60¢7 302
1
#40
5JJ-27441-10-00
FOOTREST, REAR 2
$69.56¢34 782
1
#41
14B-2742L-00-00
BRACKET 5 | UR FOR DPBMC
$196.32¢98 158
1
#42
90501-12743-00
SPRING, COMPRESSION
$3.51¢1 754
1
#43
93501-04011-00
BALL
$6.87¢3 433
1
#44
5JJ-27437-01-00
WASHER, special
$6.46¢3 231
1
#45
91314-06035-00
BOLT, HEXAGON SOCKET HEAD
$6.75¢3 375
1
#46
95604-06200-00
NUT-U (replaces 95602-06200-00)
$2.58¢1 288
1
#47
90387-06697-00
Collar
$14.60¢7 302
1
#48
90110-08220-00
BOLT, HEXAGON SOCKET HEAD
$6.43¢3 214
1
#49
13S-27417-00-00
WASHER, FOOTREST
$11.17¢5 583
1
#50
14B-27469-00-00
REINFORCEMENT 1
$55.57¢27 784
1
#51
90111-06030-00
BOLT, HEX. SOCKET BUTTON
$3.66¢1 829
1
#52
14B-27490-00-00
PROTECTOR ASSY
$130.94¢65 470
1
#54
14B-2749B-00-00
SEAT 4
$7.77¢3 887
1
#55
14B-2749D-00-00
SEAT 6
$4.47¢2 237
1
#56
2D1-14737-00-00
DAMPER, MUFFLER
$5.58¢2 789
1
#57
90109-06264-00
BOLT
$4.74¢2 369
1
