COWLING 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

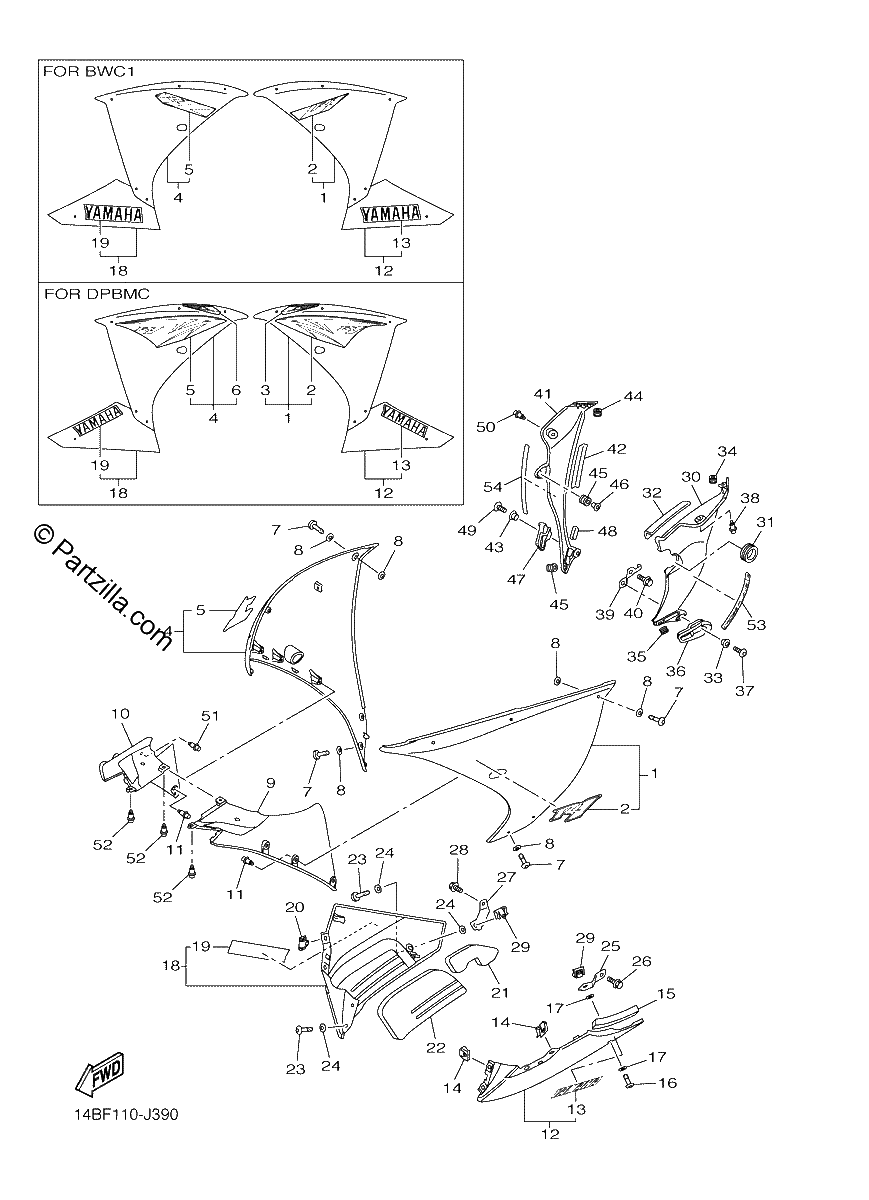

Diagrama de COWLING 2

Repuestos

#1
14B-W283U-80-P3
PANEL ASSY 1 (BLACK METALLIC X) *{UR FOR SMX}*
$368.48¢184 242
1
#2
14B-2839B-00-00
EMBLEM 3D | Use for Color Black Metallic X ( SMX / 0903 )
$68.69¢34 345
1
#4
14B-W283V-80-P3
PANEL ASSY 2 (BLACK METALLIC X) *{UR FOR SMX}*
$368.20¢184 098
1
#5
14B-2839B-00-00
EMBLEM 3D | Use for Color Black Metallic X ( SMX / 0903 )
$68.69¢34 345
1
#7
14B-28386-00-00
HEAD
$10.43¢5 215
1
#8
2TK-21757-00-00
WASHER,SPECIAL 1
$1.89¢943
1
#9
14B-2836K-00-00
PANEL, INNER 1
$81.79¢40 894
1
#10
14B-2836L-00-00
PANEL, INNER 2
$83.24¢41 619
1
#11
90269-06008-00
RIVET
$8.10¢4 048
1
#12
14B-W2838-10-P2
UNDER COVER COMP. 1 (MAT BLACK 2) (BLACK METALLIC X) *{UR MBL2 FOR SMX}*
$189.21¢94 605
1
#13
14B-2153B-90-00
EMBLEM, YAMAHA | Use for Color Black Metallic X ( SMX / 0903 )
$30.06¢15 031
1
#14
5PW-2177L-00-00
Plate, Spring
$6.82¢3 410
1
#15
14B-2834E-00-00
DAMPER 3
$11.97¢5 986
1
#16
14B-28386-00-00
HEAD
$10.43¢5 215
1
#17
2TK-21757-00-00
WASHER,SPECIAL 1
$1.89¢943
1
#18
14B-W2839-10-P2
UNDER COVER COMP. 2 (MAT BLACK 2) (BLACK METALLIC X) *{UR MBL2 FOR SMX}*
$210.31¢105 156
1
#19
14B-2153B-90-00
EMBLEM, YAMAHA | Use for Color Black Metallic X ( SMX / 0903 )
$30.06¢15 031
1
#20
5PW-2177L-00-00
Plate, Spring
$6.82¢3 410
1
#21
14B-28371-00-00
DAMPER
$11.12¢5 560
1
#22
14B-2848M-00-00
SEAT 4
$52.13¢26 065
1
#23
14B-28386-00-00
HEAD
$10.43¢5 215
1
#24
2TK-21757-00-00
WASHER,SPECIAL 1
$1.89¢943
1
#25
14B-2836A-00-00
BRACKET 1
$17.27¢8 637
1
#26
95802-06016-00
Bolt, Flange
$1.64¢822
1
#27
14B-2836E-00-00
BRACKET 2
$19.62¢9 809
1
#28
90105-06174-00
Bolt, Flange
$1.64¢822
1
#29
5PW-2177L-00-00
Plate, Spring
$6.82¢3 410
1
#30
14B-2836M-00-P5
PANEL, INNER 3 (MAT BLACK 2) (BLACK METALLIC X) *{UR MBL2 FOR SMX}*
$230.37¢115 184
1
#31
14B-2836T-00-00
DAMPER, locating 1
$5.24¢2 622
1
#32
90520-05011-00
DAMPER, PLATE
$7.92¢3 962
1
#33
90560-08251-00
SPACER
$8.21¢4 105
1
#34
90480-08006-00
Grommet
$3.44¢1 719
1
#35
90480-12596-00
GROMMET
$9.99¢4 997
1
#36
14B-283C1-00-00
STOPPER, RUBBER 1
$10.43¢5 215
1
#37
90111-06051-00
BOLT, HEX. SOCKET BUTTON
$4.74¢2 369
1
#38
90269-07077-00
RIVET
$7.59¢3 795
1
#39
14B-28321-00-00
STAY 1
$25.60¢12 800
1
#40
95802-06012-00
Bolt, Flange
$1.64¢822
1
#41
14B-2836N-00-P5
PANEL, INNER 4 (MAT BLACK 2) (BLACK METALLIC X) *{UR MBL2 FOR SMX}*
$169.40¢84 698
1
#42
3NU-21732-00-00
SEAL 1
$6.00¢3 001
1
#43
90560-08251-00
SPACER
$8.21¢4 105
1
#44
90480-08006-00
Grommet
$3.44¢1 719
1
#45
90480-12596-00
GROMMET
$9.99¢4 997
1
#46
90387-065J6-00
Collar
$6.99¢3 496
1
#47
14B-283C2-00-00
STOPPER, RUBBER 2
$9.56¢4 778
1
#48
4B5-2847F-00-00
SEAL 5
$9.56¢4 778
1
#49
90111-06051-00
BOLT, HEX. SOCKET BUTTON
$4.74¢2 369
1
#50
90269-07077-00
RIVET
$7.59¢3 795
1
#51
90269-06008-00
RIVET
$8.10¢4 048
1
#52
90269-06008-00
RIVET
$8.10¢4 048
1
