FRONT MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

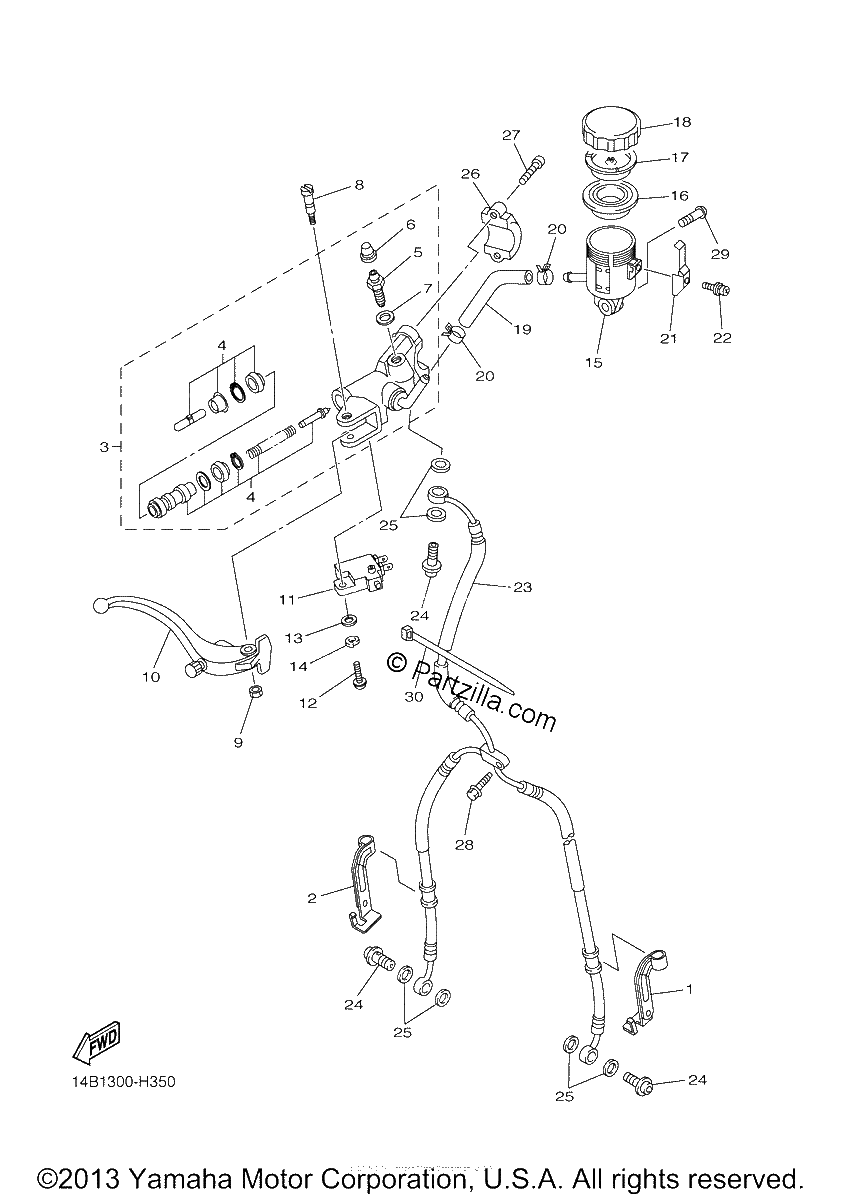

Diagrama de FRONT MASTER CYLINDER

Repuestos

#1
14B-25875-00-00
HOLDER, BRAKE HOSE 1
$10.30¢5 150
1
#2
14B-25876-00-00
HOLDER, BRAKE HOSE 2
$16.99¢8 494
1
#3
14B-W2587-00-00
MASTER CYLINDER SUB ASSY
$329.44¢164 719
1
#4
2S3-W0041-00-00
CYLINDER KIT, MASTER
$91.33¢45 663
1
#5
3YK-25824-00-00
SCREW, BLEED
$8.97¢4 488
1
#6
3YK-25825-00-00
CAP
$13.90¢6 950
1
#7
5VY-25975-00-00
SEAL 1
$1.93¢963
1
#8
5VY-2589F-01-00
BOLT, LEVER
$15.18¢7 588
1
#9
95617-06100-00
NUT,U (replaces 95602-06100-00)
$2.86¢1 431
1
#10
14B-83922-00-00
LEVER 2
$99.16¢49 581
1
#11
4HM-83980-00-00
FRONT STOP SWITCH ASSY
$43.72¢21 862
1
#12
98502-04012-00
SCREW, PAN HEAD
No Disponible
1
#13
92902-04100-00
WASHER, SPRING
$0.74¢369
1
#14
92990-04600-00
WASHER, PLATE
$1.20¢600
1
#15
5SL-25894-20-00
TANK, RESERVOIR
$39.35¢19 675
1
#16
5VY-25854-00-00
DIAPHRAGM, RESERVOIR
$33.59¢16 794
1
#17
5VY-25855-00-00
BUSH, DIAPHRAGM
$4.49¢2 244
1
#18
5VY-25852-00-00
CAP, RESERVOIR
$18.90¢9 450
1
#19
5VY-25895-10-00
HOSE, RESERVOIR
$25.76¢12 881
1
#20
90467-120A3-00
CLIP
$6.99¢3 494
1
#21
5VY-2589G-00-00
HOLDER
$8.92¢4 462
1
#22
5VY-2589H-00-00
SCREW
$7.60¢3 800
1
#23
14B-25872-00-00
HOSE, BRAKE 1
No Disponible
1
#24
90401-10172-00
BOLT, UNION
$4.41¢2 206
1
#25
90430-10005-00
GASKET
$8.39¢4 194
1
#26
5VS-25867-00-00
BRACKET, MASTER CYLINDER
$37.81¢18 906
1
#27
5VS-26332-00-00
BOLT
$4.68¢2 338
1
#28
90105-06041-00
BOLT, FLANGE
$6.59¢3 294
1
#29
90111-05026-00
BOLT, HEX. SOCKET BUTTON
$8.09¢4 044
1
#30
90464-59001-00
CLAMP
$17.06¢8 531
1
