STAND FOOTREST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

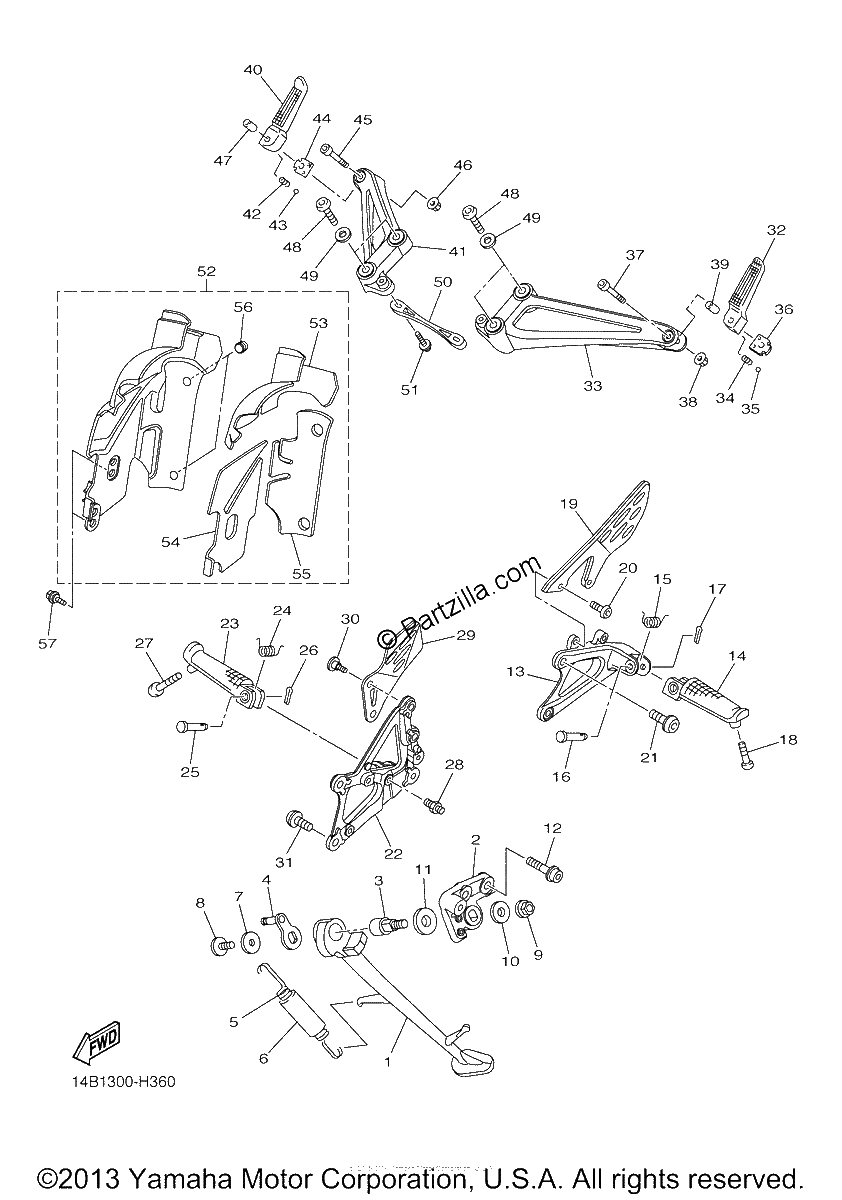

Diagrama de STAND FOOTREST

Repuestos

#1
14B-27311-00-00
STAND, SIDE
$227.84¢113 919
1
#2
14B-27321-00-00
BRACKET, SIDE STAND
$278.35¢139 175
1
#3
14B-27351-00-00
GUIDE, SIDE STAND
$45.55¢22 775
1
#4
14B-27352-00-00
HOOK, SIDE STAND
$14.31¢7 156
1
#5
90506-18008-00
SPRING, TENSION
$15.79¢7 894
1
#6
90445-19002-00
HOSE (L60)
$6.10¢3 050
1
#7
90201-081R9-00
WASHER, PLATE 8AT (replaces 90201-08753-00)
$7.52¢3 762
1
#8
90111-08073-00
BOLT,HEX. SOCKET BUTTON
$4.80¢2 400
1
#9
95607-10200-00
NUT,SELF-LOCKING
$3.96¢1 981
1
#10
90201-101J1-00
WASHER, PLATE
$7.34¢3 669
1
#11
90201-146F9-00
WASHER, PLATE
$5.95¢2 975
1
#12
90110-10026-00
BOLT, HEXAGON SOCKET
$11.54¢5 769
1
#13
14B-27442-00-00
BRACKET 2
$147.83¢73 913
1
#14
5JJ-27451-00-00
FOOTREST
$85.10¢42 550
1
#15
90508-18134-00
SPRING, TORSION
$7.35¢3 675
1
#16
91701-08038-00
PIN
$4.65¢2 325
1
#17
91490-25020-00
PIN,COTTER (replaces 91401-25015-00)
$3.61¢1 806
1
#18
90109-08177-00
BOLT
$7.09¢3 544
1
#19
14B-27445-00-00
PLATE 1
$74.20¢37 100
1
#20
92014-06012-00
BOLT,BUTTON HEAD
$2.95¢1 475
1
#21
90109-085G6-00
BOLT
$2.26¢1 131
1
#22
14B-27443-00-00
BRACKET 3
$151.04¢75 519
1
#23
5JJ-27461-00-00
FOOTREST
$99.70¢49 850
1
#24
90508-18135-00
SPRING, TORSION
$8.80¢4 400
1
#25
91701-08038-00
PIN
$4.65¢2 325
1
#26
91490-25020-00
PIN,COTTER (replaces 91401-25015-00)
$3.61¢1 806
1
#27
90109-08177-00
BOLT
$7.09¢3 544
1
#28
4C8-27813-09-00
PIN, PEDAL CRANK
$26.91¢13 456
1
#29
14B-27446-00-00
PLATE 2
$62.56¢31 281
1
#30
90109-066F0-00
BOLT
$7.60¢3 800
1
#31
90109-085G6-00
BOLT
$2.26¢1 131
1
#32
5JJ-27431-10-00
FOOTREST, REAR 1
$85.08¢42 538
1
#33
14B-2741L-00-00
BRACKET 4 | UR FOR DPBMC
$159.71¢79 856
1
#34
90501-12743-00
SPRING, COMPRESSION
$3.81¢1 906
1
#35
93501-04011-00
BALL
$7.46¢3 731
1
#36
5JJ-27437-01-00
WASHER, special
$7.03¢3 513
1
#37
91314-06035-00
BOLT, HEXAGON SOCKET HEAD
$7.34¢3 669
1
#38
95604-06200-00
NUT-U (replaces 95602-06200-00)
$2.80¢1 400
1
#39
14B-2749A-00-00
SEAT 3
$23.56¢11 781
1
#39
90387-06697-00
Collar
$15.88¢7 938
1
#40
5JJ-27441-10-00
FOOTREST, REAR 2
$75.61¢37 806
1
#41
14B-2742L-00-00
BRACKET 5 | UR FOR DPBMC
$213.39¢106 694
1
#42
90501-12743-00
SPRING, COMPRESSION
$3.81¢1 906
1
#43
93501-04011-00
BALL
$7.46¢3 731
1
#44
5JJ-27437-01-00
WASHER, special
$7.03¢3 513
1
#45
91314-06035-00
BOLT, HEXAGON SOCKET HEAD
$7.34¢3 669
1
#46
95604-06200-00
NUT-U (replaces 95602-06200-00)
$2.80¢1 400
1
#47
90387-06697-00
Collar
$15.88¢7 938
1
#48
90110-08220-00
BOLT, HEXAGON SOCKET HEAD
$6.99¢3 494
1
#49
13S-27417-00-00
WASHER, FOOTREST
$12.14¢6 069
1
#50
14B-27469-00-00
REINFORCEMENT 1
$60.40¢30 200
1
#51
90111-06030-00
BOLT, HEX. SOCKET BUTTON
$3.98¢1 988
1
#52
14B-27490-00-00
PROTECTOR ASSY
$142.32¢71 163
1
#54
14B-2749B-00-00
SEAT 4
$8.45¢4 225
1
#55
14B-2749D-00-00
SEAT 6
$4.86¢2 431
1
#56
2D1-14737-00-00
DAMPER, MUFFLER
$6.06¢3 031
1
#57
90109-06264-00
BOLT
$5.15¢2 575
1
