TAILLIGHT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

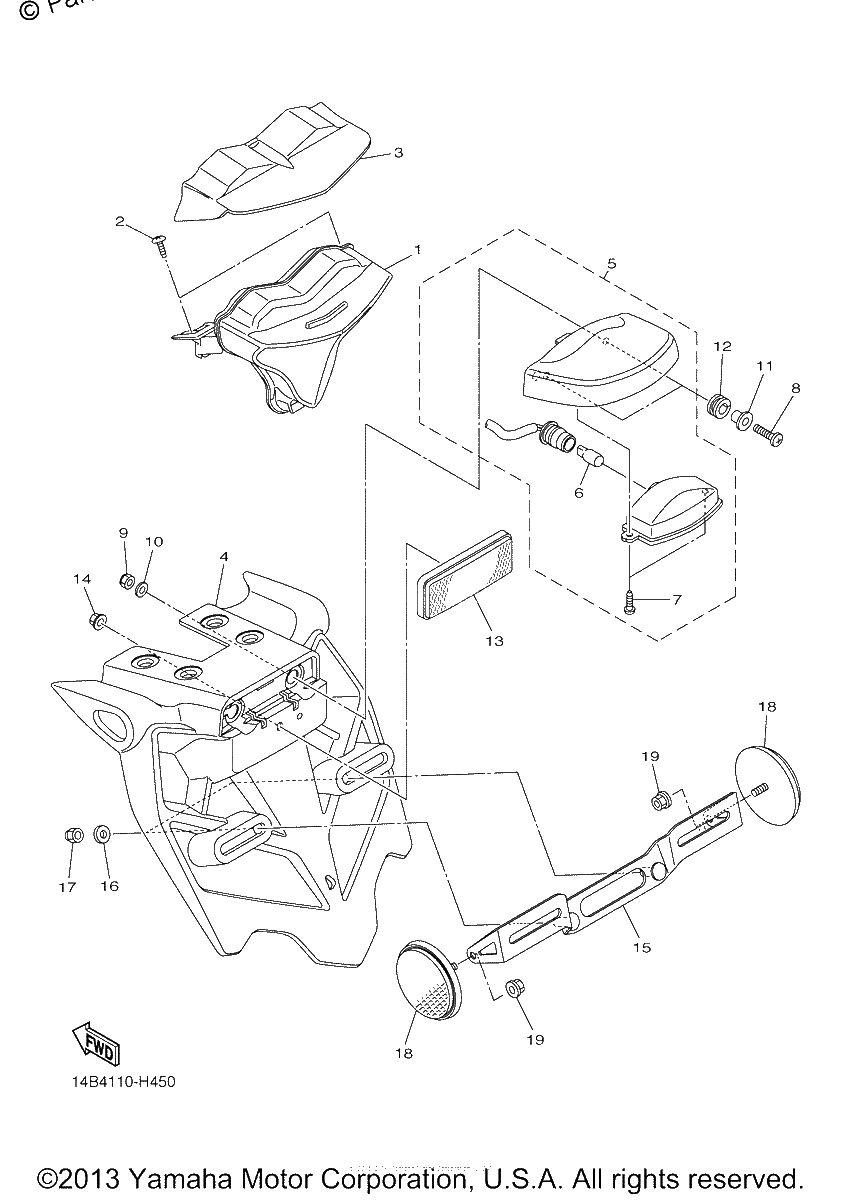

Diagrama de TAILLIGHT

Repuestos

#1
14B-84710-10-00
TAILLIGHT UNIT ASSY
$227.70¢113 850
1
#2
97707-50014-00
SCREW, TRUSS HEAD TAPPING
$6.76¢3 381
1
#3
14B-84516-00-00
COVER, TAILLIGHT
$24.15¢12 075
1
#4
14B-21629-01-00
GUARD, MUD
$39.78¢19 889
1
#5
5VX-84745-01-00
LICENSE LIGHT UNIT ASSY
$95.47¢47 736
1
#6
4SV-84347-00-00
BULB (12V-5W)
$7.04¢3 519
1
#7
97707-40012-00
SCREW, TAPPING
$7.31¢3 657
1
#8
98902-05020-00
SCREW, BIND
$1.58¢788
1
#9
95617-05100-00
NUT, U
$7.30¢3 651
1
#10
92907-05200-00
WASHER
$4.48¢2 242
1
#11
90387-05003-00
COLLAR
$5.08¢2 541
1
#12
90480-11009-00
GROMMET
$0.89¢443
1
#13
3Y6-85130-02-00
Rear Reflector
$24.91¢12 455
1
#14
95607-05200-00
NUT,U FLANGE (replaces 95602-05200-00)
$7.51¢3 755
1
#15
14B-84751-00-00
BRACKET, LICENSE
$30.16¢15 082
1
#16
92990-06600-00
WASHER, PLATE
$3.13¢1 564
1
#17
95617-06100-00
NUT,U (replaces 95602-06100-00)
$2.63¢1 317
1
#18
449-85131-02-00
REFLECTOR, REAR 1
$28.22¢14 110
1
#19
95707-05500-00
NUT, FLANGE
$6.76¢3 381
1
