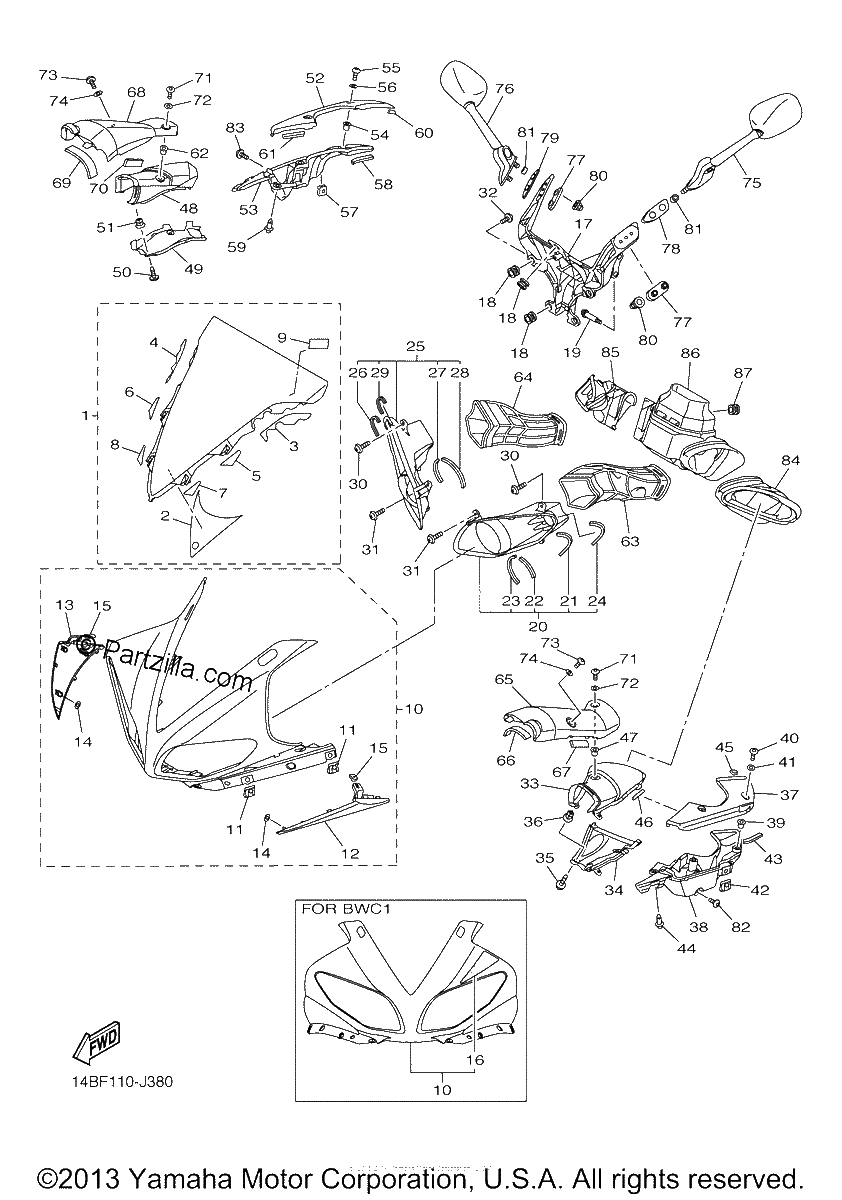

COWLING 1
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#0
PANEL, CONSOLE 2 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$200.41¢100 206
#0
LID 2 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$102.86¢51 431
#0
COVER 1 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$97.39¢48 694
#0
LID 1 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$102.86¢51 431
#0
COVER 2 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$105.63¢52 813
#0
BODY, FRONT UPPER 1 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$1167.65¢583 825
#0
BODY, FRONT UPPER 1 | Use for Color BLUISH WHITE COCKTAIL 1 ( BWC1 / 0390 )
$1133.60¢566 800
#0
DUCT 2 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$172.69¢86 344
#0
DUCT 1 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$111.94¢55 969
#0
PANEL, CONSOLE 1 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$134.60¢67 300
#1
SCREEN
$267.25¢133 625
#2
GRAPHIC, 18
No Disponible
#3
SEAL 1
$12.64¢6 319
#4
SEAL 2
No Disponible
#5
SEAL 3
$6.19¢3 094
#6
SEAL 4
$6.14¢3 069
#7
SEAL 5
$5.74¢2 869
#8
SEAL 6
$5.74¢2 869
#9
LABEL, NOTICE WINDSHIELD 1
$8.92¢4 462
#10
BODY, FRONT UPPER 1 | Use for Color Black Metallic X ( SMX / 0903 )
$885.21¢442 606
#11
PLATE, SPRING
$7.41¢3 706
#12
COVER 1 | Use for Color Black Metallic X ( SMX / 0903 )
$110.45¢55 225
#13
COVER 2 | Use for Color Black Metallic X ( SMX / 0903 )
$115.40¢57 700
#14
NUT, SPRING
$0.50¢250
#15
NUT, SPRING
$2.82¢1 412
#16
GRAPHIC, 13 | Use for Color BLUISH WHITE COCKTAIL 1 ( BWC1 / 0390 )
$28.50¢14 250
#17
STAY 1
$259.13¢129 563
#18
DAMPER
$7.63¢3 813
#19
BOLT, FLANGE
$7.52¢3 762
#20
GRILL ASSY
$52.27¢26 138
#21
DAMPER
$0.96¢481
#22
SEAL 4
$9.60¢4 800
#23
DAMPER, PLATE
$0.96¢481
#24
DAMPER 5
$3.89¢1 944
#25
GRILL ASSY
$52.27¢26 138
#26
DAMPER
$0.96¢481
#27
SEAL 4
$9.60¢4 800
#28
DAMPER, PLATE
$0.96¢481
#29
DAMPER 5
$3.89¢1 944
#30
SCREW, ROUND TAPPING
$7.63¢3 813
#31
SCREW, TRUSS HEAD TAPPING
$3.85¢1 925
#32
SCREW, ROUND TAPPING
$7.43¢3 713
#33
DUCT 1 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$190.04¢95 019
#34
DUCT 3
$14.65¢7 325
#35
SCREW, TRUSS HEAD TAPPING
$3.85¢1 925
#36
GROMMET
$7.48¢3 738
#37
LID 1 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$168.13¢84 063
#38
BOX 3
$25.45¢12 725
#39
BOX 4
$14.65¢7 325
#39
NUT
$6.78¢3 388
#40
BOLT, HEX. SOCKET BUTTON
$7.43¢3 713
#41
WASHER, PLATE
$7.66¢3 831
#42
PLATE, SPRING
$7.41¢3 706
#43
SEAL 4
$9.60¢4 800
#44
RIVET
$8.25¢4 125
#45
DAMPER, PLATE
$7.71¢3 856
#46
DAMPER, PLATE
$7.79¢3 894
#47
NUT
$6.78¢3 388
#48
DUCT 2 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$190.07¢95 038
#49
DUCT 4
$14.65¢7 325
#50
SCREW, TRUSS HEAD TAPPING
$3.85¢1 925
#51
GROMMET
$7.48¢3 738
#52
LID 2 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$141.29¢70 644
#54
NUT
$6.78¢3 388
#55
BOLT, HEX. SOCKET BUTTON
$7.43¢3 713
#56
WASHER, PLATE
$7.66¢3 831
#57
PLATE, SPRING
$7.41¢3 706
#58
SEAL 4
$9.60¢4 800
#59
RIVET
$8.25¢4 125
#60
DAMPER, PLATE
$7.71¢3 856
#61
DAMPER, PLATE
$7.79¢3 894
#62
NUT
$6.78¢3 388
#63
DUCT 5
$36.88¢18 438
#64
DUCT 6
$34.40¢17 200
#65
PANEL, CONSOLE 1 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$200.41¢100 206
#66
DAMPER, 3
$7.95¢3 975
#67
SEAL 1
$10.51¢5 256
#68
PANEL, CONSOLE 2 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$226.95¢113 475
#69
DAMPER, 3
$7.95¢3 975
#70
SEAL 1
$10.51¢5 256
#71
BOLT, HEX. SOCKET BUTTON
$7.43¢3 713
#72
WASHER, PLATE
$7.66¢3 831
#73
BOLT, HEX. SOCKET BUTTON
$7.43¢3 713
#74
WASHER, PLATE
$7.66¢3 831
#75
REAR VIEW MIRROR ASSY (LEFT)
$155.65¢77 825
#76
REAR VIEW MIRROR ASSY (RIGHT)
$155.65¢77 825
#77
PLATE, MIRROR FITTING 1
$7.65¢3 825
#78
BASE, MIRROR (LEFT)
$5.66¢2 831
#79
BASE, MIRROR (RIGHT)
$5.66¢2 831
#80
NUT, CROWN
$4.76¢2 381
#81
COLLAR (J45)
$5.93¢2 963
#82
BOLT, HEX. SOCKET BUTTON
$7.43¢3 713
#83
BOLT, HEX. SOCKET BUTTON
$7.43¢3 713
#84
BOX, SIDE 1
$45.69¢22 844
#85
BOX, SIDE 2
$58.38¢29 188
#86
BOX, FRONT
$111.54¢55 769
#87
GROMMET
$4.63¢2 313
