CRANKCASE COVER 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

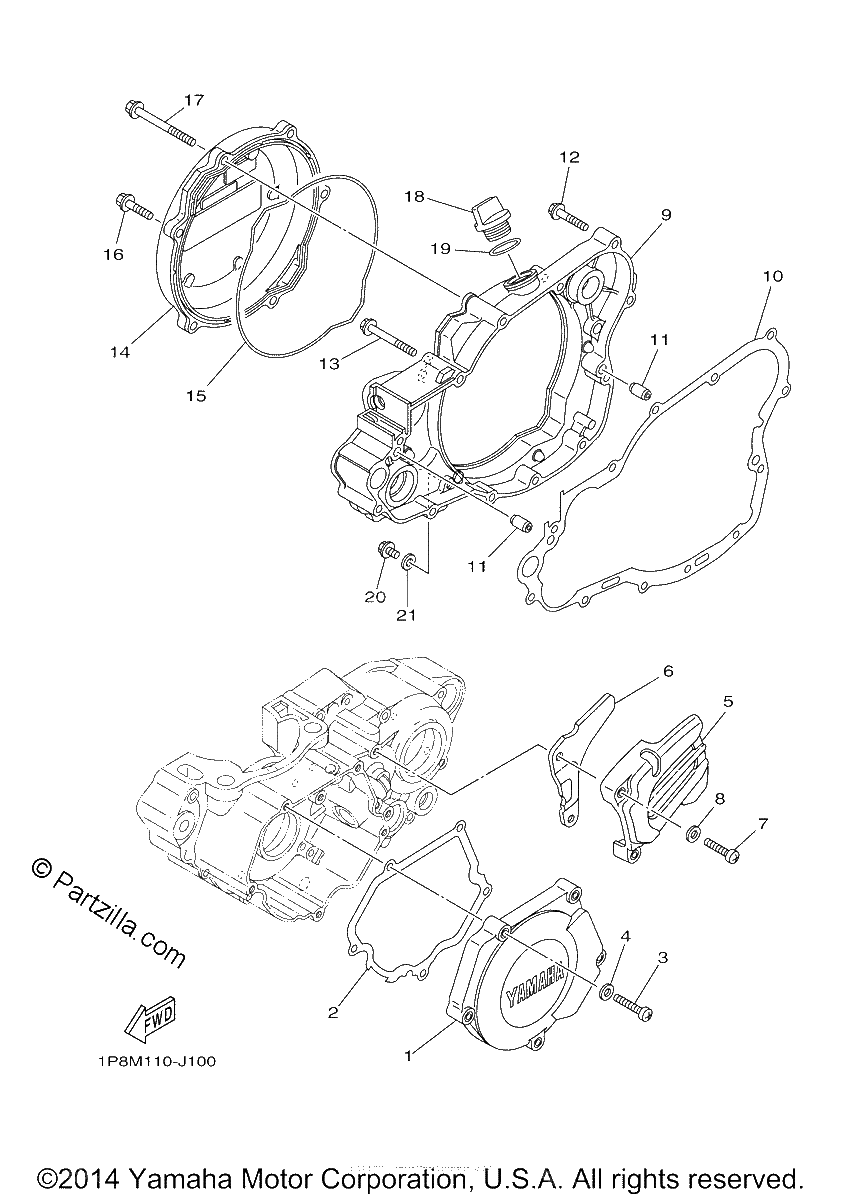

Diagrama de CRANKCASE COVER 1

Repuestos

#1
5CU-15411-10-00
COVER, CRANKCASE 1
$112.94¢56 469
1
#2
5CU-15451-00-00
Gasket, Crankcase
$21.51¢10 756
1
#3
97885-06030-00
SCREW, PAN HEAD
$5.53¢2 763
1
#4
92990-06600-00
WASHER, PLATE
$3.40¢1 700
1
#5
1P8-15421-10-00
COVER, CRANKCASE 2
$74.56¢37 281
1
#6
5HC-17466-00-00
Guide, Chain
$36.46¢18 231
1
#7
97885-06030-00
SCREW, PAN HEAD
$5.53¢2 763
1
#8
92990-06600-00
WASHER, PLATE
$3.40¢1 700
1
#9
5NX-15431-01-00
COVER, CRANKCASE 3
$312.25¢156 125
1
#10
5CU-15462-00-00
Gasket, Crankcase
$18.90¢9 450
1
#11
91808-16023-00
PIN, DOWEL
$6.71¢3 356
1
#12
95022-06030-00
BOLT, FLANGE
$1.68¢838
1
#13
95022-06050-00
BOLT, FLANGE
$1.70¢850
1
#14
5MW-15415-20-00
COVER, GENERATOR
$195.59¢97 794
1
#15
5CU-15463-00-00
GASKET, 2 | INCL. IN CLUTCH PLATE KIT
$12.79¢6 394
1
#16
95022-06025-00
BOLT, FLANGE
$1.75¢875
1
#17
95022-06065-00
BOLT, FLANGE
$2.11¢1 056
1
#18
3Y1-15363-10-00
PLUG, OIL
$20.35¢10 175
1
#19
93210-19123-00
O-Ring
$8.24¢4 119
1
#20
95022-06010-00
BOLT, FLANGE
$6.49¢3 244
1
#21
90430-06014-00
GASKET
$8.25¢4 125
1
