CARBURETOR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

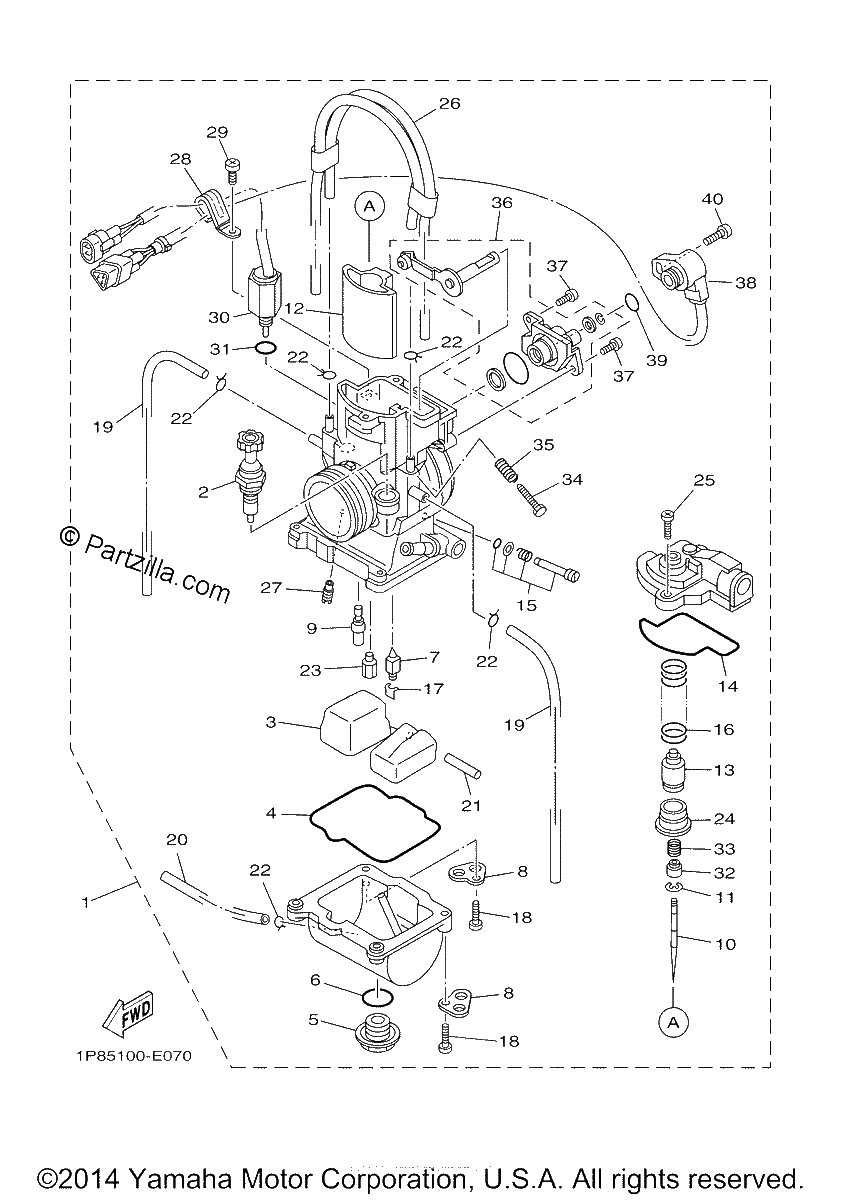

Diagrama de CARBURETOR

Repuestos

#0
4MX-14948-07-00
JET, SLOW (#50) | STD
$9.12¢4 560
1
#0
4MX-14948-08-00
JET, SLOW (#52) | AP
$9.12¢4 560
1
#0
4MX-14943-91-00
JET, MAIN (#168) | AP
$11.04¢5 520
1
#0
4MX-14943-93-00
JET, MAIN (#178) | STD
$11.04¢5 520
1
#0
4MX-14943-94-00
JET, MAIN (#182) | AP
$11.04¢5 520
1
#0
4MX-14943-95-00
JET, MAIN (#188) | AP
$11.43¢5 716
1
#0
4MX-14948-02-00
JET, SLOW (#38) | AP
$16.90¢8 452
1
#0
4MX-14948-03-00
JET, SLOW (#40) | AP
$17.39¢8 694
1
#0
4MX-14948-04-00
JET, SLOW (#42) | AP
$9.12¢4 560
1
#0
4MX-14948-05-00
JET, SLOW (#45) | AP
$9.12¢4 560
1
#0
4MX-14948-09-00
JET, SLOW (#55) | AP
$9.43¢4 715
1
#0
4MX-14943-44-00
JET, MAIN (#185) | AP
$10.89¢5 445
1
#0
4MX-14948-10-00
JET, SLOW (#58) | AP
$17.39¢8 694
1
#0
4MX-14948-11-00
JET, SLOW (#60) | AP
$17.96¢8 981
1
#0
4MX-14948-12-00
JET, SLOW (#62) | AP
$17.96¢8 981
1
#0
4SR-14916-CJ-00
NEEDLE (N3CJ) | AP
$32.46¢16 232
1
#0
4SR-14916-CW-00
NEEDLE (N3CW) | AP
$28.37¢14 185
1
#0
4SR-14916-EH-00
NEEDLE (N3EH) | AP
$28.78¢14 392
1
#0
4SR-14916-EJ-00
NEEDLE (N3EJ) | AP
$26.59¢13 294
1
#0
4SR-14916-EW-00
NEEDLE (N3EW) | STD
$26.52¢13 259
1
#0
4MX-14943-45-00
JET, MAIN (#190) | AP
$11.12¢5 560
1
#0
4MX-14943-90-00
JET, MAIN (#162) | AP
$10.88¢5 440
1
#0
4MX-14943-43-00
JET, MAIN (#180) | AP
$11.04¢5 520
1
#0
4MX-14943-42-00
JET, MAIN (#175) | AP
$11.04¢5 520
1
#0
4JT-1494F-07-00
JET (#50) | STD
$15.48¢7 740
1
#0
4JT-1494F-09-00
JET (#55) | AP
$16.01¢8 004
1
#0
4JT-1494F-11-00
JET (#60) | AP
$14.34¢7 170
1
#0
4JT-1494F-13-00
JET (#65) | AP
$16.01¢8 004
1
#0
4SR-14916-RH-00
NEEDLE (N8RH) | AP
$18.14¢9 068
1
#0
4MX-14943-41-00
JET, MAIN (#170) | AP
$11.33¢5 664
1
#0
4MX-14943-40-00
JET, MAIN (#165) | AP
$11.04¢5 520
1
#1
1P8-14101-60-00
CARBURETOR ASSY 1
No Disponible
1
#2
4JT-14171-00-00
PLUNGER, STARTER
$38.31¢19 153
1
#3
4SR-14985-00-00
FLOAT
$64.38¢32 188
1
#4
4JT-14984-00-00
GASKET, FLOAT CHAMBER
$23.98¢11 989
1
#5
4MX-14115-00-00
PLUG, SCREW
$31.31¢15 657
1
#6
4MX-14561-00-00
O-RING
$6.46¢3 231
1
#7
4MX-14392-00-00
VALVE, NEEDLE
$41.76¢20 878
1
#8
5BE-14146-00-00
PLATE
$8.16¢4 082
1
#9
4MX-14948-06-00
JET, SLOW (#48) | AP
$9.12¢4 560
1
#10
4SR-14916-RW-00
NEEDLE (N8RW) | AP
$32.46¢16 232
1
#11
4MX-14919-00-00
CLIP
$7.04¢3 519
1
#12
5HC-14340-A7-00
VALVE ASSY
$210.12¢105 058
1
#13
5HC-14261-00-00
HOLDER
$42.53¢21 263
1
#14
5HC-14126-00-00
GASKET
$16.31¢8 153
1
#15
4SR-14105-00-00
PILOT SCREW SET
$18.58¢9 292
1
#16
5HC-14131-00-00
SPRING, THROTTLE VALVE
$25.24¢12 621
1
#17
633-14159-00-00
CLIP
$15.23¢7 613
1
#18
98580-04014-00
SCREW, PAN HEAD
$3.06¢1 529
1
#19
4XL-14197-10-00
PIPE
$9.69¢4 847
1
#20
4XL-14196-10-00
PIPE, OVER FLOW 1
$10.63¢5 313
1
#21
663-14548-00-00
PIN, FLOAT ARM
$5.58¢2 789
1
#22
3TJ-14137-40-00
Clip
$7.04¢3 519
1
#23
4MX-14943-92-00
JET, MAIN (#172) | AP
$11.04¢5 520
1
#24
4MX-14194-00-00
RING
$22.20¢11 098
1
#25
98502-04012-00
SCREW, PAN HEAD
No Disponible
1
#26
4XL-1410E-00-00
HOSE
$42.62¢21 310
1
#27
4JT-1494F-03-00
JET (#40) | AP
$15.48¢7 740
1
#28
5HC-14146-00-00
PLATE
$7.50¢3 749
1
#29
98580-04006-00
SCREW, PAN HEAD
$3.58¢1 788
1
#30
5NX-1410H-10-00
FUEL CUT SOLENOID VALVE
$267.95¢133 975
1
#31
4JT-14147-00-00
O-RING
$4.67¢2 335
1
#32
5HC-14264-00-00
COLLAR
$38.04¢19 021
1
#33
5HC-14275-00-00
SPRING
$7.28¢3 640
1
#34
5HC-14922-00-00
SCREW, THROTTLE
$17.34¢8 671
1
#35
5HC-14934-00-00
SPRING, THROTTLE STOP
$7.82¢3 910
1
#36
1P8-14208-00-00
LEVER COMP. 1
$112.72¢56 361
1
#37
5HC-14216-00-00
SCREW
$5.35¢2 674
1
#38
5NX-85885-10-00
THROTTLE SENSOR ASSY
$220.74¢110 371
1
#39
33D-14562-00-00
O-RING
$7.52¢3 760
1
#40
1DX-14216-00-00
Screw
$5.85¢2 927
1
