TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

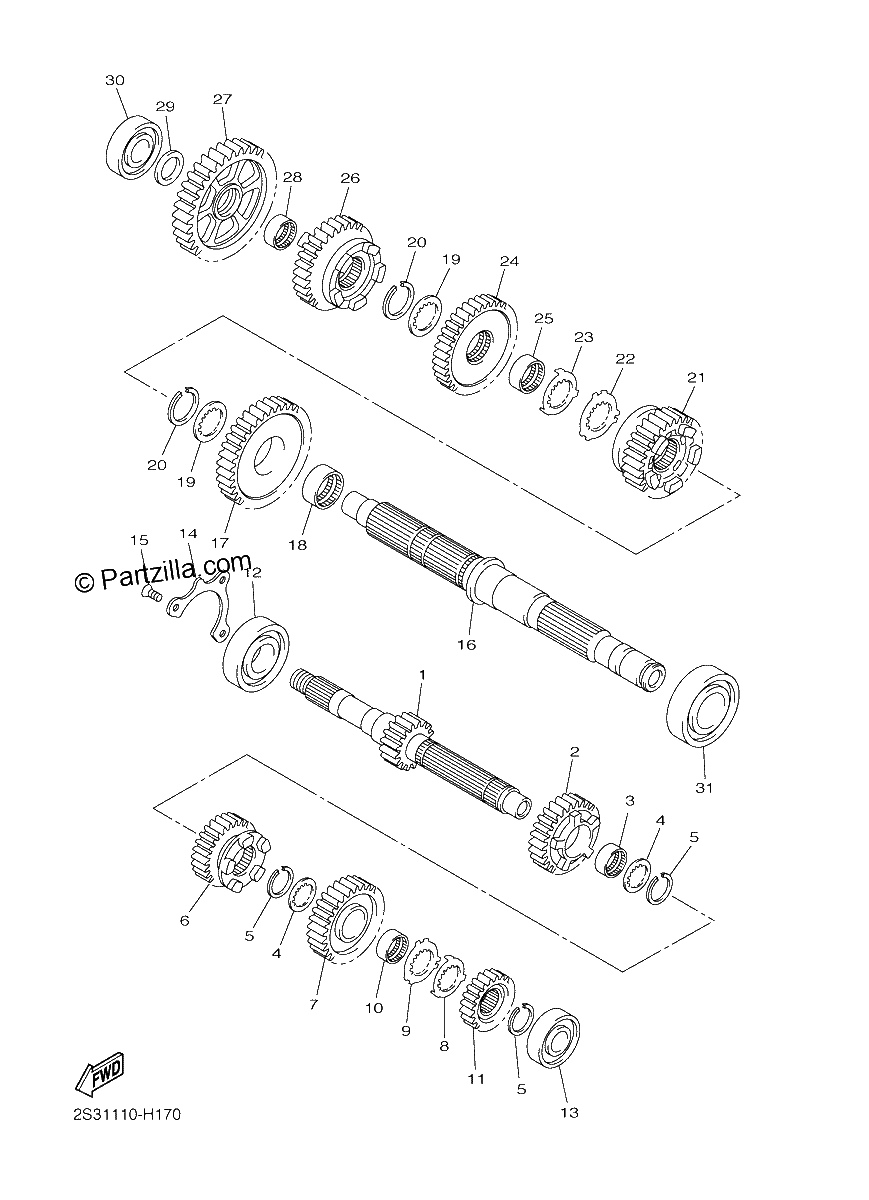

Diagrama de TRANSMISSION

Repuestos

#1
2S3-17411-00-00
AXLE, MAIN( 16T)
$283.51¢141 755
1
#2
2S3-17141-00-00
GEAR, 4TH PINION (26T)
$124.33¢62 163
1
#3
90387-28003-00
COLLAR
$26.20¢13 099
1
#4
90209-25011-00
WASHER
$7.91¢3 956
1
#5
93440-28184-00
CIRCLIP
$4.06¢2 030
1
#6
2S3-17131-01-00
GEAR, 3RD PINION (25T)
$209.82¢104 909
1
#7
2S3-17151-01-00
GEAR, 5TH PINION (31T)
$149.48¢74 738
1
#8
90214-25003-00
WASHER, CLAW
$7.95¢3 973
1
#9
90214-25004-00
WASHER, CLAW
$7.93¢3 968
1
#10
90387-25025-00
COLLAR
$26.24¢13 122
1
#11
2S3-17121-00-00
GEAR, 2ND PINION (21T)
$122.74¢61 370
1
#12
93306-30610-00
BEARING
$92.24¢46 121
1
#13
93306-37214-00
BEARING
$60.88¢30 440
1
#14
2S3-15383-00-00
PLATE, BEARING COVER
$16.16¢8 079
1
#15
90151-06024-00
SCREW, COUNTERSUNK
$7.15¢3 577
1
#16
2S3-17402-00-00
DRIVE AXLE ASSY
$303.51¢151 754
1
#17
2S3-17221-00-00
GEAR, 2ND WHEEL (38T)
$155.79¢77 895
1
#18
90387-3311C-00
COLLAR
$17.27¢8 637
1
#19
90209-30344-00
WASHER
$8.66¢4 330
1
#20
93440-32063-00
CIRCLIP
$9.04¢4 520
1
#21
2S3-17251-01-00
GEAR, 5TH WHEEL (29T)
$193.71¢96 853
1
#22
90209-30345-00
WASHER
$12.14¢6 072
1
#23
90209-30343-00
WASHER
$11.71¢5 853
1
#24
2S3-17231-00-00
GEAR, 3RD WHEEL (35T)
$138.64¢69 322
1
#25
90387-3310V-00
COLLAR
$43.32¢21 660
1
#26
2S3-17241-00-00
GEAR, 4TH WHEEL (29T)
$252.60¢126 299
1
#27
2S3-17211-00-00
GEAR, 1ST WHEEL (38T)
$228.91¢114 454
1
#28
90387-25008-00
COLLAR
$32.55¢16 273
1
#29
90201-224L4-00
WASHER, PLATE
$7.70¢3 852
1
#30
93306-37214-00
BEARING
$60.88¢30 440
1
#31
93306-20714-00
BEARING
$82.21¢41 107
1
