MIDDLE DRIVE GEAR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

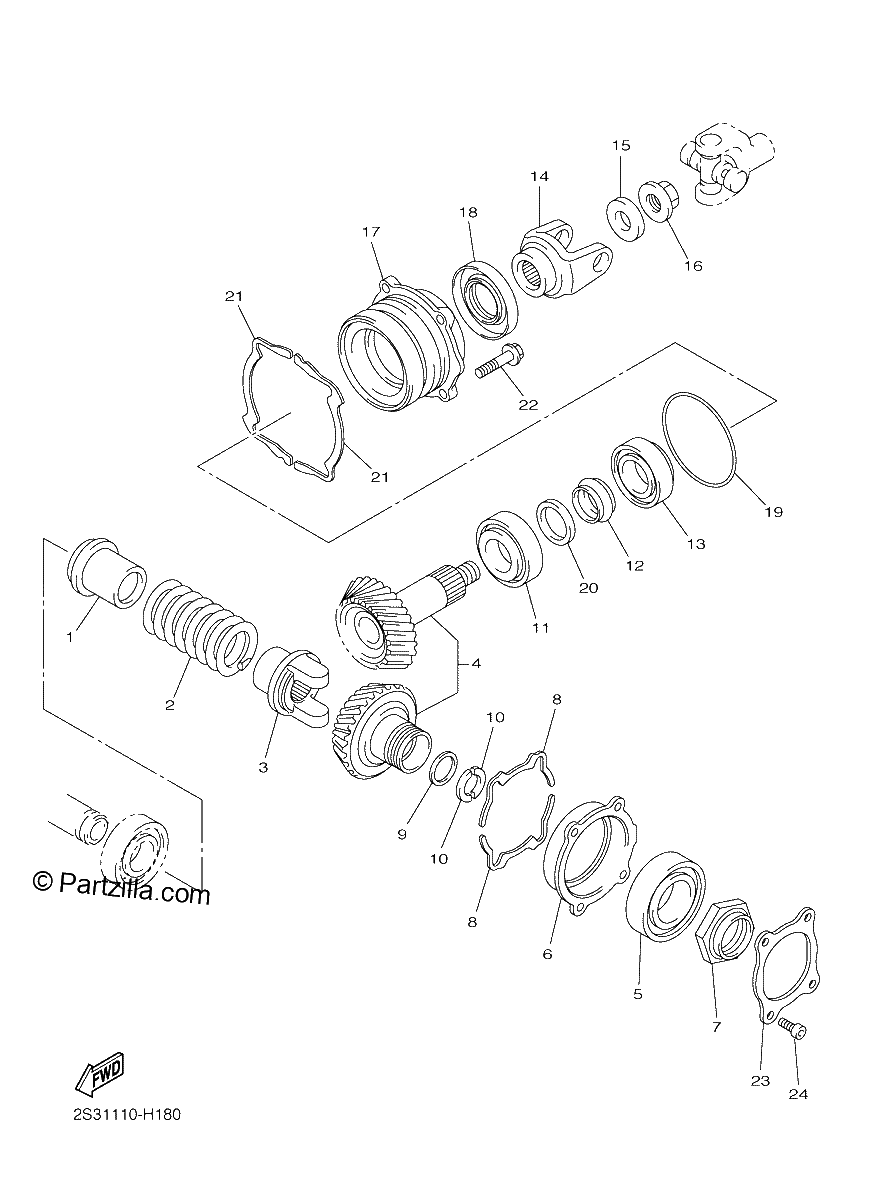

Diagrama de MIDDLE DRIVE GEAR

Repuestos

#1
2S3-17524-00-00
HOLDER This item has been discontinued and may not be available. Contact us for more information.
No Disponible
1
#2
2S3-17528-00-00
SPRING, DAMPER
$49.15¢24 575
1
#3
2S3-17527-00-00
Cam, Driven
$142.98¢71 490
1
#4
2S3-Y1754-00-00
MIDDLE GEAR COMP.
$776.24¢388 119
1
#5
93306-20903-00
BEARING
$83.28¢41 642
1
#6
2S3-15163-00-00
HOUSING, BEARING 1
$152.51¢76 257
1
#7
90179-44001-00
Nut
$26.32¢13 162
1
#8
2S3-17531-00-00
SHIM, PINION
$10.90¢5 451
1
#8
2S3-17531-10-00
SHIM, PINION
$10.90¢5 451
1
#8
2S3-17531-20-00
SHIM, PINION
$10.90¢5 451
1
#8
2S3-17531-30-00
SHIM, PINION
$10.90¢5 451
1
#8
2S3-17531-40-00
SHIM, PINION
$10.90¢5 451
1
#8
2S3-17531-50-00
SHIM, PINION
$10.90¢5 451
1
#9
90201-27014-00
WASHER, plate
$33.38¢16 692
1
#10
2S3-17529-00-00
WASHER, THRUST This item has been discontinued and may not be available. Contact us for more information.
No Disponible
1
#11
93332-000A1-00
BEARING
$60.41¢30 205
1
#12
2S3-17571-00-00
SPACER, EXPANSION This item has been discontinued and may not be available. Contact us for more information.
$19.25¢9 625
1
#13
93332-000A0-00
BEARING
$68.39¢34 195
1
#14
2S3-17556-01-00
YOKE, JOINT
$186.09¢93 047
1
#15
90208-22004-00
WASHER, CONICAL SPRING
$22.33¢11 167
1
#16
90179-20015-00
NUT
$26.65¢13 323
1
#17
2S3-17551-00-00
HOUSING, BEARING This item has been discontinued and may not be available. Contact us for more information.
No Disponible
1
#18
93102-45009-00
Oil Seal
$22.23¢11 115
1
#19
93210-94001-00
O-Ring
$9.51¢4 755
1
#20
90201-35014-00
WASHER, plate
$25.30¢12 650
1
#21
2S3-17537-40-00
SHIM, THRUST
$11.83¢5 917
1
#21
2S3-17537-00-00
SHIM, THRUST This item has been discontinued and may not be available. Contact us for more information.
No Disponible
1
#21
2S3-17537-20-00
SHIM, THRUST This item has been discontinued and may not be available. Contact us for more information.
No Disponible
1
#21
2S3-17537-10-00
SHIM, THRUST This item has been discontinued and may not be available. Contact us for more information.
No Disponible
1
#21
2S3-17537-30-00
SHIM, THRUST This item has been discontinued and may not be available. Contact us for more information.
No Disponible
1
#21
2S3-17537-50-00
SHIM, THRUST This item has been discontinued and may not be available. Contact us for more information.
No Disponible
1
#22
90105-08108-00
BOLT, FLANGE
$7.30¢3 651
1
#23
2S3-17446-00-00
PLATE
$87.80¢43 901
1
#24
90110-08067-00
BOLT, HEXAGON SOCKET HEAD
$6.83¢3 415
1
