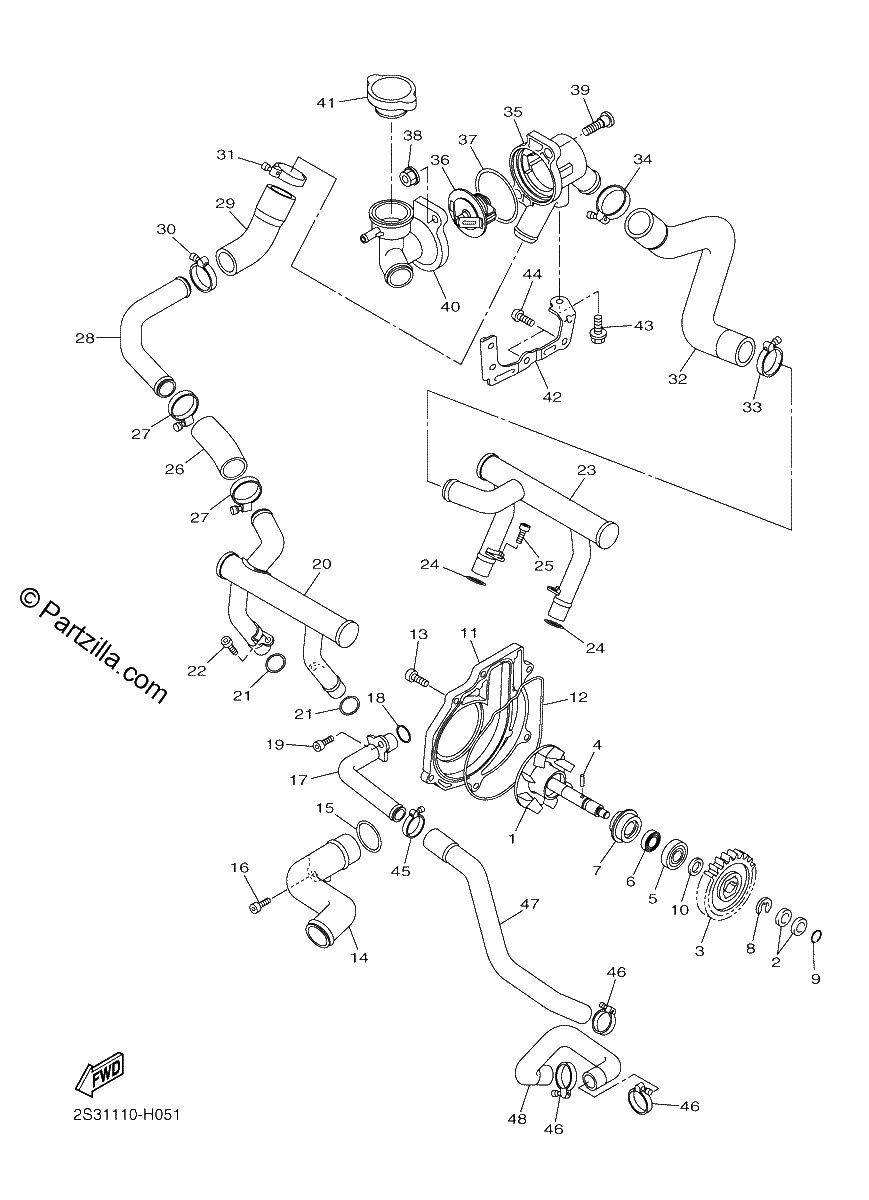

WATER PUMP
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
IMPELLER SHAFT ASSY
$76.41¢38 203
#2
WASHER, PLATE
$8.63¢4 313
#3
GEAR, IMPELLER SHAFT
$18.53¢9 263
#4
PIN, DOWEL
$5.75¢2 875
#5
BEARING
$27.84¢13 921
#6
OIL SEAL, SD-TYPE
$11.10¢5 549
#7
SEAL, MECHANICAL
$46.98¢23 489
#8
CIRCLIP
$3.37¢1 685
#9
CIRCLIP
$3.44¢1 719
#10
WASHER, PLATE
$6.55¢3 278
#11
COVER, HOUSING
$170.53¢85 267
#12
GASKET, COVER
$19.24¢9 620
#13
BOLT, HEXAGON SOCKET HEAD
$2.24¢1 121
#14
PIPE 3
$68.36¢34 178
#15
O-Ring
$7.56¢3 778
#16
BOLT, HEXAGON SOCKET HEAD
$6.75¢3 375
#17
PIPE 5
$41.91¢20 953
#18
O-RING
$5.45¢2 726
#19
BOLT, HEXAGON SOCKET HEAD
$6.75¢3 375
#20
PIPE 1
$127.79¢63 894
#21
O-RING
$6.32¢3 162
#22
BOLT
$5.37¢2 685
#23
PIPE 2
$126.81¢63 405
#24
O-RING
$6.32¢3 162
#25
BOLT
$5.37¢2 685
#26
HOSE 6
$7.64¢3 818
#27
HOSE CLAMP ASSY
$13.74¢6 871
#28
PIPE 4
$45.13¢22 563
#29
HOSE 7
$11.85¢5 923
#30
HOSE CLAMP ASSY
$13.74¢6 871
#31
HOSE CLAMP ASSY
$16.70¢8 349
#32
HOSE 2
$31.76¢15 881
#33
HOSE CLAMP ASSY
$13.74¢6 871
#34
HOSE CLAMP ASSY
$16.70¢8 349
#35
HOUSING, THERMOSTAT
$39.67¢19 838
#36
THERMOSTAT
$37.23¢18 613
#37
O-RING
$6.43¢3 214
#38
NUT, FLANGE
$2.24¢1 121
#39
BOLT
$16.48¢8 240
#40
SUPT, FILLER NECK
$74.30¢37 151
#41
CAP, RADIATOR
$34.52¢17 261
#42
STAY
$28.45¢14 225
#43
BOLT, FLANGE
$3.29¢1 644
#44
BOLT, HEX. SOCKET BUTTON
$2.90¢1 449
#45
HOSE CLAMP ASSY
$9.44¢4 721
#46
HOSE CLAMP ASSY
$11.53¢5 767
#47
HOSE 5
$32.74¢16 370
#48
HOSE 4
$29.03¢14 513
