CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

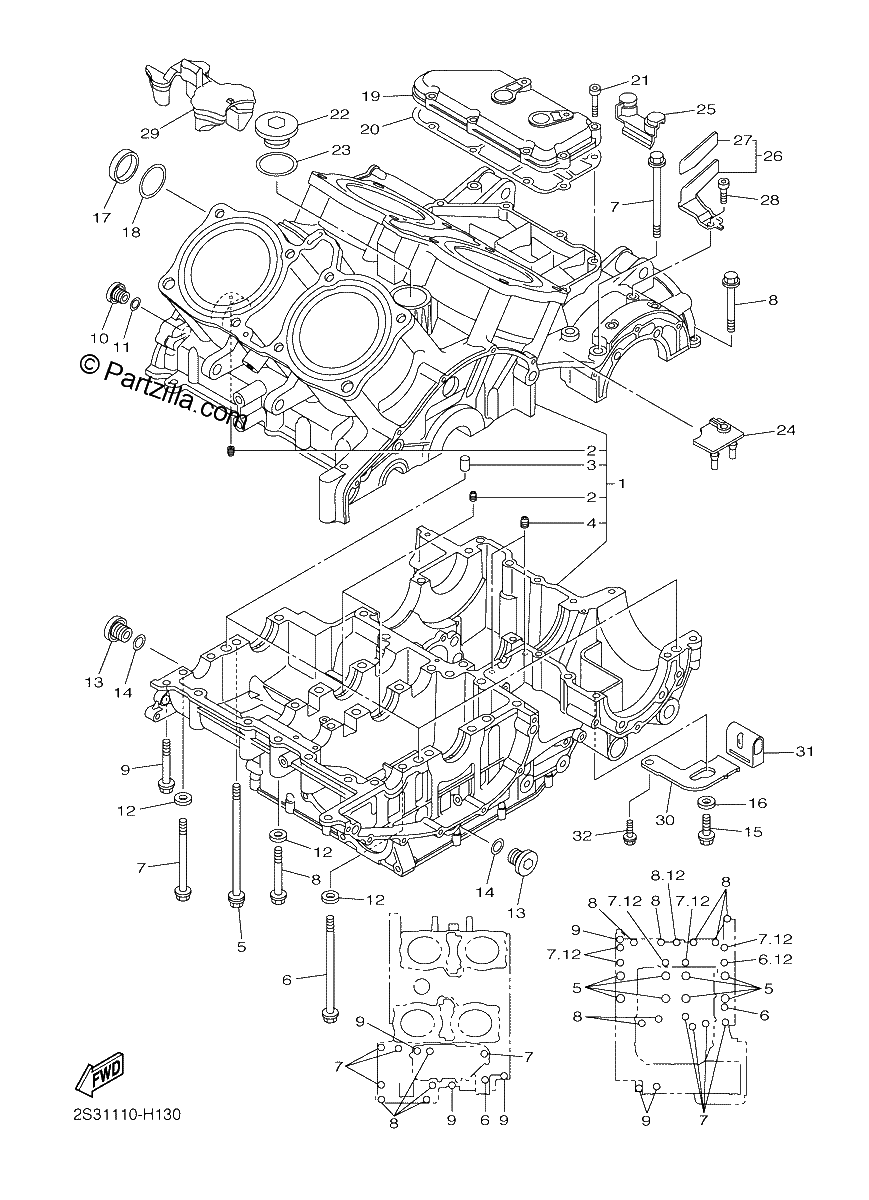

Diagrama de CRANKCASE

Repuestos

#1
2S3-15100-11-00
Crankcase Assy
$5883.39¢2 941 694
1
#2
4H7-15138-00-00
. NOZZLE 1
$6.43¢3 214
1
#3
99530-10014-00
PIN, DOWEL
$2.50¢1 248
1
#4
2S3-15148-00-00
NOZZLE 2
$6.22¢3 111
1
#5
90119-10035-00
BOLT, WITH WASHER
$7.90¢3 950
1
#6
95812-08110-00
BOLT, FLANGE
$6.42¢3 209
1
#7
95812-08090-00
Bolt, Flange
$3.68¢1 840
1
#8
95812-08065-00
Bolt, Flange
$3.86¢1 932
1
#9
95812-06065-00
BOLT, FLANGE
$5.65¢2 823
1
#10
90340-14011-00
PLUG, STRAIGHT SCREW
$21.61¢10 804
1
#11
93210-14369-00
O-Ring
$6.36¢3 180
1
#12
90201-08093-00
WASHER, plate
$6.88¢3 439
1
#13
4H7-15189-00-00
PLUG
$28.30¢14 151
1
#14
93210-207A0-00
O-Ring
$1.06¢529
1
#15
95022-08016-00
Bolt, Flange
$0.78¢391
1
#16
90430-08119-00
GASKET
$6.36¢3 180
1
#17
2S3-12564-00-00
PIPE, WATER
$14.00¢6 998
1
#18
93210-34504-00
O-Ring
$9.12¢4 560
1
#19
2S3-15413-00-00
Cover
$132.66¢66 332
1
#20
2S3-15463-00-00
GASKET, COVER PINION
$7.38¢3 691
1
#21
91312-06025-00
BOLT, HEXAGON SOCKET HEAD
$2.24¢1 121
1
#22
90340-36003-00
PLUG, STRAIGHT SCREW
$25.37¢12 684
1
#23
93210-35001-00
O-Ring
$3.66¢1 829
1
#24
2S3-15416-00-00
COVER, OIL PUMP
$8.56¢4 278
1
#25
2S3-15486-00-00
Grommet
$10.15¢5 077
1
#26
2S3-81328-00-00
Clamp
$21.76¢10 879
1
#27
2S3-1471P-00-00
SEAT, 6
$1.55¢776
1
#28
90110-06193-00
BOLT, HEXAGON SOCKET HEAD
$1.35¢673
1
#29
2S3-15428-00-00
COVER, CHAIN CASE 2
$46.51¢23 253
1
#30
2S3-21329-00-00
PLATE
$7.11¢3 553
1
#31
2S3-2139X-00-00
Damper
$39.33¢19 665
1
#32
90105-06080-00
BOLT, FLANGE
$5.97¢2 984
1
