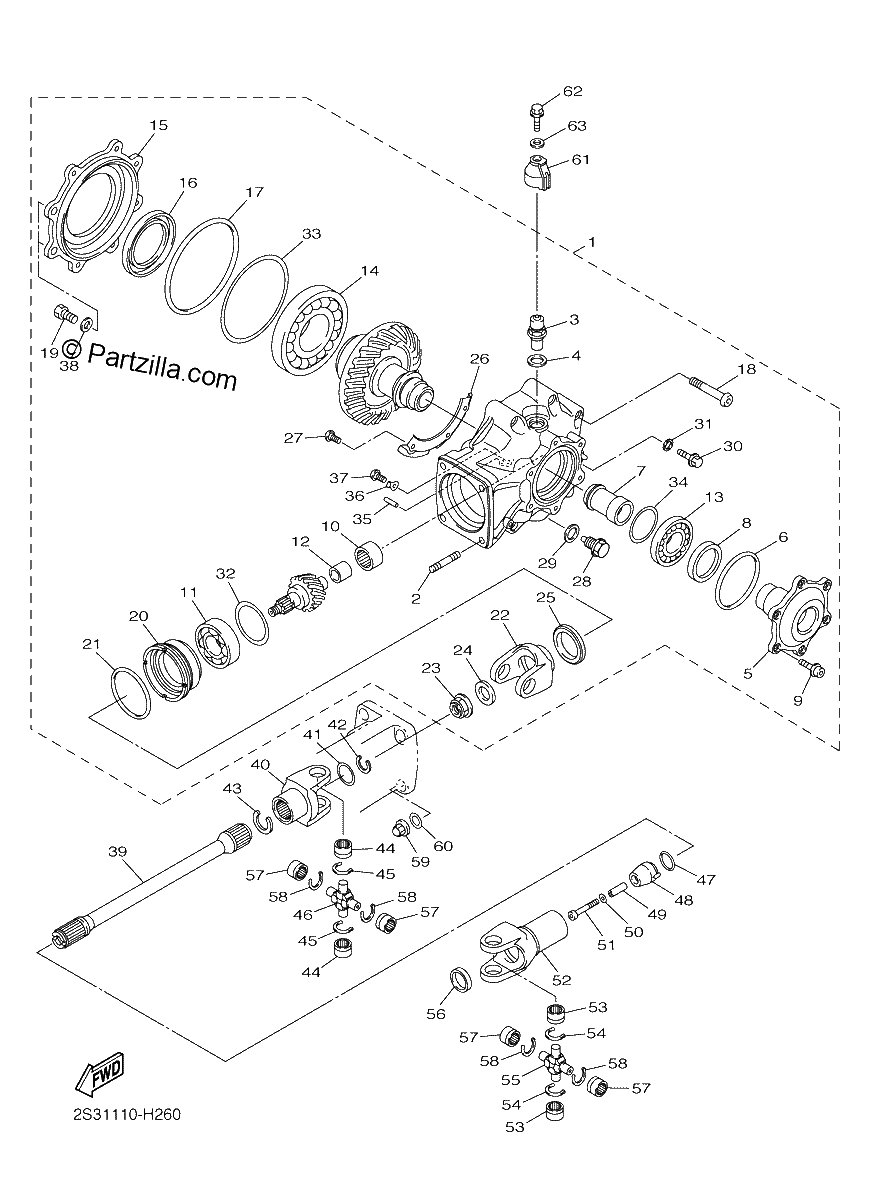

DRIVE SHAFT
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
REAR AXLE GEAR CASE ASSY
$2483.74¢1 241 869
#2
. BOLT, STUD
$7.40¢3 700
#3
BREATHER ASSY
$189.16¢94 581
#4
GASKET
$9.60¢4 800
#5
PLATE
$312.79¢156 394
#6
O-RING
$10.61¢5 306
#7
COLLAR, GUIDE
$87.36¢43 681
#8
OIL SEAL
$20.26¢10 131
#9
BOLT, HEXAGON SOCKET HEAD
$3.34¢1 669
#10
BEARING
$56.15¢28 075
#11
BEARING
$99.70¢49 850
#12
RACE, INNER
$27.50¢13 750
#13
BEARING
$110.56¢55 281
#14
BEARING
$291.11¢145 556
#15
HOUSING, BEARING
$196.54¢98 269
#16
OIL SEAL
$25.34¢12 669
#17
O-RING
$27.41¢13 706
#18
BOLT, BUTTON HEAD
$4.49¢2 244
#19
BOLT
$6.76¢3 381
#20
RETAINER, BEARING
$226.29¢113 144
#21
O-RING
$16.59¢8 294
#22
YOKE, JOINT
$202.27¢101 137
#23
NUT
$28.96¢14 481
#24
WASHER, CONICAL SPRING
$24.28¢12 138
#25
OIL SEAL
$26.36¢13 181
#26
PLATE, COVER
$27.86¢13 931
#27
SCREW
$6.39¢3 194
#28
PLUG, STRAIGHT SCREW
$17.15¢8 575
#29
GASKET
$3.23¢1 613
#30
BOLT, FLG.(SMALL HEAD)
$3.70¢1 850
#31
GASKET
$4.11¢2 056
#32
SHIM, THRUST (T0.25) | UR
$10.08¢5 038
#32
SHIM, THRUST (T0.6) | UR
$10.08¢5 038
#32
SHIM, THRUST (T0.2) | UR
$10.08¢5 038
#32
SHIM, THRUST (T0.5) | UR
$10.08¢5 038
#32
SHIM, THRUST (T0.45) | UR
$10.08¢5 038
#32
SHIM, THRUST (T0.4) | UR
$10.08¢5 038
#32
SHIM, THRUST (T0.3) | UR
$10.08¢5 038
#32
SHIM, THRUST (T0.15) | UR
$10.08¢5 038
#33
SHIM, RING GEAR (T0.2) | UR
$33.50¢16 750
#33
SHIM, RING GEAR (T0.25) | UR
$33.50¢16 750
#33
SHIM, RING GEAR (T0.3) | UR
$33.50¢16 750
#33
SHIM, RING GEAR (T0.35) | UR
$33.50¢16 750
#33
SHIM, RING GEAR (T0.4) | UR
$33.50¢16 750
#33
SHIM, RING GEAR (T0.45) | UR
$33.50¢16 750
#33
SHIM, RING GEAR (T0.5) | UR
$33.50¢16 750
#33
SHIM, RING GEAR (T0.1) | UR
$33.50¢16 750
#33
SHIM, RING GEAR (T0.15) | UR
$33.50¢16 750
#34
WASHER, THRUST (T1.7) | UR
$10.22¢5 113
#34
WASHER, THRUST (T1.3) | UR
$10.22¢5 113
#34
WASHER, THRUST (T2.1) | UR
$10.22¢5 113
#34
WASHER, THRUST (T2.0) | UR
$10.22¢5 113
#34
WASHER, THRUST (T1.9) | UR
$10.22¢5 113
#34
WASHER, THRUST (T1.2) | UR
$10.22¢5 113
#34
WASHER, THRUST (T1.4) | UR
$10.22¢5 113
#34
WASHER, THRUST (T1.5) | UR
$10.22¢5 113
#34
WASHER, THRUST (T1.8) | UR
$10.22¢5 113
#34
WASHER, THRUST (T1.6) | UR
$10.22¢5 113
#35
PIN, DOWEL
$2.56¢1 281
#36
HOLDER
$6.76¢3 381
#37
SCREW
$6.39¢3 194
#38
WASHER, PLATE
$7.79¢3 894
#39
SHAFT, drive
$321.80¢160 900
#40
YOKE, JOINT
$202.27¢101 137
#41
WASHER, PLATE
$9.47¢4 738
#42
CIRCLIP
$7.09¢3 544
#43
CIRCLIP
$4.28¢2 138
#44
BEARING
$25.70¢12 850
#45
CIRCLIP
$3.26¢1 631
#46
SPIDER
$88.73¢44 363
#47
O-RING
$7.10¢3 550
#48
CAP
$17.56¢8 781
#49
COLLAR
$4.28¢2 138
#50
WASHER
$0.96¢481
#51
BOLT, HEXAGON SOCKET HEAD
$4.00¢2 000
#52
YOKE, JOINT
$326.51¢163 256
#53
BEARING
$25.70¢12 850
#54
CIRCLIP
$3.26¢1 631
#55
SPIDER
$88.73¢44 363
#56
PLUG
$7.99¢3 994
#57
BEARING
$25.70¢12 850
#58
CIRCLIP
$3.26¢1 631
#59
NUT, CROWN
$7.81¢3 906
#60
WASHER, PLATE
$3.29¢1 644
#61
COVER 1
$83.28¢41 638
#62
BOLT, FLANGE (SMALL HEAD)
$5.34¢2 669
#63
GASKET
$8.25¢4 125
