TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

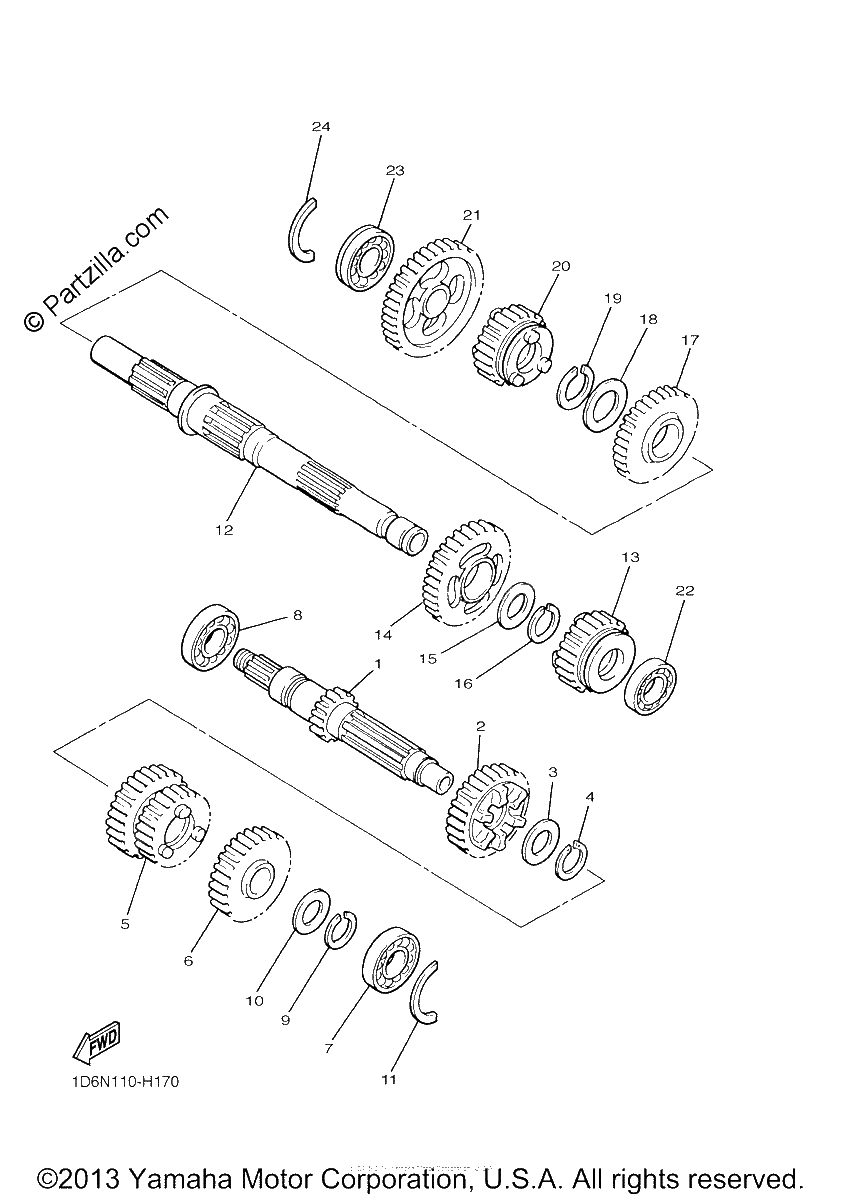

Diagrama de TRANSMISSION

Repuestos

#1
4XY-17411-00-00
AXLE, MAIN (17T)
$213.50¢106 749
1
#2
4XY-17141-00-00
GEAR, 4TH PINION (25T)
$84.04¢42 021
1
#3
90209-25196-00
WASHER
$3.15¢1 576
1
#4
93440-28062-00
CIRCLIP,OUTER
$7.30¢3 651
1
#5
4XY-17121-00-00
GEAR, 2ND/3RD PINION (19/25T)
$161.63¢80 816
1
#6
4XY-17151-00-00
GEAR, 5TH PINION (28T)
$104.49¢52 244
1
#7
93306-30430-00
BEARING
$51.41¢25 703
1
#8
93306-36401-00
BEARING
$74.38¢37 191
1
#9
93410-23056-00
CIRCLIP
$6.53¢3 266
1
#10
90201-232K5-00
WASHER, PLATE
$6.99¢3 496
1
#11
93440-52118-00
CIRCLIP
$2.36¢1 179
1
#12
4NK-17402-00-00
DRIVE AXLE ASSY
$181.96¢90 982
1
#13
4XY-17251-00-00
GEAR, 5TH WHEEL (22T)
$130.42¢65 211
1
#14
4XY-17221-00-00
GEAR, 2ND WHEEL (31T)
$115.78¢57 891
1
#15
90209-32231-00
WASHER
$10.52¢5 261
1
#16
93440-34025-00
CIRCLIP
$6.43¢3 214
1
#17
4XY-17231-00-00
GEAR, 3RD WHEEL (30T)
$109.19¢54 596
1
#18
90209-27192-00
WASHER
$7.68¢3 841
1
#19
93440-30077-00
CIRCLIP
$10.80¢5 399
1
#20
4XY-17241-00-00
GEAR, 4TH WHEEL (24T)
$116.43¢58 213
1
#21
4XY-17211-00-00
GEAR, 1ST WHEEL (43T)
$135.09¢67 545
1
#22
93306-20645-00
BEARING
$44.18¢22 092
1
#23
93306-20555-00
BEARING
$33.12¢16 560
1
#24
93440-52118-00
CIRCLIP
$2.36¢1 179
1
