ELECTRICAL 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

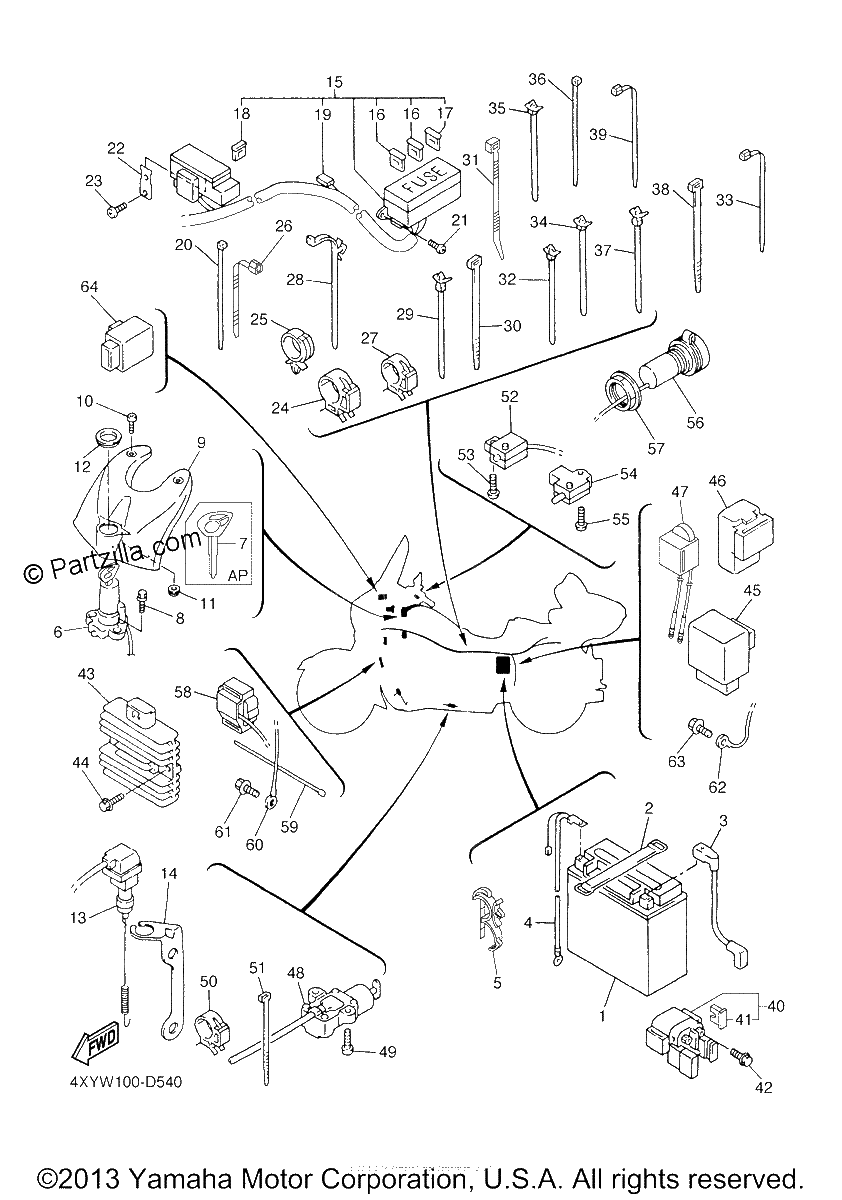

Diagrama de ELECTRICAL 1

Repuestos

#1
YTX-20LBS-00-00
YTX20LBS YUASA BATT
No Disponible
1
#2
7H3-82131-00-00
BAND,BATTERY (replaces 18G-82131-00-00)
$17.58¢8 792
1
#3
4NK-82115-00-00
WIRE, PLUS LEAD
$38.18¢19 090
1
#4
1D6-82116-00-00
WIRE, MINUS LEAD
$20.23¢10 114
1
#5
90464-18246-00
CLAMP
$1.81¢903
1
#6
4XY-82501-20-00
MAIN SWITCH STEERING LOCK
$253.90¢126 949
1
#7
5PX-82511-09-00
BLANK KEY
$76.16¢38 082
1
#8
90109-08196-00
BOLT
$6.76¢3 381
1
#9
4XY-8291G-00-00
COVER, SWITCH
$65.25¢32 625
1
#10
90149-06264-00
SCREW
$4.67¢2 335
1
#11
90480-01558-00
Grommet
$4.31¢2 156
1
#12
4XY-82545-00-00
GROMMET
$14.95¢7 475
1
#13
4XY-82530-00-00
STOP SWITCH ASSY
$76.24¢38 122
1
#14
4XY-82539-00-00
STAY, STOP SWITCH
$9.72¢4 859
1
#15
4XY-82590-10-00
WIRE HARNESS ASSY
$543.94¢271 969
1
#16
42X-82151-00-00
FUSE (10A-BL)
$2.43¢1 213
1
#17
36Y-82151-00-00
Fuse (15 Amp)
$4.45¢2 225
1
#18
1NL-82151-00-00
FUSE (5A-BL)
$7.16¢3 582
1
#19
3WP-81980-00-00
RECTIFIER 2
$20.65¢10 327
1
#20
1UA-82591-00-00
BAND
$4.52¢2 260
1
#21
98907-06012-00
Bolt, Socket
$7.81¢3 904
1
#22
4XY-81953-00-00
STAY, RELAY
$6.64¢3 318
1
#23
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.58¢788
1
#24
90464-25217-00
CLAMP
$3.68¢1 840
1
#25
90464-07209-00
Clamp
$1.75¢874
1
#26
90464-15195-00
CLAMP
$3.04¢1 518
1
#27
90464-20191-00
Clamp
$8.06¢4 031
1
#28
90464-20213-00
CLAMP
$3.90¢1 949
1
#29
90464-10112-00
CLAMP
$6.76¢3 381
1
#30
1UA-82591-00-00
BAND
$4.52¢2 260
1
#31
90464-35132-00
CLAMP
$7.79¢3 893
1
#32
90464-10112-00
CLAMP
$6.76¢3 381
1
#33
90464-15195-00
CLAMP
$3.04¢1 518
1
#34
90464-10112-00
CLAMP
$6.76¢3 381
1
#35
90464-10112-00
CLAMP
$6.76¢3 381
1
#36
1UA-82591-00-00
BAND
$4.52¢2 260
1
#37
90464-10112-00
CLAMP
$6.76¢3 381
1
#38
1UA-82591-00-00
BAND
$4.52¢2 260
1
#39
90464-13077-00
CLAMP
$7.30¢3 651
1
#39
98907-04014-00
SCREW, BIND
$0.52¢259
1
#40
4BH-81940-02-00
STARTER RELAY ASSY (RC19-005)
$110.64¢55 321
1
#41
1AE-82151-00-00
FUSE (30A-BL)
$6.82¢3 410
1
#42
95027-06008-00
BOLT, FLANGE
$6.14¢3 070
1
#43
4XY-81960-00-00
RECTIFIER REGULATOR ASSY
$169.66¢84 830
1
#44
95817-06020-00
BOLT, FLANGE (replaces 95802-06020-00)
$3.05¢1 524
1
#45
5EA-81950-00-00
RELAY ASSY (5EA-00) | FOR SIDESTAND
$87.87¢43 936
1
#46
1UY-81950-92-00
RELAY ASSY (1UY-92)
$75.89¢37 944
1
#47
5FU-82560-20-00
THERMO SWITCH ASSY
$31.76¢15 881
1
#48
3LD-82566-50-00
SWITCH, SIDE STAND
$52.38¢26 191
1
#49
98507-05014-00
SCREW, PAN HEAD
$5.76¢2 881
1
#50
90464-10190-00
CLAMP
$7.95¢3 973
1
#51
1UA-82591-00-00
BAND
$4.52¢2 260
1
#52
4XY-83980-10-00
FRONT STOP SWITCH ASSY
$64.97¢32 487
1
#54
4XY-82917-00-00
SWITCH
$164.83¢82 415
1
#55
98907-04025-00
SCREW, BIND
$0.41¢207
1
#56
4XY-8254B-00-00
TERMINAL COMP.
$173.55¢86 773
1
#57
4XY-82114-00-00
NUT
$16.30¢8 148
1
#58
4BH-82576-01-00
SENSOR, LEAN ANGLE
$143.95¢71 973
1
#59
1UA-82591-00-00
BAND
$4.52¢2 260
1
#60
4XY-8232Y-00-00
WIRE, EARTH LEAD
$24.36¢12 179
1
#61
95817-06010-00
BOLT,FLANGE (replaces 95827-06010-00)
$4.28¢2 139
1
#62
4XY-82519-01-00
WIRE, EARTH LEAD
$35.25¢17 624
1
#63
95817-06010-00
BOLT,FLANGE (replaces 95827-06010-00)
$4.28¢2 139
1
#64
4XY-81950-00-00
RELAY ASSY (4XY-00)
$120.81¢60 404
1
