SIDE COVER

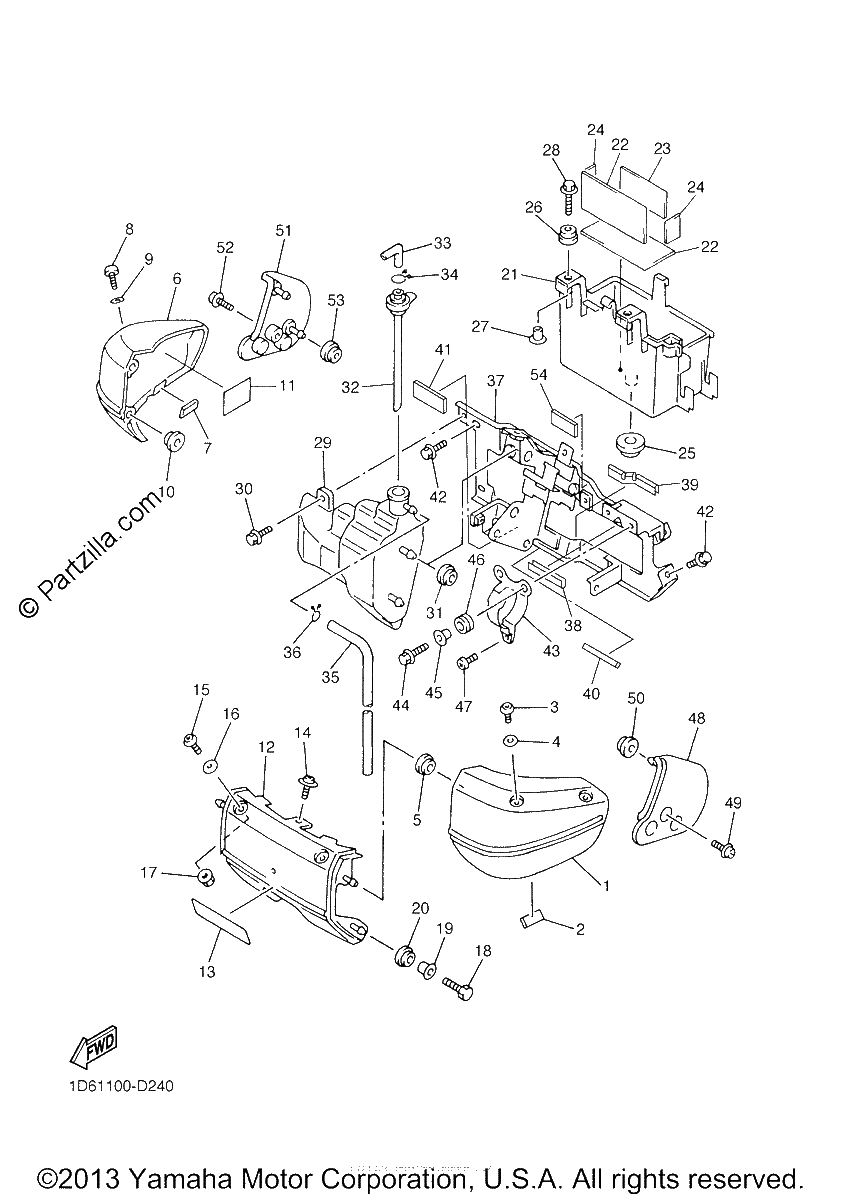

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
COVER, SIDE 1 | Use for Color Black Metallic X ( SMX / 0903 )
$296.40¢148 201
#2
DAMPER 2
$5.93¢2 967
#3
SCREW,SPEC'L SHAPE
$4.67¢2 335
#4
WASHER, PLATE
$2.02¢1 012
#5
GROMMET
$4.25¢2 128
#6
COVER, SIDE 2 | Use for Color Black Metallic X ( SMX / 0903 )
$296.40¢148 201
#7
DAMPER 2
$5.93¢2 967
#8
SCREW,SPEC'L SHAPE
$4.67¢2 335
#9
WASHER, PLATE
$2.02¢1 012
#10
GROMMET
$4.25¢2 128
#11
SEAL 2
$5.99¢2 996
#12
COVER 9 | Use for Color Black Metallic X ( SMX / 0903 )
$69.60¢34 799
#13
PROTECTOR
$6.99¢3 496
#14
SCREW, WITH WASHER
$6.75¢3 375
#15
SCREW,SPEC'L SHAPE
$4.67¢2 335
#16
WASHER, PLATE
$2.02¢1 012
#17
NUT, FLANGE
$0.86¢431
#18
BOLT, HEXAGON (replaces 97027-06020-00)
$2.78¢1 392
#19
COLLAR
$5.66¢2 829
#20
GROMMET
$7.51¢3 755
#21
BOX, BATTERY
$58.18¢29 089
#22
DAMPER
$2.16¢1 081
#23
DAMPER, PLATE 1
$7.23¢3 617
#24
DAMPER
$6.99¢3 496
#25
GROMMET
$4.76¢2 380
#26
GROMMET
$7.51¢3 755
#27
COLLAR
$5.66¢2 829
#28
BOLT,WITH WASHER
$3.38¢1 691
#29
TANK, RECOVERY
$50.44¢25 219
#30
BOLT, WITH WASHER
$6.43¢3 214
#31
GROMMET
$4.25¢2 128
#32
CAP
$19.55¢9 775
#33
ELBOW
$24.05¢12 023
#34
CLIP
$2.88¢1 438
#35
HOSE (L540)
No Disponible
#36
Clip
$2.74¢1 368
#37
PLATE, BRIDGE
$102.26¢51 129
#38
SEAL
$4.86¢2 432
#39
SEAL
No Disponible
#39
GROMMET
$4.25¢2 128
#40
SEAL
$4.19¢2 093
#41
DAMPER
$6.99¢3 496
#42
BOLT,FLANGE (replaces 95827-06010-00)
$4.28¢2 139
#43
BRACKET, FUEL PUMP
$39.85¢19 924
#44
BOLT, FLANGE
$1.64¢822
#45
COLLAR | FOR CALIFORNIA
$6.22¢3 111
#46
GROMMET | FOR CALIFORNIA
$6.51¢3 254
#47
SCREW, BIND
$6.50¢3 249
#48
COVER, SIDE 3
$8.87¢4 433
#49
SCREW, WITH WASHER
$6.75¢3 375
#50
GROMMET
$4.25¢2 128
#51
COVER, SIDE 4
$19.53¢9 763
#52
SCREW, WITH WASHER
$6.75¢3 375
#54
DAMPER
$6.99¢3 496
