CYLINDER HEAD

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

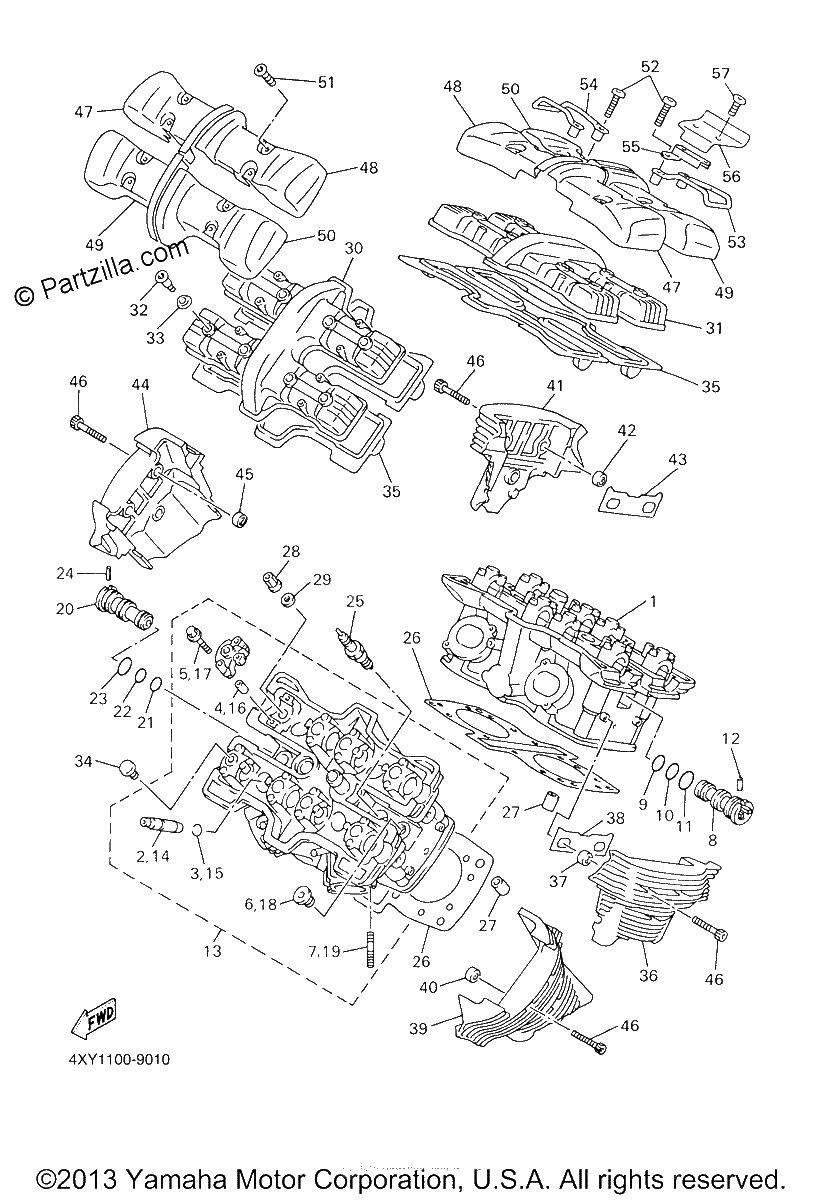

Diagrama de CYLINDER HEAD

Repuestos

#1
4XY-11101-41-00
CYLINDER HEAD ASSY
$1746.24¢873 119
1
#2
26H-11133-10-00
GUIDE, VALVE 1
$26.80¢13 400
1
#3
93440-12117-00
CIRCLIP
$0.21¢106
1
#4
91808-16023-00
PIN, DOWEL
$6.71¢3 356
1
#5
90105-06153-00
BOLT, FLANGE
$3.30¢1 650
1
#6
90340-18101-00
PLUG, STRAIGHT SCREW
$11.81¢5 906
1
#7
95617-08620-00
BOLT, STUD
$5.90¢2 950
1
#8
26H-12469-01-00
JOINT 1
$45.39¢22 694
1
#9
93210-16629-00
O-RING
$5.93¢2 963
1
#10
93210-18322-00
O-RING
$5.41¢2 706
1
#11
93210-21631-00
O-RING
$7.65¢3 825
1
#12
91690-30025-00
PIN, SPRING
$7.00¢3 500
1
#13
4XY-11101-51-00
CYLINDER HEAD ASSY
$1549.99¢774 994
1
#14
26H-11133-10-00
GUIDE, VALVE 1
$26.80¢13 400
1
#15
93440-12117-00
CIRCLIP
$0.21¢106
1
#16
91808-16023-00
PIN, DOWEL
$6.71¢3 356
1
#17
90105-06153-00
BOLT, FLANGE
$3.30¢1 650
1
#18
90340-18101-00
PLUG, STRAIGHT SCREW
$11.81¢5 906
1
#19
95617-08620-00
BOLT, STUD
$5.90¢2 950
1
#20
26H-12469-01-00
JOINT 1
$45.39¢22 694
1
#21
93210-16629-00
O-RING
$5.93¢2 963
1
#22
93210-18322-00
O-RING
$5.41¢2 706
1
#23
93210-21631-00
O-RING
$7.65¢3 825
1
#24
91690-30025-00
PIN, SPRING
$7.00¢3 500
1
#25
DPR-8EA90-00-00
DPR8EA-9 NGK 10PK | UR
$4.81¢2 406
1
#26
1NL-11181-02-00
GASKET, CYLINDER HEAD 1
$46.30¢23 150
1
#27
99530-14016-00
PIN, DOWEL
$3.81¢1 906
1
#28
90179-10026-00
NUT
$8.19¢4 094
1
#29
90201-102G9-00
WASHER, PLATE
$7.60¢3 800
1
#30
4NK-11191-00-00
COVER, CYLINDER HEAD 1
$197.88¢98 938
1
#31
4NK-11191-00-00
COVER, CYLINDER HEAD 1
$197.88¢98 938
1
#32
90109-066F0-00
BOLT
$7.60¢3 800
1
#33
5EA-1111G-00-00
RUBBER, MOUNT 1
$22.01¢11 006
1
#34
90338-10150-00
PLUG
$7.35¢3 675
1
#35
4NK-11193-00-00
GASKET, HEAD COVER 1
$61.46¢30 731
1
#36
4NK-11186-20-00
COVER, CYLINDER HEAD SIDE 2
$372.99¢186 494
1
#37
4NK-15316-00-00
DAMPER 1
$26.84¢13 419
1
#38
4NK-11195-00-00
GASKET
$12.56¢6 281
1
#39
4XY-11187-20-00
COVER, CYLINDER HEAD SIDE 3
$400.02¢200 013
1
#39
4NK-11152-00-00
BRACKET, CYLINDER HEAD COVER
$74.00¢37 000
1
#40
4NK-15316-00-00
DAMPER 1
$26.84¢13 419
1
#41
4NK-11185-20-00
COVER, CYLINDER HEAD SIDE 3
$372.99¢186 494
1
#42
4NK-15316-00-00
DAMPER 1
$26.84¢13 419
1
#43
4NK-11195-00-00
GASKET
$12.56¢6 281
1
#44
4XY-1111H-20-00
COVER, CYLINDER HEAD SIDE 4
$400.02¢200 013
1
#45
4NK-15316-00-00
DAMPER 1
$26.84¢13 419
1
#46
91314-06020-00
BOLT (3JB) (replaces 91312-06020-00)
$2.44¢1 219
1
#47
4NK-1111M-00-00
COVER 1
$109.34¢54 669
1
#48
4NK-1111N-00-00
COVER 2
$109.34¢54 669
1
#49
4NK-1111P-00-00
COVER 3
$109.34¢54 669
1
#50
4NK-1111R-00-00
COVER 4
$109.34¢54 669
1
#51
92014-06014-00
BOLT, BUTTON HEAD
$3.15¢1 575
1
#52
92014-06030-00
BOLT, BUTTON HEAD
$7.34¢3 669
1
#54
4NK-11142-00-00
BRACKET, CYLINDER HEAD COVER 2
$74.00¢37 000
1
#55
4XY-11152-00-00
BRACKET, CYLINDER HEAD COVER
$16.48¢8 238
1
#56
4XY-1118A-00-00
COVER
$78.56¢39 281
1
#57
92014-06010-00
BOLT, BUTTON HEAD
$6.29¢3 144
1
