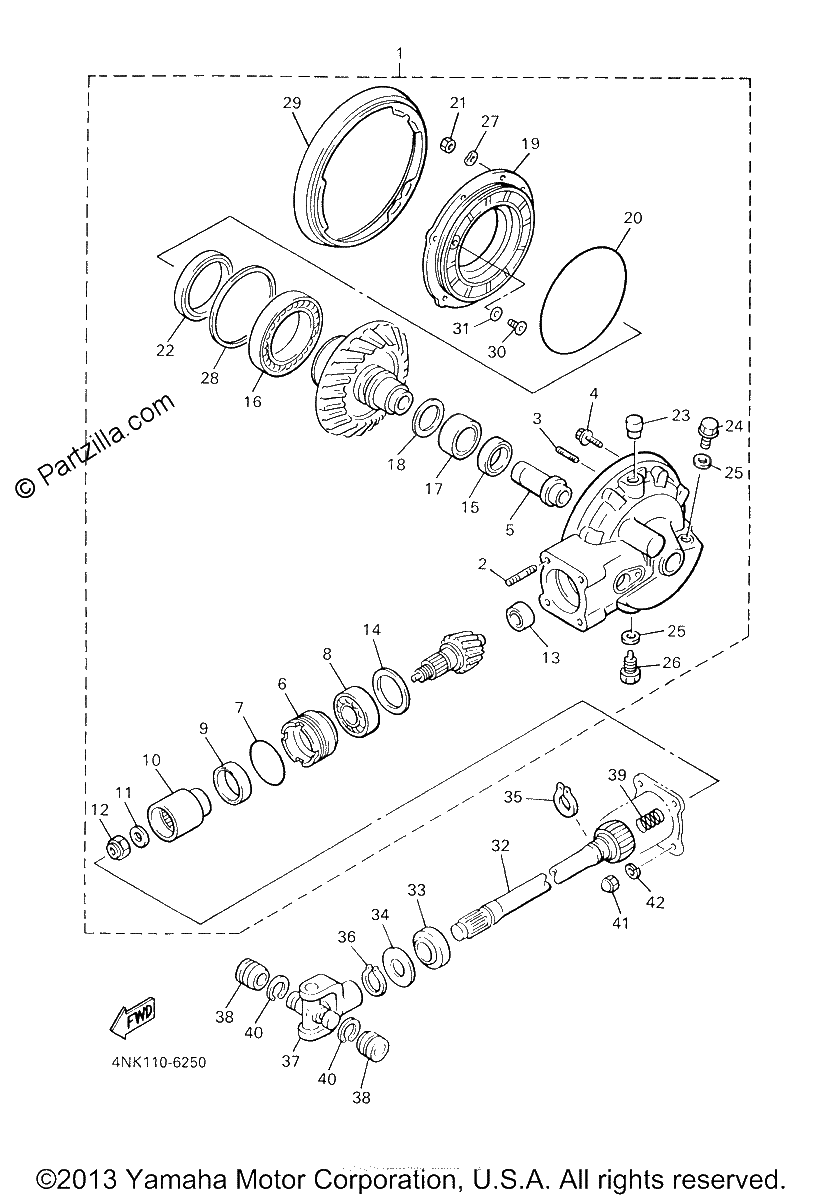

DRIVE SHAFT
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#0
SHIM, THRUST (1.4T) | UR
$10.19¢5 094
#0
SHIM, RING GEAR (0.50T) | UR
$11.15¢5 577
#0
SHIM, THRUST (1.8T) | UR
$10.09¢5 043
#0
SHIM, STOPPER (T=0.20) | UR
$4.11¢2 053
#0
SHIM, THRUST (0.30T) | UR
$4.43¢2 214
#0
SHIM, THRUST (0.40T) | UR
$3.99¢1 995
#0
SHIM, THRUST (1.6T) | UR
$10.12¢5 060
#0
SHIM, THRUST (1.2T) | UR
$9.98¢4 991
#0
SHIM, RING GEAR (0.30T) | UR
$7.27¢3 634
#0
SHIM, RING GEAR (0.40T) | UR
$13.20¢6 601
#1
REAR AXLE GEAR CASE ASSY
$1470.84¢735 419
#2
BOLT, STUD
$4.69¢2 346
#3
BOLT, STUD
$5.43¢2 714
#4
BOLT, FLANGE
$5.51¢2 754
#5
COLLAR, GUIDE
No Disponible
#6
RETAINER, BEARING
$60.03¢30 015
#7
O-RING
$9.46¢4 732
#8
BEARING
$133.85¢66 924
#9
OIL SEAL
$16.95¢8 476
#10
COUPLING, GEAR
$215.14¢107 571
#11
WASHER, PLATE
$16.27¢8 136
#12
NUT
$33.73¢16 865
#13
BEARING ASSY
$57.14¢28 572
#14
SHIM, THRUST (0.50T) | UR
$4.15¢2 076
#15
OIL SEAL
$15.89¢7 946
#16
BEARING
$85.80¢42 901
#17
BEARING
$76.89¢38 445
#18
SHIM, THRUST (2.0T) | UR
$9.98¢4 991
#19
HOUSING, BEARING
No Disponible
#20
O-RING
$19.41¢9 706
#21
NUT(6TA) (replaces 95307-08600-00)
$6.75¢3 375
#22
OIL SEAL
$31.82¢15 910
#23
BREATHER COMP.
$29.29¢14 645
#24
PLUG, STRAIGHT SCREW
$2.90¢1 449
#25
GASKET
$2.97¢1 483
#26
PLUG, STRAIGHT SCREW
No Disponible
#27
WASHER
$0.52¢259
#28
SHIM, RING GEAR (0.25T) | UR
$13.26¢6 630
#29
COVER, HOUSING
$29.70¢14 852
#30
STOPPER, RING GEAR
$16.36¢8 182
#31
SHIM, STOPPER (T=0.15) | UR
$3.43¢1 713
#32
SHAFT, DRIVE
No Disponible
#33
OIL SEAL
$27.37¢13 685
#34
WASHER, PLATE
$10.80¢5 399
#35
CIRCLIP
$6.53¢3 266
#36
CIRCLIP,S-TYPE
$6.75¢3 375
#37
CROSS JOINT COMP.
$189.67¢94 835
#38
BEARING
$63.96¢31 981
#39
SPRING, COMPRESSION
$6.36¢3 180
#40
CIRCLIP
$5.75¢2 875
#41
NUT, CROWN
$7.19¢3 594
#42
WASHER, SPRING
$2.82¢1 409
