SADDLEBAG 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

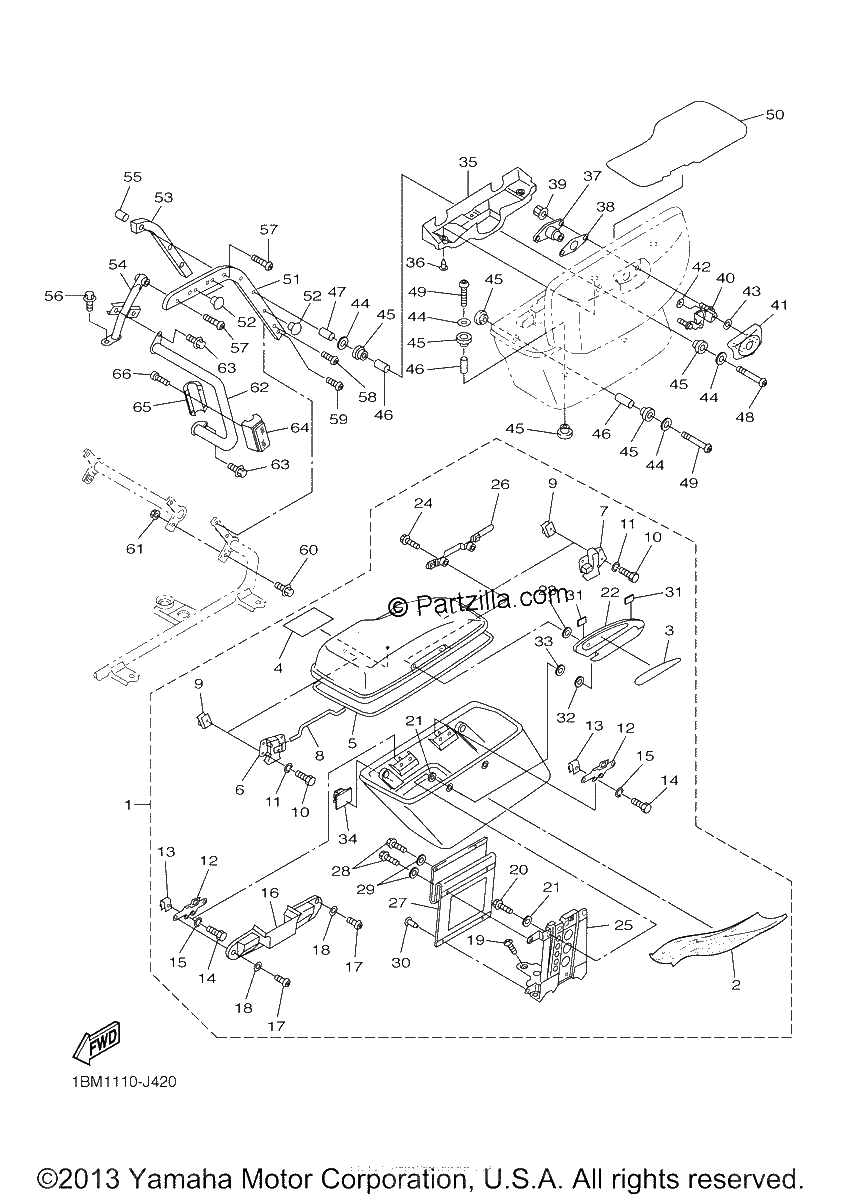

Diagrama de SADDLEBAG 1

Repuestos

#1
4XY-Y2843-3V-P0
SADDLEBAG COMP, 1 | SMX
No Disponible
1
#2
1BM-2841G-01-00
GRAPHIC 1
$94.98¢47 489
1
#3
4XY-2847A-50-00
ORNAMENT 1
$58.14¢29 072
1
#4
4XY-28446-02-00
LABEL, CAUTION
$8.87¢4 433
1
#5
4XY-28428-00-00
SEAL 1
$19.20¢9 603
1
#6
4XY-28494-00-00
HOOK 3
$45.83¢22 914
1
#7
4XY-28495-00-00
HOOK 4
$45.83¢22 914
1
#8
4XY-2841A-00-00
LEVER
$39.08¢19 538
1
#9
90183-051A0-00
NUT, SPRING
$2.92¢1 461
1
#10
97017-05012-00
BOLT
$6.75¢3 375
1
#11
92907-05600-00
WASHER, PLATE
$0.89¢443
1
#12
4XY-28498-00-00
HOOK 2
$22.23¢11 115
1
#13
90183-051A0-00
NUT, SPRING
$2.92¢1 461
1
#14
97017-05016-00
BOLT
$2.71¢1 357
1
#15
92907-05600-00
WASHER, PLATE
$0.89¢443
1
#16
4XY-2843J-00-00
COVER 3
$26.54¢13 271
1
#17
92017-05008-00
BOLT, BUTTON HEAD
$0.47¢236
1
#18
92907-05600-00
WASHER, PLATE
$0.89¢443
1
#19
90167-05078-00
SCREW, TAPPING (replaces 97702-50020-00)
$5.76¢2 881
1
#20
92017-05014-00
BOLT, BUTTON HEAD
$3.16¢1 581
1
#21
90201-05556-00
WASHER, PLATE
$7.65¢3 824
1
#22
4XY-28444-10-00
HINGE 1
$214.74¢107 370
1
#23
90202-10120-00
WASHER,PLATE (replaces 90202-10165-00)
$6.45¢3 226
1
#24
92017-05020-00
BOLT, BUTTON HEAD
$2.82¢1 409
1
#25
4XY-28427-00-00
REINFORCEMENT 1
$138.80¢69 402
1
#26
4XY-2847H-00-00
PLATE 5
$38.47¢19 234
1
#27
4XY-2845B-00-00
STOPPER, OPEN
$210.52¢105 259
1
#28
92017-05014-00
BOLT, BUTTON HEAD
$3.16¢1 581
1
#29
92907-05600-00
WASHER, PLATE
$0.89¢443
1
#30
90269-05055-00
RIVET,SPEC'L SHAPE
$7.67¢3 835
1
#31
4XY-28499-00-00
PLATE, RUBBER 4
$4.23¢2 116
1
#32
90201-08326-00
WASHER, PLATE
$6.75¢3 375
1
#33
4XY-28429-00-00
SEAL 2
$1.75¢874
1
#34
90464-07002-00
CLAMP
$2.91¢1 455
1
#35
4XY-2849K-00-00
COVER LOCK ASSY 2
$35.48¢17 739
1
#36
90269-06081-00
RIVET
$6.23¢3 117
1
#37
4XY-W2843-00-00
LOCK ASSY 3
$144.45¢72 226
1
#38
4XY-2845J-00-00
PLATE, RUBBER 5
$5.11¢2 553
1
#39
95607-05200-00
NUT,U FLANGE (replaces 95602-05200-00)
$7.51¢3 755
1
#39
1D6-28415-00-00
DAMPER 1
$16.33¢8 165
1
#40
4XY-2849H-00-00
PLATE 6
$25.85¢12 926
1
#41
4XY-2842A-00-00
COVER 5
$23.94¢11 971
1
#42
90183-04005-00
NUT,SPRING (replaces 90183-04047-00)
$0.84¢420
1
#43
4KJ-28371-00-00
DAMPER
$3.48¢1 742
1
#44
90201-065G8-00
WASHER, PLATE
$6.75¢3 375
1
#45
90480-20447-00
GROMMET
$6.75¢3 375
1
#46
90387-084R5-00
COLLAR
$7.37¢3 686
1
#47
90387-0811N-00
COLLAR
$14.66¢7 331
1
#48
92017-06055-00
BOLT, BUTTON HEAD
$2.75¢1 374
1
#49
92017-06035-00
BOLT, BUTTON HEAD
$2.60¢1 299
1
#50
4XY-2848K-01-00
SEAT 2
$35.63¢17 813
1
#51
4XY-28473-00-00
FRAME, SADDLEBAG 1
$266.73¢133 366
1
#52
90338-07259-00
PLUG
$4.51¢2 254
1
#54
4YE-28413-02-00
STAY, FRONT GUARD 1
$94.85¢47 426
1
#55
90387-0811N-00
COLLAR
$14.66¢7 331
1
#56
95817-08014-00
BOLT, FLANGE
$2.20¢1 098
1
#57
92014-08040-00
BOLT, BUTTON HEAD
$6.75¢3 375
1
#58
92014-08016-00
BOLT, BUTTON HEAD
$7.30¢3 651
1
#59
92014-08020-00
BOLT, BUTTON HEAD
$7.30¢3 651
1
#60
95817-08016-00
BOLT, FLANGE
$4.52¢2 260
1
#61
95307-08800-00
NUT
$6.29¢3 145
1
#62
4XY-2841K-00-00
GUARD, SADDLEBAG 1
$305.64¢152 818
1
#63
95814-08016-00
BOLT,FLANGE (replaces 95802-08016-00)
$7.30¢3 651
1
#64
4YE-85131-00-00
REFLECTOR, REAR 1
$54.81¢27 404
1
#65
4YE-85132-00-00
BRACKET, REFLECTOR 1
$31.90¢15 950
1
#66
97707-30514-00
SCREW, TAPPING
$6.36¢3 180
1
