SEAT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

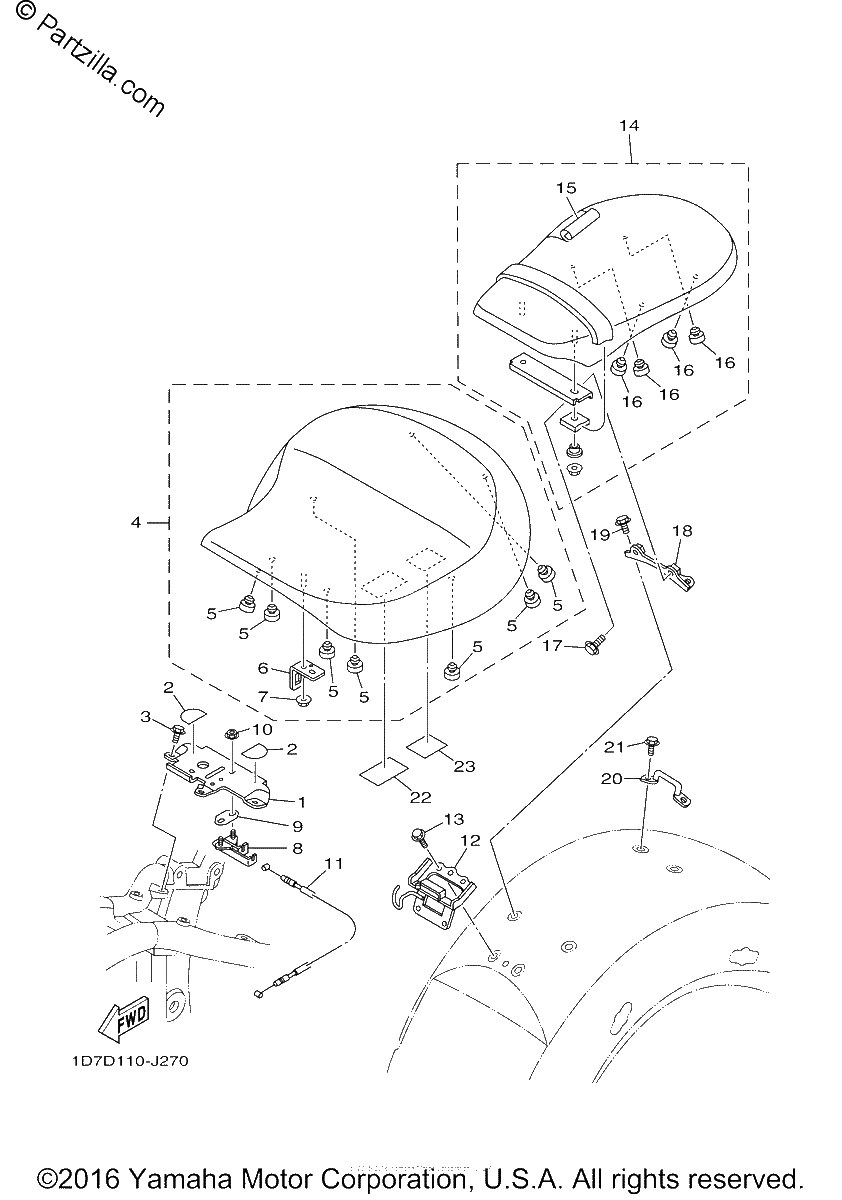

Diagrama de SEAT

Repuestos

#1
1D7-21341-00-00
BRACKET, SEAT 1
$41.29¢20 644
1
#2
5PX-21735-00-00
SEAL 2
No Disponible
1
#3
95817-08016-00
BOLT, FLANGE
$4.91¢2 456
1
#4
1D7-24710-20-00
SINGLE SEAT ASSY
$384.96¢192 481
1
#5
22W-24741-00-00
PAD, SEAT
$9.19¢4 594
1
#6
4NK-24728-00-00
BRACKET, SEAT
$11.46¢5 731
1
#7
95604-06200-00
NUT-U (replaces 95602-06200-00)
$2.80¢1 400
1
#8
4BP-24780-00-00
SEAT LOCK ASSY
$113.16¢56 581
1
#9
4BP-24792-00-00
PLATE
$10.64¢5 319
1
#10
95707-06500-00
NUT, FLANGE
$0.94¢469
1
#11
5PX-2478E-00-00
CABLE, SEAT LOCK
$21.20¢10 600
1
#12
1D7-2475N-00-00
BRACKET
$76.22¢38 113
1
#13
95022-08012-00
BOLT, FLANGE
$11.31¢5 656
1
#14
1D7-24750-01-00
TANDEM SEAT ASSY
$396.02¢198 013
1
#15
1D7-2470H-00-00
SEAT COVER COMP. ,2
$104.75¢52 375
1
#16
22W-24741-00-00
PAD, SEAT
$9.19¢4 594
1
#17
95022-08012-00
BOLT, FLANGE
$11.31¢5 656
1
#18
1D7-2475H-00-00
BRACKET, SEAT LEVER 1
$18.90¢9 450
1
#19
95022-08012-00
BOLT, FLANGE
$11.31¢5 656
1
#20
1D7-2475R-00-00
BRACKET 6
$17.41¢8 706
1
#21
95022-08012-00
BOLT, FLANGE
$11.31¢5 656
1
#22
1D7-21668-00-00
LABEL, TIRE
$3.79¢1 894
1
#23
5PX-21686-00-00
PLATE, ROUTING 2 | FOR CAL
No Disponible
1
