REAR WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

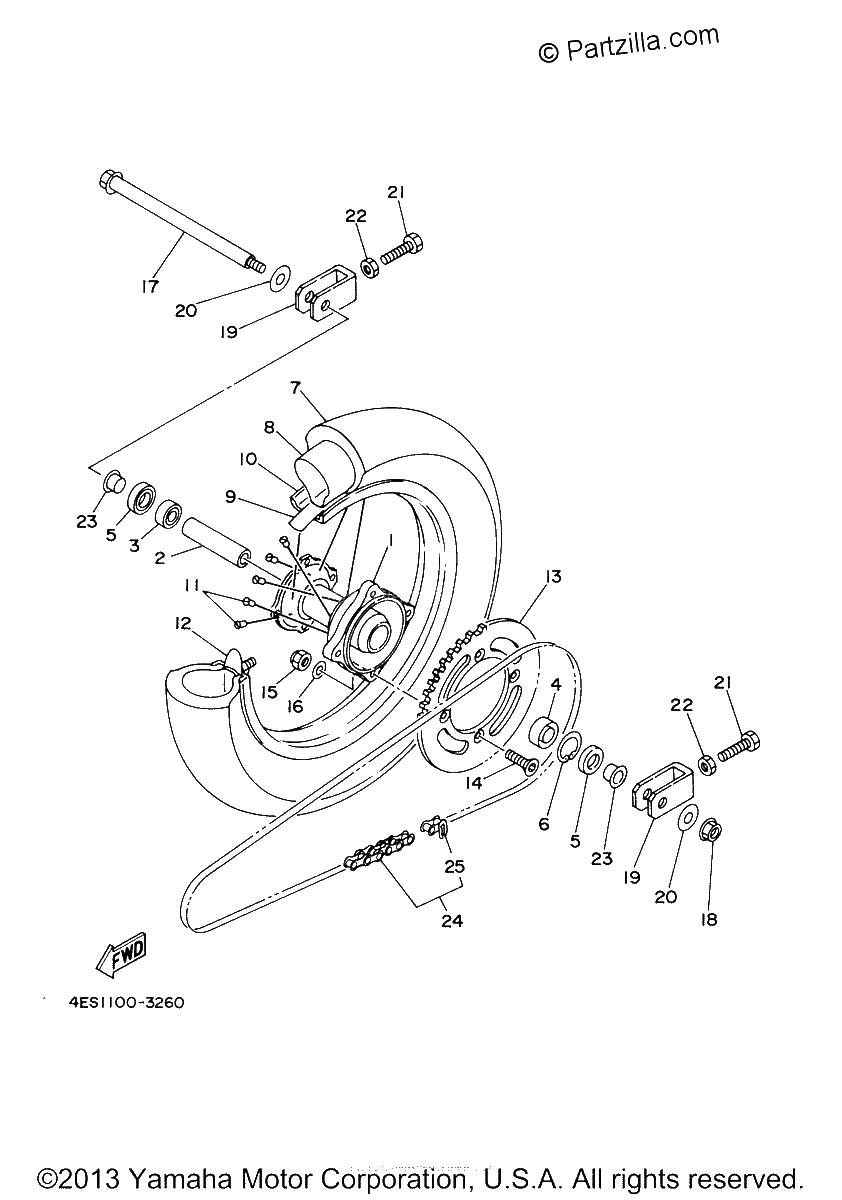

Diagrama de REAR WHEEL

Repuestos

#0
4ES-25447-20-00
SPROCKET, DRIVEN (47T) | STD AFAM
$120.45¢60 225
1
#0
5PA-25446-00-00
SPROCKET, DRIVEN (46T) | AP
$81.15¢40 575
1
#0
5PA-25449-00-00
SPROCKET, DRIVEN (49T) | AP
$118.38¢59 188
1
#1
4ES-25311-00-00
HUB, REAR
$369.16¢184 581
1
#2
4ES-25383-00-00
COLLAR, WHEEL
$26.07¢13 038
1
#3
93306-00201-00
BEARING
$39.77¢19 888
1
#4
93306-20203-00
BEARING
$27.65¢13 825
1
#5
93102-20009-00
OIL SEAL
$10.86¢5 431
1
#6
99009-35500-00
CIRCLIP
$7.34¢3 669
1
#7
94109-14012-00
TIRE (90/100-14 49M D756) | DUNLOP
No Disponible
1
#8
94208-14285-00
TUBE (80-90/100-14M/C TR4) | DUNLOP
$26.91¢13 456
1
#9
94327-14076-00
BAND, RIM (1.60-14) | CHENG SHIN
$8.84¢4 419
1
#10
94416-14529-00
RIM (1.60-14)
$546.08¢273 038
1
#11
4ES-25304-20-00
SPOKE SET, REAR
$106.51¢53 256
1
#12
5X2-25394-00-00
SPACER, BEAD
$52.46¢26 231
1
#13
5PA-25448-00-00
SPROCKET, DRIVEN (48T) | AP
$85.38¢42 688
1
#14
90152-08001-00
SCREW, COUNTERSUNK
$3.56¢1 781
1
#15
90185-08008-00
NUT, SELF-LOCKING
$7.16¢3 581
1
#16
90201-08043-00
WASHER, plate
$6.88¢3 438
1
#17
4ES-25381-01-00
AXLE, WHEEL
$74.13¢37 063
1
#18
90185-14012-00
NUT, SELF-LOCKING
$24.34¢12 169
1
#19
5PA-25388-00-00
PULLER, CHAIN 1
$63.83¢31 913
1
#20
90201-15027-00
WASHER, PLATE
$7.10¢3 550
1
#21
90101-08060-00
BOLT
$5.86¢2 931
1
#22
95302-08700-00
NUT, HEXAGON
$3.89¢1 944
1
#23
4ES-25383-10-00
COLLAR, WHEEL
$26.69¢13 344
1
#24
9Y582-00117-00
CHAIN (DID 428DS 118L)
$70.92¢35 463
1
#25
94682-00001-00
JOINT, CHAIN (DID 428DS-RJ)
$5.25¢2 625
1
