CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

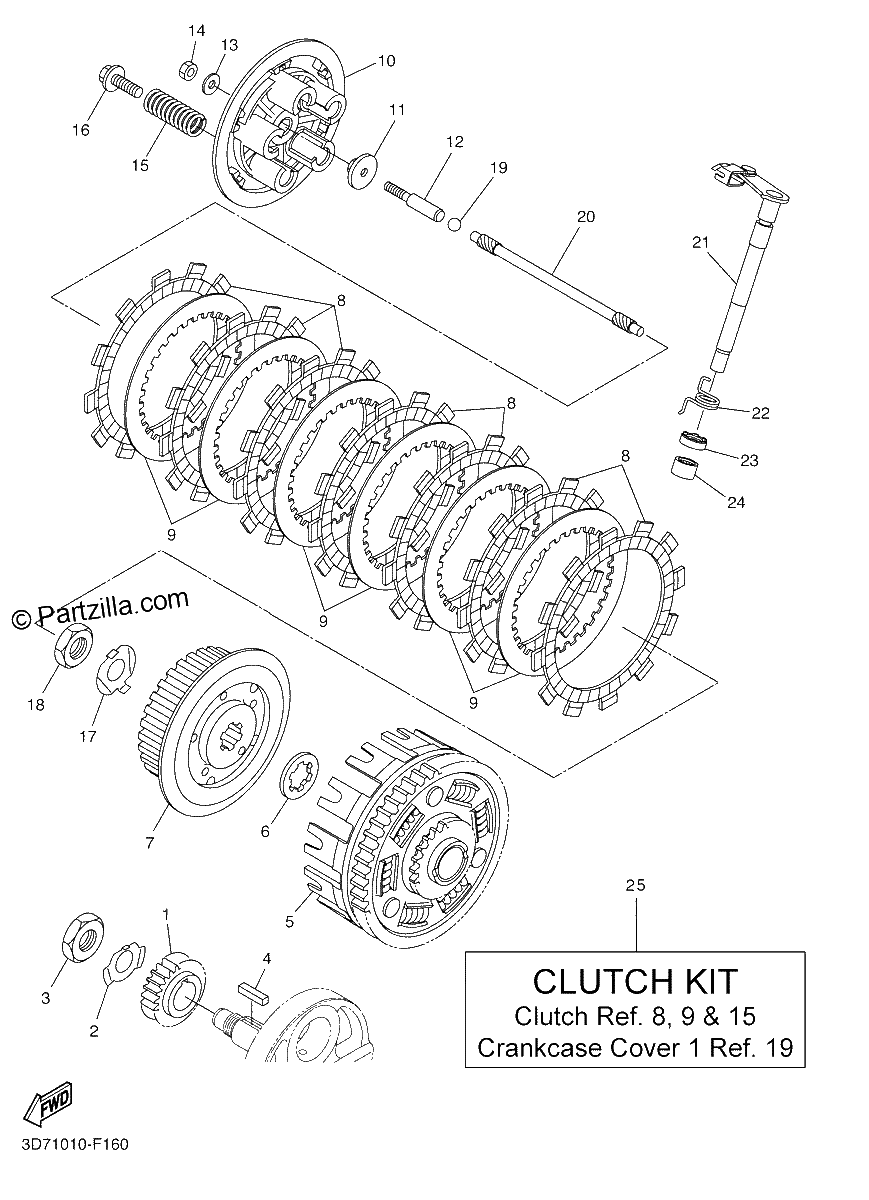

Diagrama de CLUTCH

Repuestos

#1
3D7-16111-00-00
GEAR, PRIMARY DRIVE
$73.97¢36 984
1
#2
90215-16001-00
WASHER, LOCK
$4.91¢2 455
1
#3
90170-16343-00
NUT
$14.97¢7 486
1
#4
90282-05009-00
KEY, STRAIGHT
$5.99¢2 996
1
#5
3D7-16150-00-00
PRIMARY DRIVEN GEAR COMP.
$541.44¢270 722
1
#6
30X-16154-00-00
PLATE, THRUST 1
$25.90¢12 949
1
#7
3D7-16371-00-00
BOSS, CLUTCH
$135.79¢67 896
1
#8
3XJ-16321-00-00
PLATE, FRICTION
$21.75¢10 873
1
#9
3XJ-16324-01-00
PLATE, CLUTCH 1
$13.43¢6 716
1
#10
3D7-16351-00-00
PLATE, PRESSURE 1
$71.97¢35 984
1
#11
1W1-16358-01-00
PLATE, PUSH
$21.98¢10 988
1
#12
3D7-16356-00-00
ROD, PUSH 1
$16.38¢8 188
1
#13
92902-06200-00
WASHER
$0.89¢443
1
#14
95302-06600-00
NUT, HEXAGON
$4.65¢2 323
1
#15
90501-23391-00
SPRING, COMPRESSION
$6.22¢3 111
1
#16
90159-06010-00
SCREW, WITH WASHER
$7.18¢3 588
1
#17
90215-16289-00
WASHER, LOCK
$6.72¢3 358
1
#18
90170-16326-00
NUT
$12.06¢6 032
1
#19
93511-32027-00
BALL
$6.75¢3 375
1
#20
3D7-16357-00-00
ROD, PUSH 2
$34.76¢17 382
1
#21
3D7-16380-00-00
PUSH LEVER ASSY
$94.70¢47 351
1
#22
90508-18052-00
SPRING, TORSION
$5.98¢2 990
1
#23
93102-12004-00
OIL SEAL
$10.41¢5 204
1
#24
93317-11295-00
BEARING
$43.91¢21 954
1
#25
2CF-W001G-00-00
Clutch Plate Kit
$172.27¢86 135
1
