FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

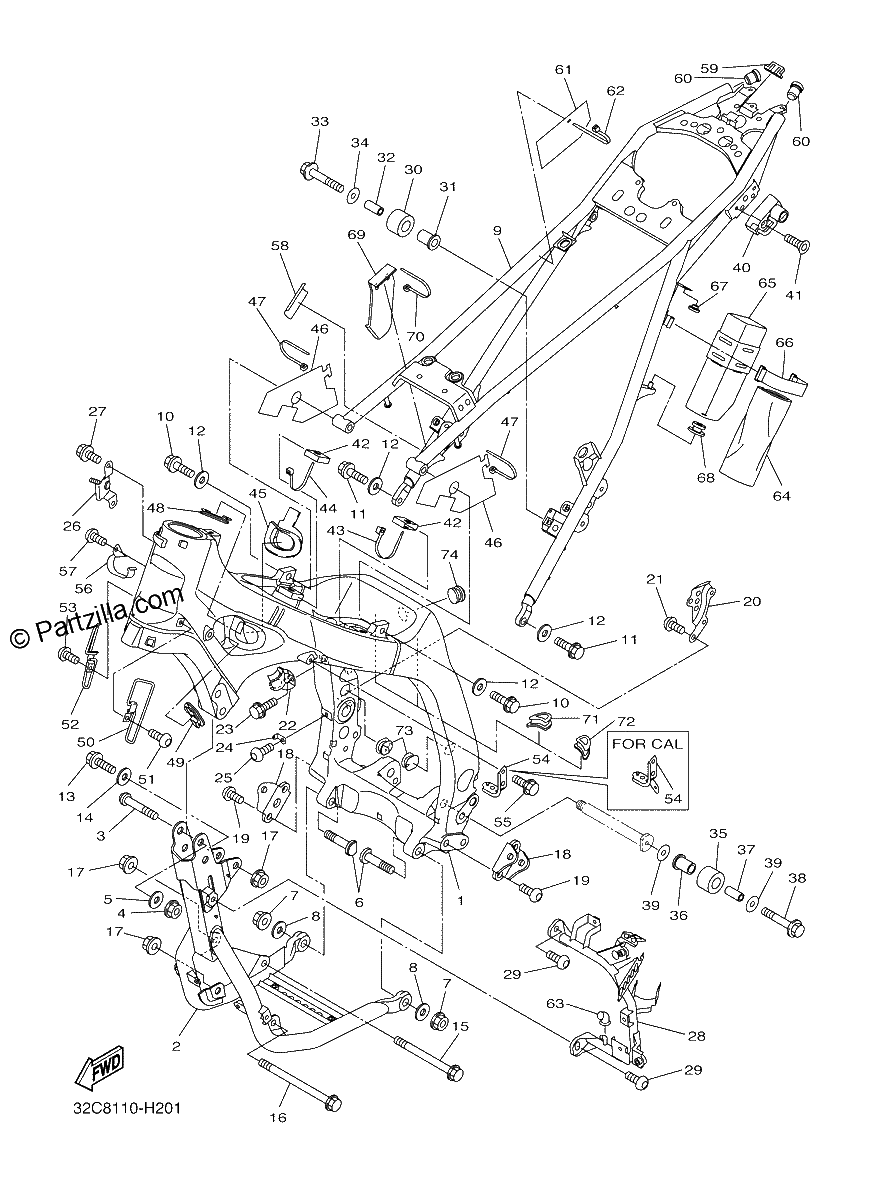

Diagrama de FRAME

Repuestos

#1
3D7-21110-01-00
FRAME COMP.
No Disponible
1
#2
3D7-21280-00-00
DOWNTUBE COMP.
$503.72¢251 861
1
#3
90111-12001-00
bolt
$9.06¢4 531
1
#4
90179-12657-00
NUT,SPEC'L SHAPE (replaces 90179-12248-00)
$5.82¢2 909
1
#5
90201-12044-00
WASHER, plate
$6.53¢3 266
1
#6
3D7-21481-00-00
BOLT, ENGINE MOUNTIN
$10.07¢5 037
1
#7
90179-12657-00
NUT,SPEC'L SHAPE (replaces 90179-12248-00)
$5.82¢2 909
1
#8
90201-12044-00
WASHER, plate
$6.53¢3 266
1
#9
32C-21190-00-00
REAR FRAME COMP.
$1015.44¢507 719
1
#10
90105-10246-00
BOLT, FLANGE
$4.94¢2 472
1
#11
90105-10244-00
Bolt, Flange
$6.83¢3 415
1
#12
90201-10057-00
WASHER
$6.14¢3 070
1
#13
90105-10012-00
BOLT, WASHER BASED
$10.81¢5 405
1
#14
90201-11015-00
WASHER, plate
$2.44¢1 219
1
#15
90105-10226-00
Bolt, Flange
$8.80¢4 399
1
#16
90105-10228-00
Bolt, Flange
$12.49¢6 244
1
#17
90179-10658-00
NUT,SPEC'L SHAPE
$8.49¢4 244
1
#18
3D7-21447-00-00
BRACKET, FOOTREST
$17.50¢8 752
1
#19
90149-10031-00
SCREW
$5.97¢2 984
1
#20
3D7-2133F-00-00
BRACKET, MASTER CYLI
$16.47¢8 234
1
#21
92012-08014-00
BOLT, BUTTON HEAD
$6.96¢3 479
1
#22
3D7-21441-00-00
BRACKET, STOP SWITCH
$24.38¢12 190
1
#23
95022-06010-00
BOLT, FLANGE
$5.97¢2 984
1
#24
3D7-21451-00-00
Bolt, Flange
$4.05¢2 024
1
#25
92012-06010-00
BOLT, BUTTON HEAD
$2.68¢1 340
1
#26
3D7-2142K-00-00
BRACKET, RADIATOR
$16.85¢8 424
1
#27
95022-06012-00
BOLT, FLANGE
$3.29¢1 644
1
#28
3D7-21321-00-00
STAY, SIDE COVER 1
$199.25¢99 624
1
#29
90111-08072-00
BOLT,HEX. SOCKET BUTTON
$7.30¢3 651
1
#30
3TB-22178-00-00
TENSIONER
$24.31¢12 156
1
#31
10V-22184-00-00
Bush
$7.38¢3 691
1
#32
90387-08024-00
Collar
$6.92¢3 461
1
#33
95022-08040-00
BOLT, FLANGE
$6.75¢3 375
1
#34
90201-08045-00
WASHER, PLATE
$5.21¢2 605
1
#35
30X-22178-00-00
TENSIONER
$34.55¢17 273
1
#36
10V-22184-00-00
Bush
$7.38¢3 691
1
#37
90387-08024-00
Collar
$6.92¢3 461
1
#38
95022-08040-00
BOLT, FLANGE
$6.75¢3 375
1
#39
90201-08045-00
WASHER, PLATE
$5.21¢2 605
1
#40
4R8-21308-01-00
HELMET HANGER ASSY
$80.04¢40 020
1
#41
90151-06067-00
SCREW, COUNTERSUNK
$5.34¢2 668
1
#42
3D7-2139X-00-00
Damper
$3.93¢1 967
1
#43
3MA-82591-00-00
BAND
$6.95¢3 473
1
#44
90464-16061-00
BAND
$7.68¢3 841
1
#45
3D7-2117F-00-00
Cover
$17.04¢8 522
1
#46
3D7-2117M-00-00
COVER 2
$7.50¢3 749
1
#47
90465-10098-00
CLAMP
$2.55¢1 277
1
#48
3D7-2117N-00-00
COVER 3
$7.67¢3 835
1
#49
3D7-2117R-00-00
COVER 4
$8.31¢4 157
1
#50
3D7-21288-00-00
GUIDE, CABLE
$23.30¢11 650
1
#51
92017-06010-00
BOLT, BUTTON HEAD
$3.36¢1 679
1
#52
3D7-21339-00-00
GUIDE, WIRE
$23.34¢11 673
1
#53
92017-06010-00
BOLT, BUTTON HEAD
$3.36¢1 679
1
#54
3D7-21161-10-00
HOLDER, CABLE
$294.03¢147 016
1
#55
95027-06010-00
BOLT,FLANGE(4MY)
$2.71¢1 357
1
#56
3D7-21162-00-00
HOLDER, CLUTCH CABLE
$11.43¢5 716
1
#57
92017-06010-00
BOLT, BUTTON HEAD
$3.36¢1 679
1
#58
5XT-25839-10-00
LABEL, BRAKE FLUID
$11.36¢5 681
1
#59
2N4-21717-00-00
Damper
$6.99¢3 496
1
#60
90338-16148-00
PLUG,SPEC'L SHAPE
$10.87¢5 434
1
#61
3D7-2163A-00-00
COVER, REAR FENDER 1 This item has been discontinued and may not be available. Contact us for more information.
No Disponible
1
#62
90464-16061-00
BAND
$7.68¢3 841
1
#63
3D7-21773-00-00
GROMMET This item has been discontinued and may not be available. Contact us for more information.
$8.80¢4 399
1
#64
3D7-28100-00-00
Tool Kit
$65.25¢32 625
1
#65
4GY-21107-10-00
TOOL BOX COMP.
$26.59¢13 294
1
#66
7H3-82131-00-00
BAND,BATTERY (replaces 18G-82131-00-00)
$17.58¢8 792
1
#67
90338-09130-00
PLUG,SPEC'L SHAPE
$6.36¢3 180
1
#68
90480-10017-00
Grommet
$7.44¢3 720
1
#69
3D7-8252U-00-00
Cover
$8.96¢4 479
1
#70
90464-16061-00
BAND
$7.68¢3 841
1
#71
3D7-2117T-00-00
COVER 5
$8.73¢4 364
1
#72
3D7-2117U-00-00
COVER 6
$8.76¢4 382
1
#73
3D7-2117W-00-00
COVER 8
$4.69¢2 346
1
#74
90338-15004-00
PLUG
$6.87¢3 433
1
