TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

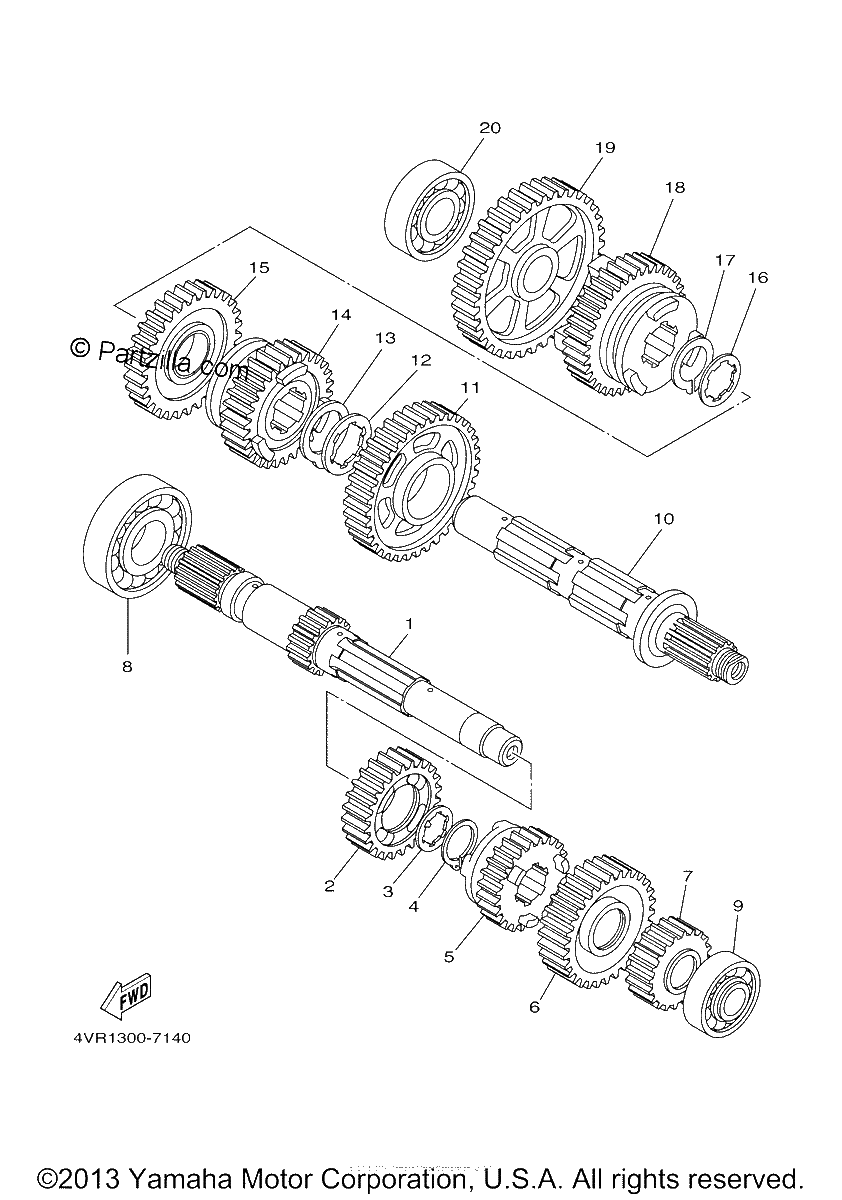

Diagrama de TRANSMISSION

Repuestos

#1
4VR-17411-00-00
AXLE, MAIN (14T)
$171.32¢85 663
1
#2
22U-17141-00-00
GEAR, 4TH PINION (24T)
$81.65¢40 825
1
#3
90209-22191-00
WASHER
$6.91¢3 456
1
#4
93440-25084-00
CIRCLIP
$4.86¢2 431
1
#5
4VR-17131-00-00
GEAR, 3RD PINION (24T)
$110.78¢55 388
1
#6
4VR-17151-01-00
GEAR, 5TH PINION (30T)
$116.40¢58 200
1
#7
4KU-17121-00-00
GEAR, 2ND PINION (20T)
$66.54¢33 269
1
#8
93306-30525-00
BEARING
$64.56¢32 281
1
#9
93306-00426-00
BEARING
$43.60¢21 800
1
#10
22U-17402-00-00
DRIVE AXLE ASSY
$93.56¢46 781
1
#11
4KU-17221-00-00
GEAR, 2ND WHEEL (38T)
$101.78¢50 888
1
#12
90209-27192-00
WASHER
$8.35¢4 175
1
#13
93440-30077-00
CIRCLIP
$11.74¢5 869
1
#14
4VR-17251-01-00
GEAR, 5TH WHEEL (29T)
$93.60¢46 800
1
#15
4VR-17231-00-00
GEAR, 3RD WHEEL (35T)
$166.18¢83 088
1
#16
90209-22191-00
WASHER
$6.91¢3 456
1
#17
93440-25084-00
CIRCLIP
$4.86¢2 431
1
#18
4TR-17241-00-00
GEAR, 4TH WHEEL (28T)
$84.59¢42 294
1
#19
22U-17211-00-00
GEAR, 1ST WHEEL (38T)
$121.04¢60 519
1
#20
93306-00427-00
BEARING
No Disponible
1
