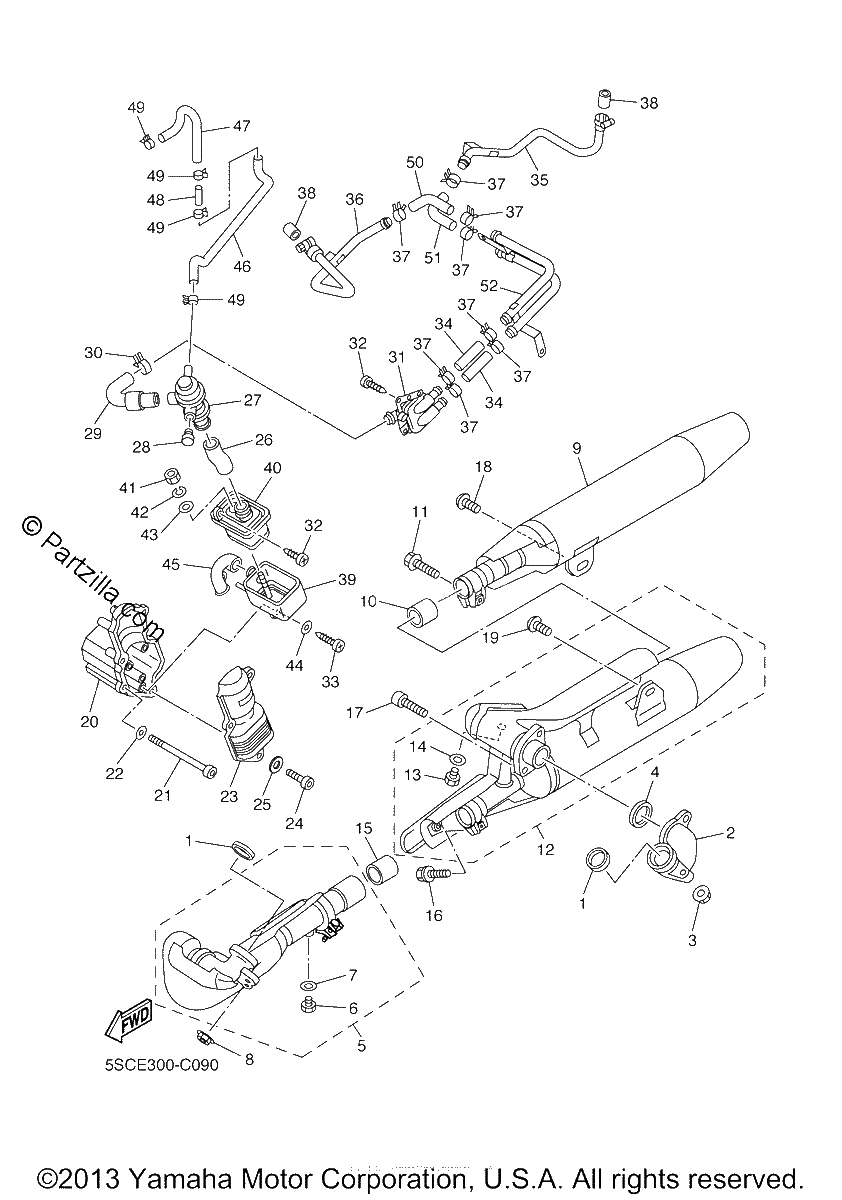

EXHAUST
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
GASKET, EXHAUST PIPE
$11.53¢5 767
#2
JOINT, EXHAUST 1
$130.80¢65 400
#3
NUT, SELF-LOCKING
$9.29¢4 646
#4
GASKET,EXST PIPE
$6.14¢3 070
#5
EXHAUST PIPE ASSY 2
$543.41¢271 705
#6
BOLT
$7.08¢3 542
#7
WASHER, PLATE
$3.13¢1 564
#8
NUT, SELF-LOCKING
$9.29¢4 646
#9
MUFFLER COMP. 1
$959.09¢479 544
#10
GASKET, MUFFLER
$43.49¢21 746
#11
BOLT, FLANGE (SMALL HEAD)
$7.30¢3 651
#12
MUFFLER COMP. 2
$1271.89¢635 944
#13
BOLT
$7.08¢3 542
#14
WASHER, PLATE
$3.13¢1 564
#15
GASKET, MUFFLER
$43.49¢21 746
#16
BOLT, FLANGE (SMALL HEAD)
$7.30¢3 651
#17
BOLT, HEXAGON SOCKET HEAD
$2.70¢1 351
#18
BOLT, BUTTON HEAD
$6.75¢3 375
#19
BOLT, BUTTON HEAD
$7.01¢3 507
#20
COVER, AIR 1
$84.23¢42 113
#21
BOLT
$4.42¢2 208
#22
WASHER, PLATE (6TA)
$0.89¢443
#23
COVER 1
$123.83¢61 916
#24
BOLT (3JB) (replaces 91312-06020-00)
$2.24¢1 121
#25
WASHER
$6.76¢3 381
#26
HOSE, BEND 2
$24.36¢12 179
#27
AIR CUT VALVE ASSY
$222.50¢111 251
#28
PLUG
$2.89¢1 443
#29
HOSE, BEND 3
$15.05¢7 527
#30
CLIP
$3.22¢1 610
#31
REED VALVE ASSY
$221.20¢110 601
#32
SCREW, TAPPING
No Disponible
#33
SCREW, TAPPING
$7.30¢3 651
#34
HOSE, BEND 4
No Disponible
#35
PIPE 1
$93.93¢46 966
#36
PIPE 2
$95.24¢47 621
#37
CLIP
$2.99¢1 495
#38
GASKET, MUFFLER
$22.87¢11 437
#39
CASE, AIR CLEANER
$8.76¢4 382
#40
CAP, CASE
$47.92¢23 960
#41
NUT, U
$7.30¢3 651
#42
WASHER
$4.48¢2 242
#43
WASHER, PLATE
$2.77¢1 386
#44
WASHER, PLATE
$4.47¢2 237
#45
HOSE, BEND 5
$10.48¢5 238
#46
HOSE, VACUUM SENSING 1
$13.52¢6 762
#47
HOSE, VACUUM SENSING 2
$11.94¢5 969
#48
PIPE
$33.58¢16 790
#49
CLIP,SCISSOR
$7.77¢3 887
#50
HOSE, BEND 1
$19.24¢9 620
#51
HOSE, BEND 1
$107.80¢53 900
#52
PIPE 5
$118.51¢59 254
