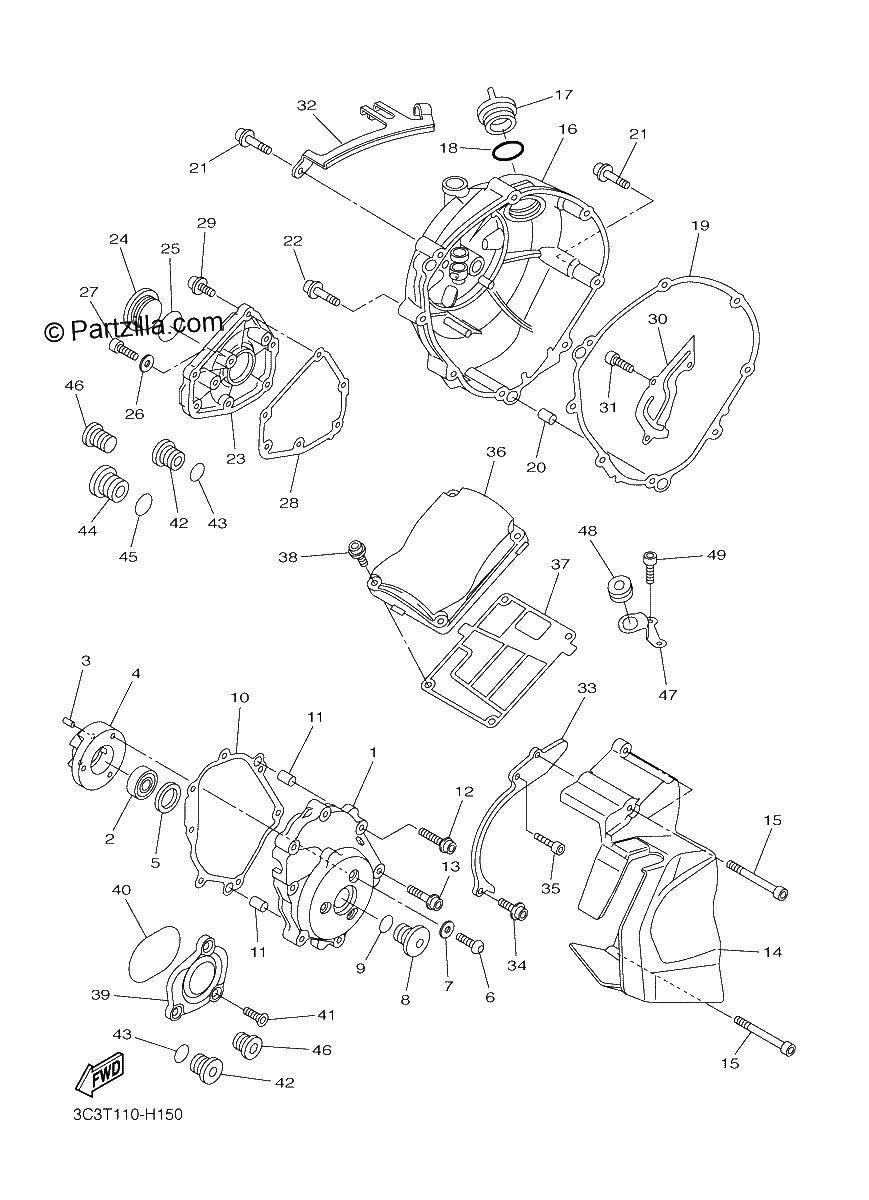

CRANKCASE COVER 1
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
COVER, CRANKCASE 1
$146.58¢73 288
#2
BEARING
$32.14¢16 069
#3
PIN, DOWEL
$6.75¢3 375
#4
HOUSING, BEARING 2
$206.16¢103 081
#5
COLLAR 2
$15.59¢7 794
#6
SCREW
$11.81¢5 906
#7
WASHER, PLATE
$5.34¢2 669
#8
PLUG
$30.84¢15 419
#9
O-Ring
$7.34¢3 669
#10
GASKET, CRANKCASE COVER 1
$7.41¢3 706
#11
PIN
No Disponible
#12
BOLT, HEXAGON SOCKET HEAD
$5.84¢2 919
#13
BOLT, HEXAGON SOCKET HEAD
$8.01¢4 006
#14
COVER, CHAIN CASE
$75.61¢37 806
#15
BOLT, HEXAGON SOCKET HEAD
$1.81¢906
#16
COVER, CRANKCASE 2
$181.46¢90 731
#17
PLUG, OIL LEVEL
$22.93¢11 463
#18
O-Ring
$8.21¢4 106
#19
GASKET, CRANKCASE COVER 2 | INCL. IN CLUTCH PLATE KIT
$31.84¢15 919
#20
PIN, DOWEL
$4.13¢2 063
#21
BOLT, HEXAGON SOCKET HEAD
$3.25¢1 625
#22
BOLT, HEXAGON SOCKET HEAD
$3.25¢1 625
#23
COVER, OIL PUMP
$180.23¢90 113
#24
PLUG, STRAIGHT SCREW
$29.71¢14 856
#25
O-Ring
$6.88¢3 438
#26
GASKET
$3.67¢1 838
#27
BOLT, BUTTON HEAD
$8.64¢4 319
#28
GASKET, OIL PUMP COVER 1
$11.14¢5 569
#29
BOLT, HEXAGON SOCKET HEAD
$5.34¢2 669
#30
PLATE, BREATHER
$6.31¢3 156
#31
BOLT
$7.34¢3 669
#32
HOLDER, CLUTCH CABLE
$32.91¢16 456
#33
PLATE
$63.92¢31 963
#34
BOLT, HEXAGON SOCKET HEAD
$5.65¢2 825
#35
BOLT, HEXAGON SOCKET HEAD
$6.47¢3 238
#36
COVER
$114.38¢57 188
#37
GASKET, CRANKCASE COVER 3
$15.26¢7 631
#38
BOLT, HEXAGON SOCKET HEAD
$9.70¢4 850
#39
COVER, CRANKCASE 3
$39.50¢19 750
#40
O-RING
$13.25¢6 625
#41
SCREW, COUNTERSUNK
$7.70¢3 850
#42
PLUG
$14.34¢7 169
#43
O-RING
$6.99¢3 494
#44
PLUG
$30.76¢15 381
#45
O-Ring
$7.34¢3 669
#46
PLUG, STRAIGHT SCREW
$9.99¢4 994
#47
STAY
$4.71¢2 356
#48
GROMMET
$8.16¢4 081
#49
BOLT
$2.64¢1 319
