SEAT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

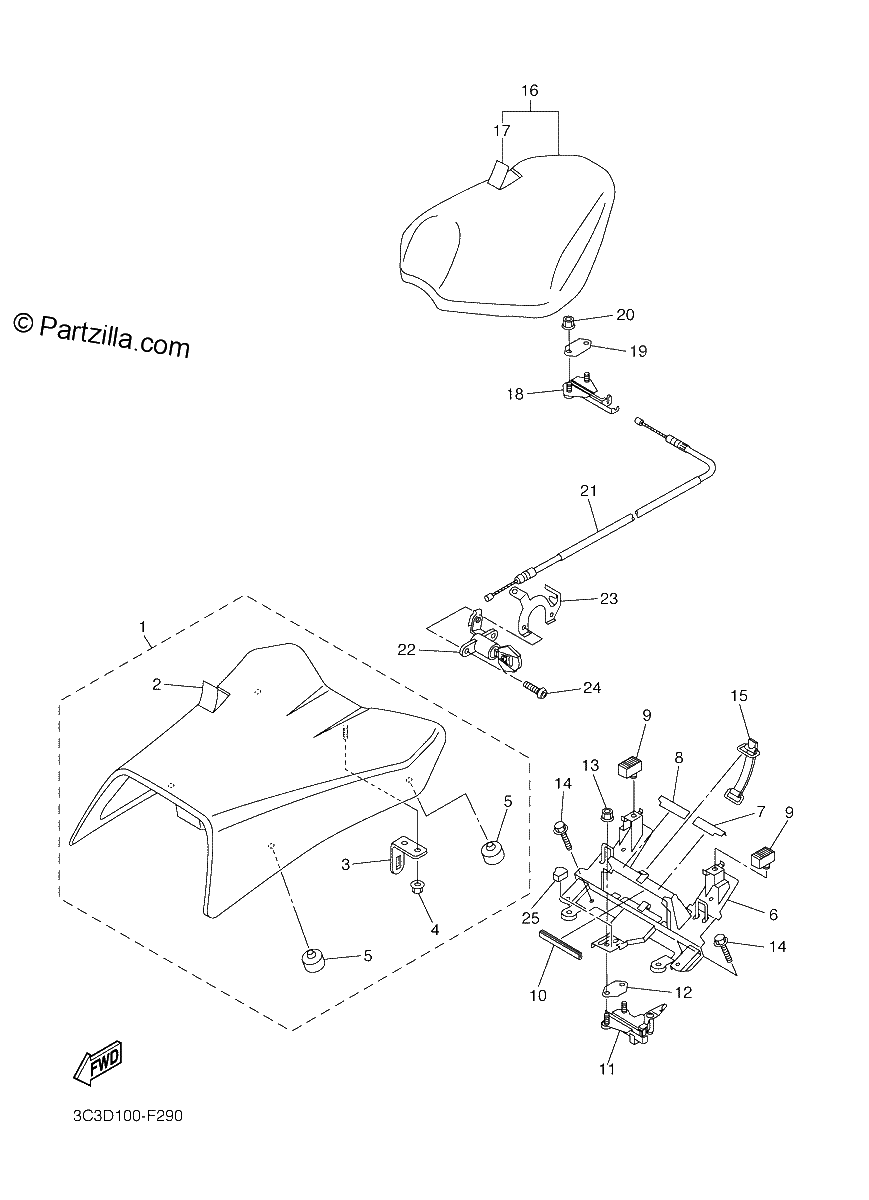

Diagrama de SEAT

Repuestos

#1
2D1-24710-00-00
SINGLE SEAT ASSY
$144.19¢72 093
1
#2
2D1-24711-00-00
COVER, SINGLE SEAT
$58.63¢29 313
1
#3
4HM-24728-00-00
BRACKET, SEAT
$9.80¢4 899
1
#4
95602-06200-00
NUT, SELF-LOCKING
$2.58¢1 288
1
#5
278-27114-00-00
STOPPER, MAIN STAND
$9.28¢4 640
1
#6
3C3-21341-01-00
BRACKET, SEAT 1
$251.17¢125 586
1
#7
2D1-2476U-00-00
PROTECTOR, 1
$3.35¢1 673
1
#8
2D1-2476V-00-00
PROTECTOR, 2
No Disponible
1
#9
3C3-24741-00-00
PAD, SEAT
$9.12¢4 560
1
#10
2D1-24785-00-00
MOLD, SEAT
$8.75¢4 376
1
#11
2D1-24780-02-00
SEAT LOCK ASSY
$74.24¢37 122
1
#12
4BP-24792-00-00
PLATE
$9.79¢4 893
1
#13
95702-06500-00
NUT, FLANGE
$2.24¢1 121
1
#14
95822-06020-00
Bolt, Flange
$3.05¢1 524
1
#15
18G-82131-00-00
BAND, BATTERY
$17.58¢8 792
1
#16
3C3-24750-00-00
TANDEM SEAT ASSY
$124.40¢62 198
1
#17
3C3-24751-00-00
COVER, TANDEM SEAT
$33.82¢16 911
1
#18
4BP-24780-00-00
SEAT LOCK ASSY
$104.11¢52 055
1
#19
4BP-24792-00-00
PLATE
$9.79¢4 893
1
#20
95702-06500-00
NUT, FLANGE
$2.24¢1 121
1
#21
2D1-2478E-00-00
CABLE, SEAT LOCK
$22.15¢11 075
1
#22
2TV-W2470-00-00
SEAT LOCK ASSY
$81.60¢40 802
1
#23
4XV-2117K-00-00
STAY, LOCK
$18.64¢9 321
1
#24
90149-06134-00
Screw
$2.02¢1 012
1
#25
2D1-24665-00-00
DAMPER
$6.57¢3 283
1
