CYLINDER HEAD

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

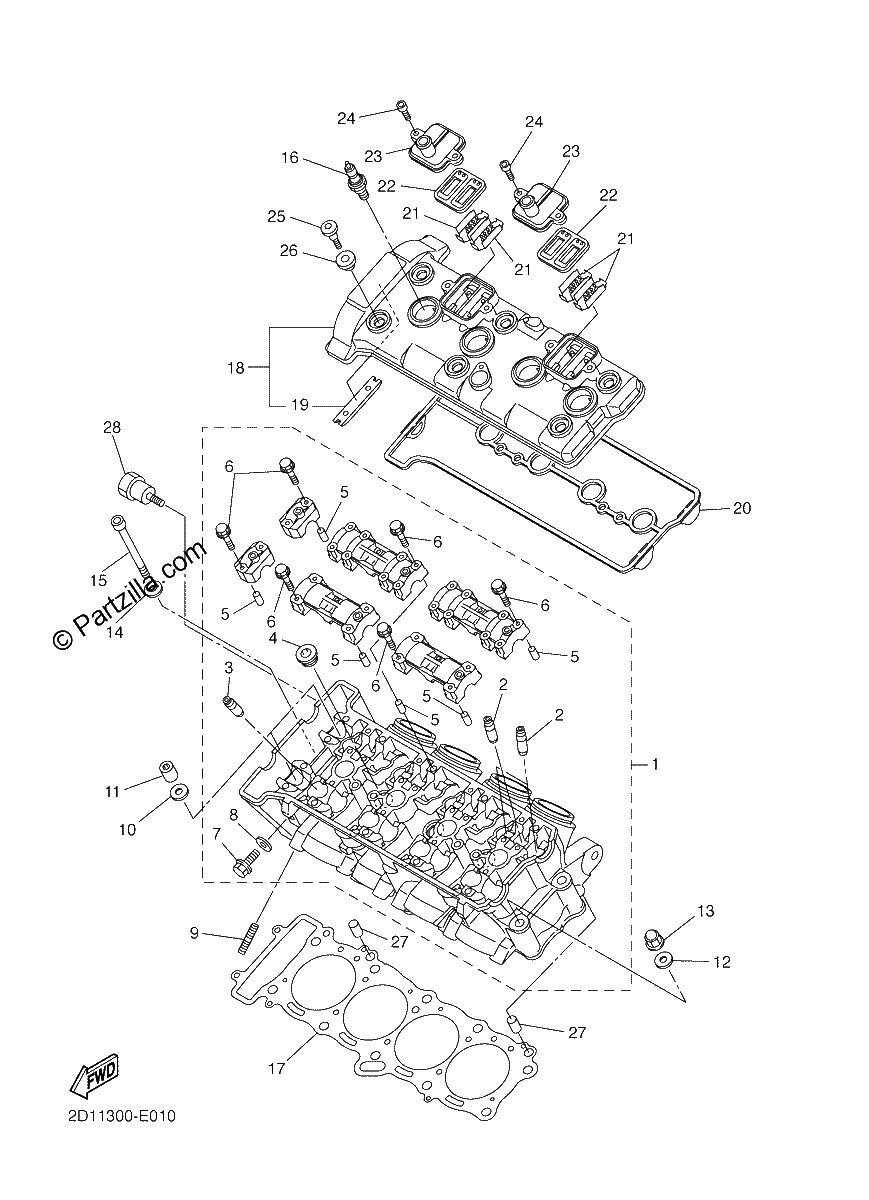

Diagrama de CYLINDER HEAD

Repuestos

#1
5VY-11101-20-00
CYLINDER HEAD ASSY
$1818.14¢909 069
1
#2
5VY-11133-10-00
GUIDE, VALVE 1
$70.63¢35 317
1
#3
5VY-11134-10-00
GUIDE, VALVE 2
$71.37¢35 685
1
#4
90340-18002-00
PLUG, STRAIGHT SCREW
$10.29¢5 146
1
#5
91808-16023-00
PIN, DOWEL
$6.18¢3 088
1
#6
90105-06026-00
BOLT, FLANGE
No Disponible
1
#7
95024-06012-00
Bolt, Flange
$4.02¢2 012
1
#8
90430-06014-00
GASKET
$7.59¢3 795
1
#9
95612-08625-00
BOLT, STUD
$5.13¢2 565
1
#10
90201-10033-00
WASHER, PLATE
$6.87¢3 433
1
#11
90179-10006-00
NUT
$8.35¢4 174
1
#12
90201-10033-00
WASHER, PLATE
$6.87¢3 433
1
#13
90176-10075-00
NUT, CROWN
$7.19¢3 594
1
#14
90201-06034-00
WASHER, PLATE
$7.13¢3 565
1
#15
91314-06105-00
BOLT, HEXAGON SOCKET HEAD
$8.07¢4 036
1
#16
NGK-CR9E0-00-00
PLUG, SPARK (NGK R CR9E) *{10 PACK}*
$9.88¢4 939
1
#17
2D1-11181-00-00
GASKET, CYLINDER HEAD 1
$111.83¢55 913
1
#18
5VY-11191-02-00
COVER, CYLINDER HEAD 1
$306.53¢153 266
1
#19
5BE-12241-00-00
GUIDE, STOPPER 2
$28.00¢14 001
1
#20
5VY-11193-10-00
GASKET, HEAD COVER 1
$69.56¢34 782
1
#21
5VY-1482K-00-00
PLATE
$4.28¢2 139
1
#22
5SL-14890-10-00
REED VALVE ASSY
$93.83¢46 914
1
#23
5VY-14899-00-00
CAP, CASE
$35.44¢17 722
1
#24
90110-06178-00
BOLT, HEXAGON SOCKET HEAD
$2.24¢1 121
1
#25
90109-066F0-00
BOLT
$6.99¢3 496
1
#26
5VY-1111G-00-00
RUBBER, MOUNT 1
$11.73¢5 865
1
#27
99530-10114-00
PIN,DOWEL
$2.50¢1 248
1
#28
2D1-11026-00-00
BOLT, MOUNT
$64.16¢32 079
1
