STARTER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

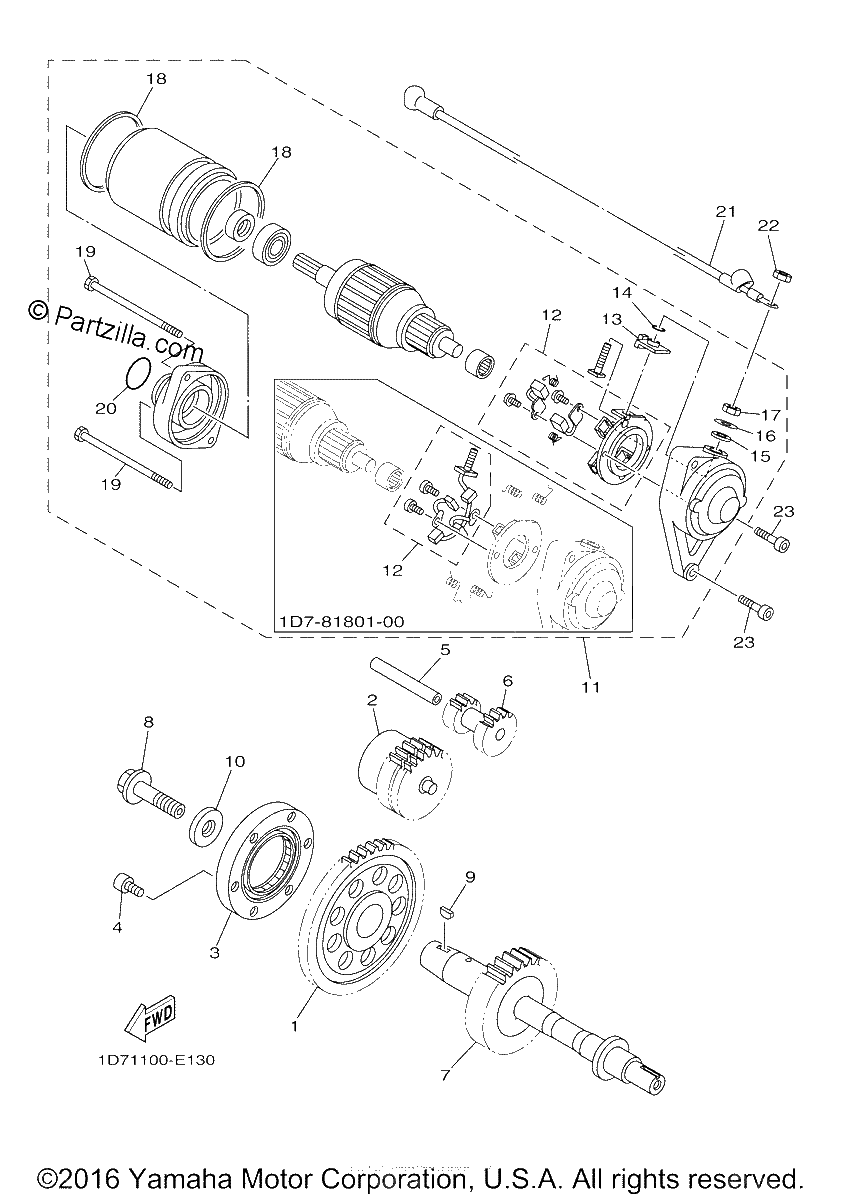

Diagrama de STARTER

Repuestos

#0
2S3-81801-00-00
BRUSH SET
$78.29¢39 146
1
#0
1D7-81890-01-00
MOTOR ASSY
$308.04¢154 020
1
#1
1D7-15515-00-00
GEAR 3
$190.96¢95 479
1
#2
1D7-15560-10-00
DAMPER ASSY
$607.67¢303 836
1
#3
4WM-15590-00-00
STARTER ONE-WAY ASSY
$328.35¢164 174
1
#4
91317-08016-00
BOLT (replaces 90110-08053-00)
$6.75¢3 375
1
#5
1D7-15521-00-00
SHAFT 1
$9.17¢4 583
1
#6
1D7-15512-00-00
GEAR, IDLER 1
$166.30¢83 151
1
#7
1D7-15659-00-00
SHAFT
$231.31¢115 655
1
#8
90105-12005-00
BOLT, FLANGE
$24.31¢12 156
1
#9
90280-05001-00
KEY, WOODRUFF (replaces 90280-05048-00)
$12.91¢6 457
1
#10
90201-12008-00
WASHER, PLATE
$12.22¢6 112
1
#11
1D7-81890-01-00
MOTOR ASSY
$308.04¢154 020
1
#12
1D7-81801-00-00
BRUSH SET
$77.21¢38 606
1
#13
5PX-8182G-00-00
BUSH, TERMINAL
$7.16¢3 582
1
#14
93210-06632-00
O-Ring
$7.30¢3 651
1
#15
5PX-8181L-00-00
WASHER, PLAIN
$2.37¢1 185
1
#16
90201-06726-00
WASHER, PLATE
$3.15¢1 576
1
#17
95380-06700-00
NUT
$6.75¢3 375
1
#18
1D7-81861-00-00
GASKET
$13.70¢6 848
1
#19
5PX-81846-00-00
SCREW
$5.58¢2 789
1
#20
93210-25711-00
O-Ring
$6.55¢3 278
1
#21
1D7-8183G-00-00
CORD COMP.
$138.87¢69 437
1
#22
95380-06700-00
NUT
$6.75¢3 375
1
#23
91314-06025-00
BOLT, HEXAGON SOCKET HEAD
$7.30¢3 651
1
