CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

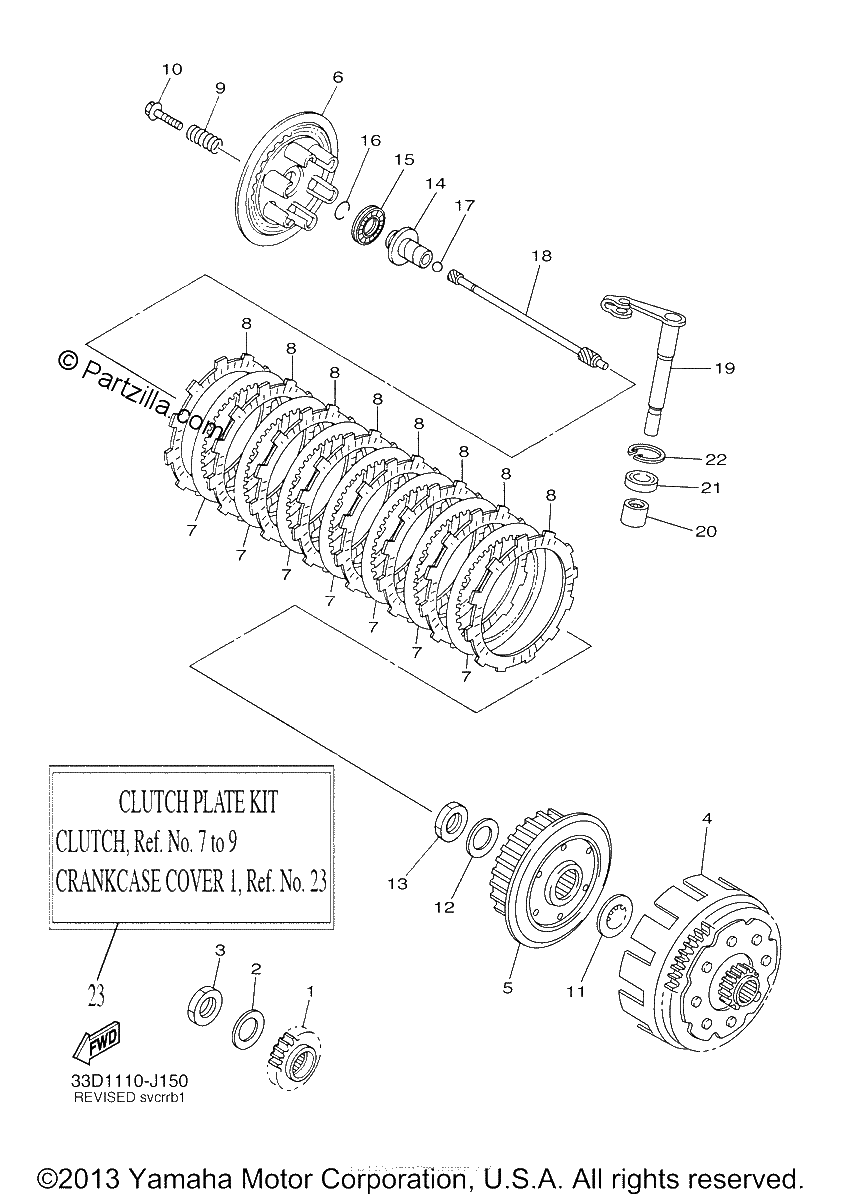

Diagrama de CLUTCH

Repuestos

#1
2S2-16111-60-00
GEAR, PRIMARY DRIVE
$174.34¢87 169
1
#2
90208-20008-00
WASHER,CONICAL SPR
$8.24¢4 119
1
#3
90170-20255-00
NUT,HEXAGON
$10.46¢5 231
1
#4
5XD-16150-60-00
PRIMARY DRIVEN GEAR COMP.
$721.31¢360 656
1
#5
5TA-16371-20-00
BOSS, CLUTCH
$147.43¢73 713
1
#6
2S2-16351-01-00
PLATE, PRESSURE 1
$98.20¢49 100
1
#7
4X7-16325-00-00
PLATE,CLUTCH 2
$18.69¢9 344
1
#8
5TA-16321-00-00
PLATE, FRICTION
$27.41¢13 706
1
#9
90501-230E4-00
SPRING, COMPRESSION
$9.91¢4 956
1
#10
90159-06010-00
SCREW, WITH WASHER
$7.80¢3 900
1
#11
5XD-16154-00-00
PLATE, THRUST 1
$15.59¢7 794
1
#12
90208-20008-00
WASHER,CONICAL SPR
$8.24¢4 119
1
#13
90170-20255-00
NUT,HEXAGON
$10.46¢5 231
1
#14
33D-16356-00-00
ROD, PUSH 1
$75.11¢37 556
1
#15
93340-21209-00
BEARING, TRUST
$17.41¢8 706
1
#16
93440-10085-00
CIRCLIP
$7.34¢3 669
1
#17
93511-32027-00
BALL
$7.34¢3 669
1
#18
2S2-16357-00-00
ROD, PUSH 2
$76.35¢38 175
1
#19
33D-16381-00-00
PUSH LEVER COMP.
No Disponible
1
#20
93317-11287-00
BEARING
$24.40¢12 200
1
#21
93102-12224-00
OIL SEAL
$9.94¢4 969
1
#22
99009-20500-00
CIRCLIP
$1.46¢731
1
#23
33D-W001G-00-00
CLUTCH PLATE KIT
No Disponible
1
