CRANKCASE COVER 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

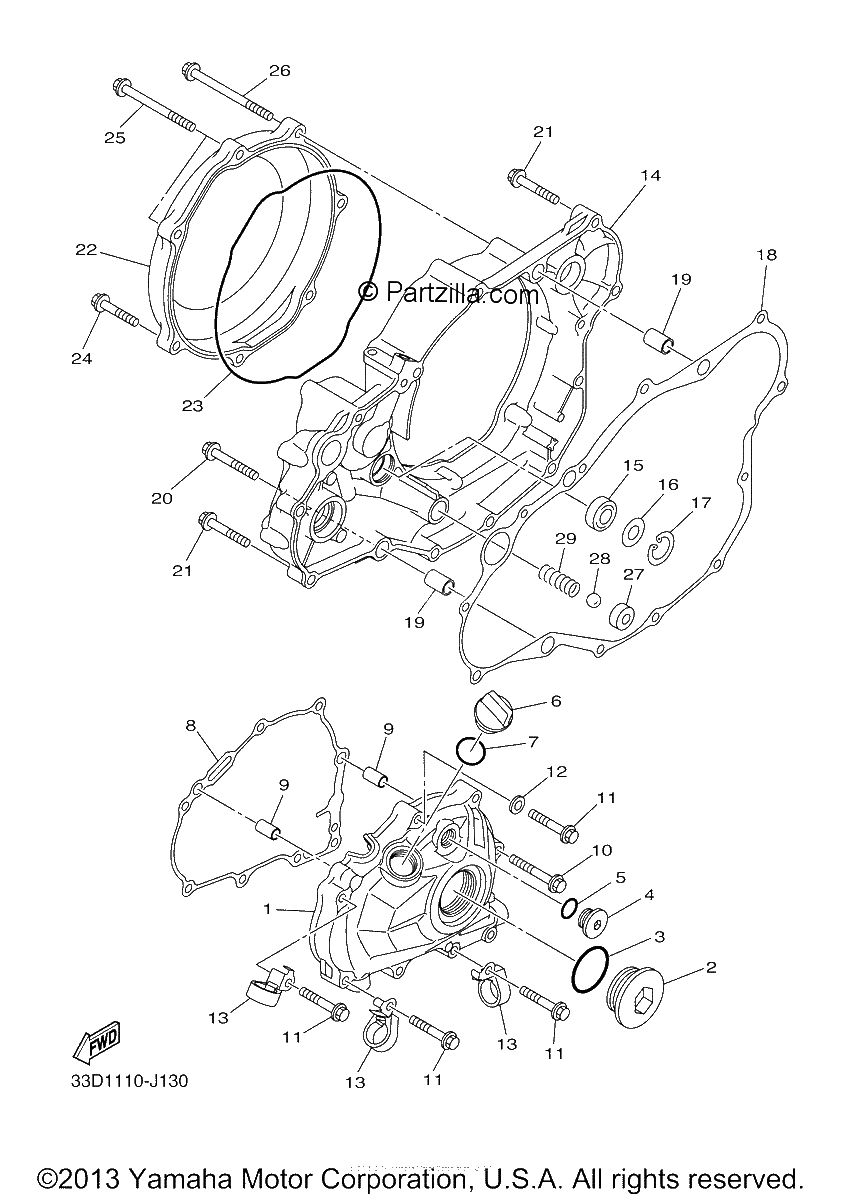

Diagrama de CRANKCASE COVER 1

Repuestos

#1
33D-15411-00-00
COVER, CRANKCASE 1
$227.91¢113 953
1
#2
90340-36002-00
PLUG, STRAIGHT SCREW
$14.66¢7 331
1
#3
93210-357A3-00
O-RING
$0.54¢270
1
#4
90340-14011-00
PLUG, STRAIGHT SCREW
$21.61¢10 804
1
#5
93210-14369-00
O-Ring
$6.36¢3 180
1
#6
3Y1-15363-10-00
PLUG, OIL
$18.72¢9 361
1
#7
93210-19123-00
O-Ring
$7.58¢3 789
1
#8
33D-15451-00-00
GASKET, CRANKCASE COVER 1 | INCL. IN BOTTOM END KIT
$15.65¢7 826
1
#9
91808-16023-00
PIN, DOWEL
$6.18¢3 088
1
#10
95022-06040-00
Bolt, Flange
$3.29¢1 644
1
#11
95022-06030-00
BOLT, FLANGE
$1.54¢771
1
#12
90430-06014-00
GASKET
$7.59¢3 795
1
#13
2S2-15378-00-00
HOLDER
$11.36¢5 681
1
#14
33D-15431-00-00
COVER, CRANKCASE 3
$266.57¢133 285
1
#15
93101-14164-00
OIL SEAL
$10.63¢5 313
1
#16
90201-15701-00
WASHER, PLATE (T=1.0)
$6.75¢3 375
1
#17
99009-22500-00
CIRCLIP
$6.76¢3 381
1
#18
33D-15462-00-00
GASKET, CRANKCASE COVER 3 | INCL. IN BOTTOM END KIT
$25.52¢12 759
1
#19
91812-16001-00
PIN, DOWEL
$5.66¢2 829
1
#20
95022-06040-00
Bolt, Flange
$3.29¢1 644
1
#21
95022-06030-00
BOLT, FLANGE
$1.54¢771
1
#22
33D-15415-10-00
COVER, 1
$330.76¢165 382
1
#23
33D-15453-00-00
GASKET | INCL. IN BOTTOM END GASKET KIT
$27.01¢13 507
1
#24
95022-06025-00
BOLT, FLANGE
$1.61¢805
1
#25
95022-06070-00
BOLT, FLANGE
$2.21¢1 104
1
#26
95022-06080-00
BOLT, FLANGE (replaces 9502L-06080-00)
$3.86¢1 932
1
#27
583-13113-00-00
SEAT, CHECK BALL
$22.61¢11 305
1
#28
93503-08007-00
BALL
$2.64¢1 322
1
#29
90501-043E0-00
SPRING, COMPRESSION
$3.99¢1 995
1
