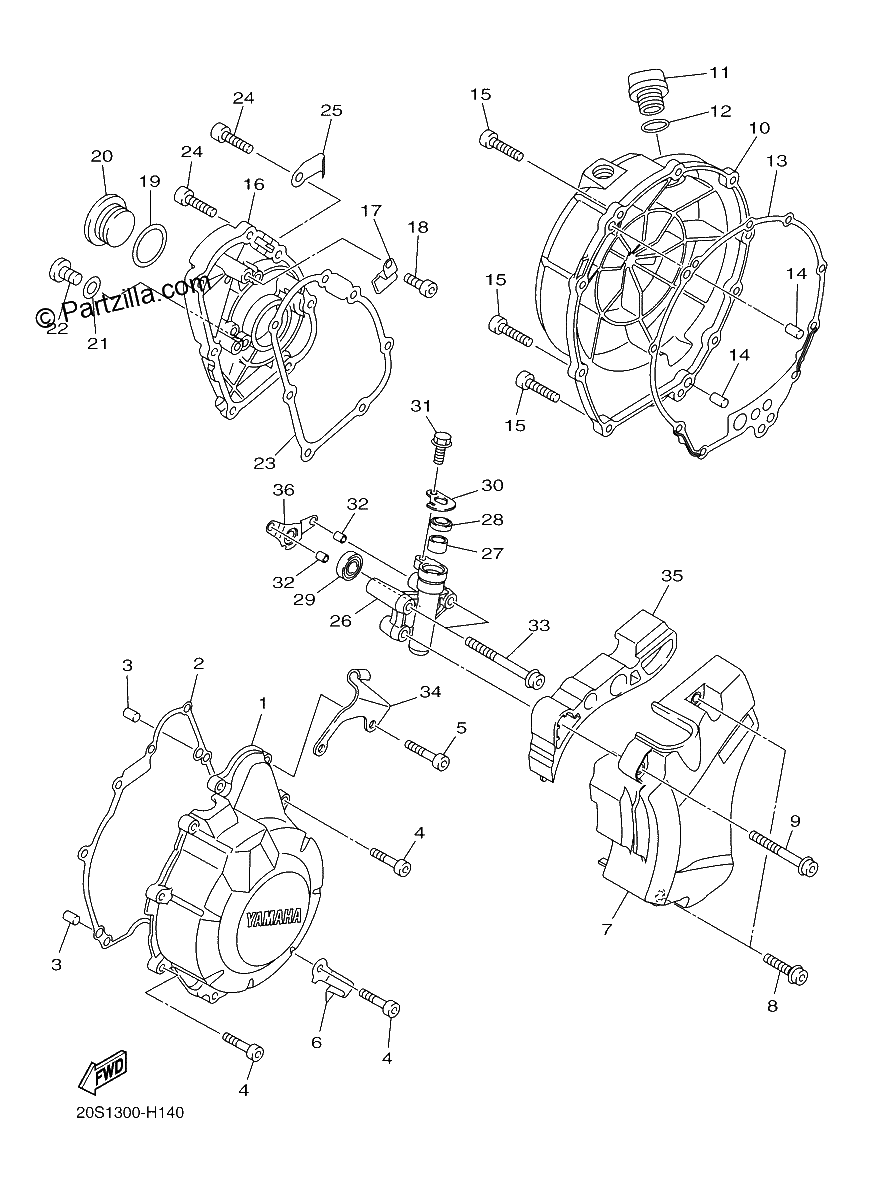

CRANKCASE COVER 1
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
COVER, CRANKCASE 1
$193.99¢96 994
#2
GASKET, CRANKCASE COVER 1
$19.80¢9 900
#3
PIN, DOWEL
$6.25¢3 125
#4
BOLT, HEXAGON SOCKET HEAD
$7.94¢3 969
#5
BOLT, HEXAGON SOCKET HEAD
$7.34¢3 669
#6
CLAMP
$13.86¢6 931
#7
COVER, CHAIN CASE
$68.05¢34 025
#8
BOLT, HEXAGON SOCKET HEAD
$6.54¢3 269
#9
BOLT, HEXAGON SOCKET HEAD
$5.53¢2 763
#10
COVER, CRANKCASE 2
$113.47¢56 738
#11
PLUG, OIL LEVEL
$22.93¢11 463
#12
O-Ring
$8.21¢4 106
#13
GASKET, CRANKCASE COVER 2
$29.15¢14 575
#14
PIN, DOWEL
$2.88¢1 438
#15
BOLT, HEXAGON SOCKET HEAD
$7.94¢3 969
#16
COVER, OIL PUMP
$119.15¢59 575
#17
CLAMP
$4.49¢2 244
#18
BOLT (4MY)
$1.46¢731
#19
O-Ring
$6.88¢3 438
#20
PLUG, STRAIGHT SCREW
$29.71¢14 856
#21
GASKET
$3.67¢1 838
#22
BOLT, BUTTON HEAD
$7.94¢3 969
#23
GASKET, OIL PUMP COVER 1
$13.14¢6 569
#24
BOLT, HEXAGON SOCKET HEAD
$2.44¢1 219
#25
CLAMP
$9.81¢4 906
#26
COVER, GENERATOR 2
$157.06¢78 531
#27
BEARING
$47.73¢23 863
#28
OIL SEAL
$9.94¢4 969
#29
OIL SEAL
$6.76¢3 381
#30
PLATE, SEAT
$8.79¢4 394
#31
BOLT, FLANGE
$3.14¢1 569
#32
PIN, DOWEL
$3.33¢1 663
#33
BOLT, HEXAGON SOCKET HEAD
$7.63¢3 813
#34
HOLDER, CLUTCH CABLE
$27.60¢13 800
#35
GUIDE, INLET
$44.52¢22 263
#36
PROTECTER, OIL SEAL
$14.92¢7 462
