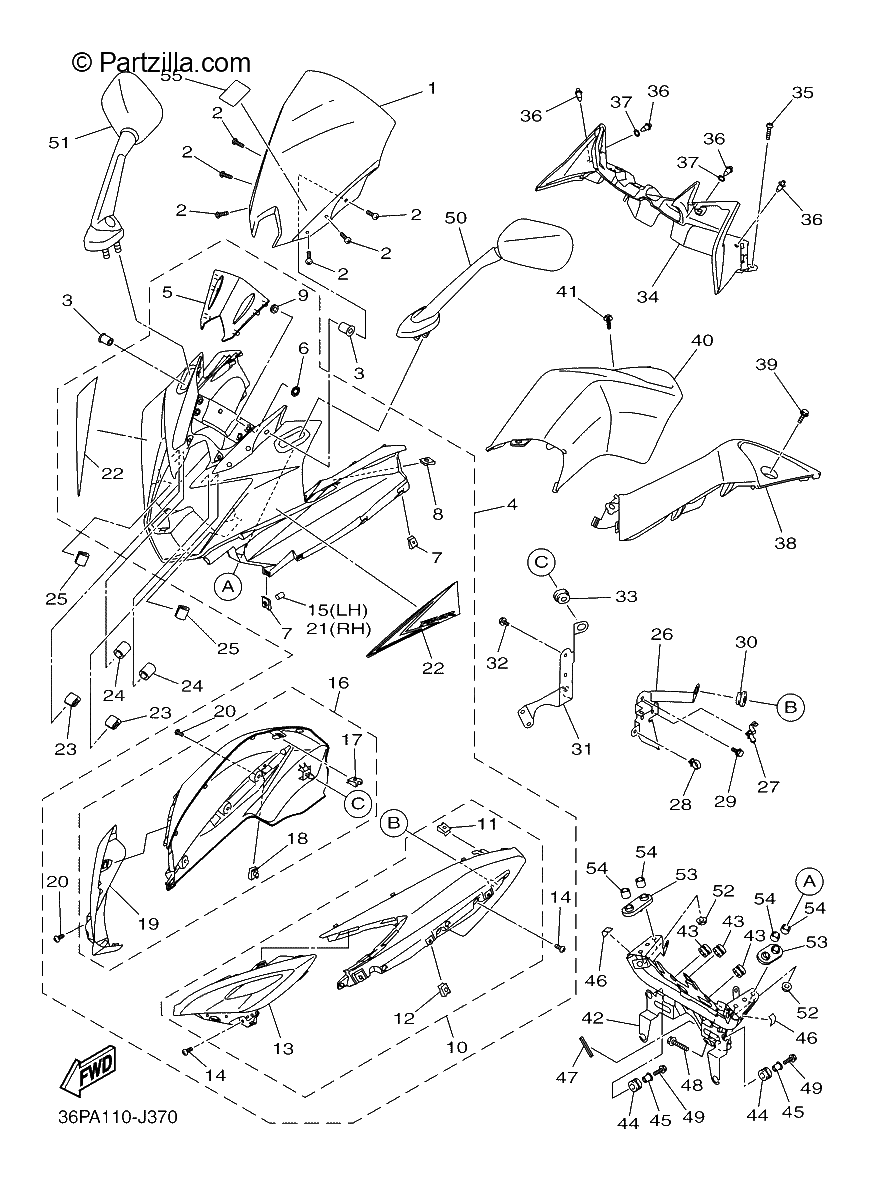

COWLING 1
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
WINDSHIELD
$152.11¢76 055
#2
SCREW,ROUND HEAD
$3.06¢1 529
#3
NUT
$6.23¢3 117
#4
BODY, FRONT UPPER 1 (BLUISH WHITE COCKTAIL 1) *{UR BWC1 (B COLOR) (PEARL WHITE/VIVID MAGENTA)}*
$1061.43¢530 714
#5
COVER, METER
$23.61¢11 805
#6
NUT, SPRING
$0.46¢230
#7
NUT, SPRING
$1.15¢575
#8
NUT, SPRING
$2.60¢1 299
#9
DAMPER
$5.93¢2 967
#10
BOX SUB ASSY
$130.73¢65 366
#11
NUT, SPRING
$2.60¢1 299
#12
NUT, SPRING
$7.30¢3 651
#13
GRILL, AIR INTAKE 1
$39.15¢19 573
#14
TAPPING SCREW
$2.17¢1 087
#15
HOSE (L10)
$5.89¢2 944
#16
BOX SUB ASSY
$119.09¢59 547
#17
NUT, SPRING
$2.60¢1 299
#18
NUT, SPRING
$7.30¢3 651
#19
GRILL, AIR INTAKE 2
$44.37¢22 184
#20
TAPPING SCREW
$2.17¢1 087
#21
HOSE (L10)
$5.89¢2 944
#23
TRIM
$3.29¢1 644
#24
HOSE
$3.58¢1 788
#25
MOLE, SIDE COVER 1
$23.17¢11 586
#26
BRACKET 5
$24.21¢12 104
#27
CLAMP
$9.12¢4 560
#28
CLAMP
$6.75¢3 375
#29
Bolt, Flange
$1.64¢822
#30
Grommet
$4.31¢2 156
#31
BRKT 6
$23.20¢11 598
#32
Bolt, Flange
$1.64¢822
#33
Grommet
$4.31¢2 156
#34
PANEL, INNER 1
$95.04¢47 518
#35
BOLT, HEX. SOCKET BUTTON
$6.83¢3 415
#36
RIVET
$8.10¢4 048
#37
WASHER, PLATE
$6.73¢3 364
#38
PANEL, INNER 2
$37.40¢18 699
#39
BOLT, HEX. SOCKET BUTTON
$6.83¢3 415
#40
PANEL, INNER 3
$37.40¢18 699
#41
BOLT, HEX. SOCKET BUTTON
$6.83¢3 415
#42
STAY 1
$261.46¢130 732
#43
Damper
$7.04¢3 519
#44
GROMMET
$8.21¢4 105
#45
COLLAR
$8.49¢4 244
#46
DAMPER 5
$3.48¢1 742
#47
MOLE 4
$5.78¢2 892
#48
BOLT,FLANGE
$3.19¢1 593
#49
Bolt, Flange
$1.61¢805
#50
REAR VIEW MIRROR ASSY (LEFT)
$103.66¢51 830
#51
REAR VIEW MIRROR ASSY (RIGHT)
$131.88¢65 941
#52
NUT, FLANGE
$2.24¢1 121
#53
PLATE, MIRROR FITTING 1
$4.69¢2 346
#54
COLLAR (J45)
$5.45¢2 726
#55
LABEL, NOTICE WINDSHIELD 1
$8.21¢4 105
